Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OZ-SH-124LM1,294RELAY GEN PURPOSE SPST 16A 24V |
2,755 |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

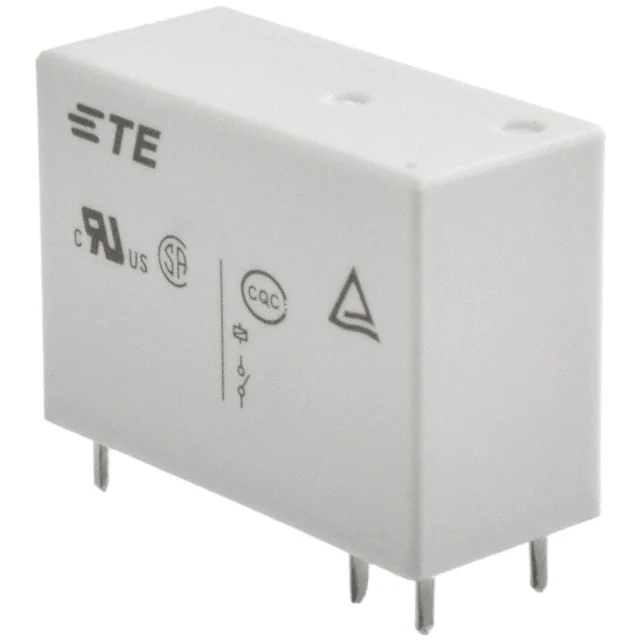

OZ-SS-105LM1,200RELAY GEN PURPOSE SPST 16A 5V |
4,627 |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMI-SH-105L,394RELAY GEN PURPOSE SPDT 10A 5V |
1,870 |
|
- |
OMI, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 108 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-105D,394RELAY GEN PURPOSE SPDT 16A 5V |
2,471 |
|
Datasheet | OMIH, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 144 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-124LM,394RELAY GEN PURPOSE SPST 16A 24V |
1,746 |
|
Datasheet | OMIH, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC | - | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-112DM,394RELAY GEN PURPOSE SPST 16A 12V |
4,314 |
|
Datasheet | OMIH, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC | - | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OZT-SH-124LM1,294RELAY GEN PURPOSE SPST 8A 24V |
3,336 |
|
Datasheet | OZT, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
9400-01Q1999RELAY GEN PURPOSE SPST 25A 24V |
2,737 |
|
Datasheet | 9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 25 A | 277VAC - Max | 6925VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | General Purpose | - | - |
|
|
9400-13Q1999RELAY GEN PURPOSE SPDT 18A 24V |
2,677 |
|
Datasheet | 9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | General Purpose | - | - |
|
38-S112C4999RELAY GEN PURPOSE SPST 35A 495V |
4,174 |
|
Datasheet | 38, Products Unlimited | Bulk | Active | Chassis Mount | 495VAC | SPST-NC (1 Form B) | 35 A | 277VAC - Max | - | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 268 VAC | 60 VAC | - | - | - | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
