Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-R2Y2-J5.0KRELAY GEN PURPOSE DPDT 3A 24V |
2,760 |
|
Datasheet | R10 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 20.5 VDC | 0.12 VDC | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
OZF-S-124LM1P,300RELAY GEN PURPOSE SPST 16A 24V |
3,820 |
|
Datasheet | OZF, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 30VDC - Max | 3840VA, 480W | 21.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KHAU-11D11-12RELAY GEN PURPOSE DPDT 3A 12V |
1,821 |
|
Datasheet | KHA | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 240VAC - Nom | - | 75 mA | Non Latching | - | Plug In | - | Class B | 9 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
KHAU-17D12-48RELAY GEN PURPOSE 4PDT 5A 48V |
4,645 |
|
Datasheet | KHA | Tray | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-124D,394RELAY GEN PURPOSE SPDT 16A 24V |
4,763 |
|
Datasheet | OMIH, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 29.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
V23061A1007A402RELAY GEN PURPOSE SPST 8A 24V |
4,881 |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

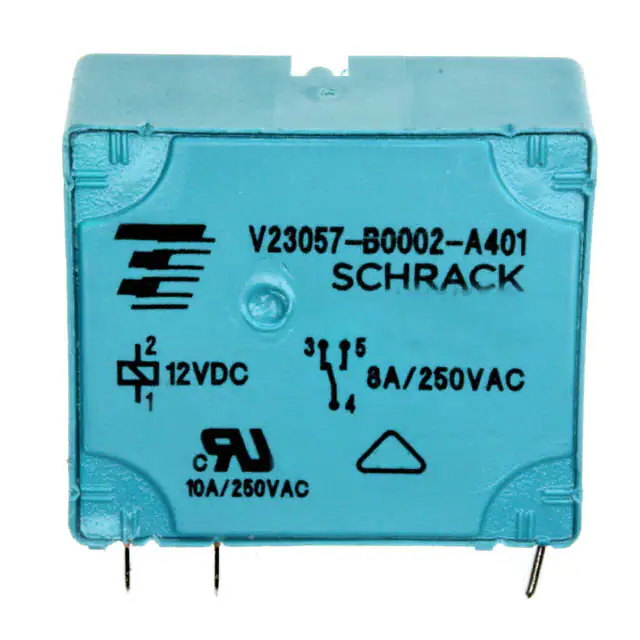

V23057B 2A401RELAY GEN PURPOSE SPDT 8A 12V |
1,116 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
OZ-SH-105LM1,294RELAY GEN PURPOSE SPST 16A 5V |
1,937 |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OZ-SS-112L,200RELAY GEN PURPOSE SPDT 16A 12V |
1,339 |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
OZ-SH-112LM1,294RELAY GEN PURPOSE SPST 16A 12V |
3,886 |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
