Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRD-3DR4-125RELAY GEN PURPOSE SPST 50A 125V |
4,466 |
|
Datasheet | PRD | Bulk | Obsolete | Chassis Mount | 125VDC | SPST-NO (DM) (1 Form X) | 50 A | 600VAC, 125VDC - Nom | - | 16 mA | Non Latching | - | Screw Terminal | - | Class B | 93.75 VDC | 12.5 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | General Purpose | - | - |
|
|
R10-E2520-2RELAY GEN PURP |
3,324 |
|
Datasheet | R10 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6-1393810-9RELAY GEN PURPOSE DPDT 5A 20V |
2,225 |
|
Datasheet | V23154, AXICOM | Bulk | Obsolete | Through Hole | 20VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.9 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
1-1393808-9RELAY GEN PURPOSE DPDT 5A 72V |
1,089 |
|
Datasheet | V23154, AXICOM | Bulk | Obsolete | Socketable | 72VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 9.5 mA | Non Latching | - | Plug In | - | - | 48 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
V23054E1020F110RELAY GEN PURPOSE 4PDT 5A 24V |
3,382 |
|
Datasheet | V23054, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 1300W | 38 mA | Non Latching | - | Plug In | - | - | 15.5 VDC | - | 16 ms | 2 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
3100-30I17999RFRELAY CONTACTOR 60A |
3,606 |
|
- |
3100 | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7-1393807-3RELAY GEN PURP |
3,661 |
|
Datasheet | V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

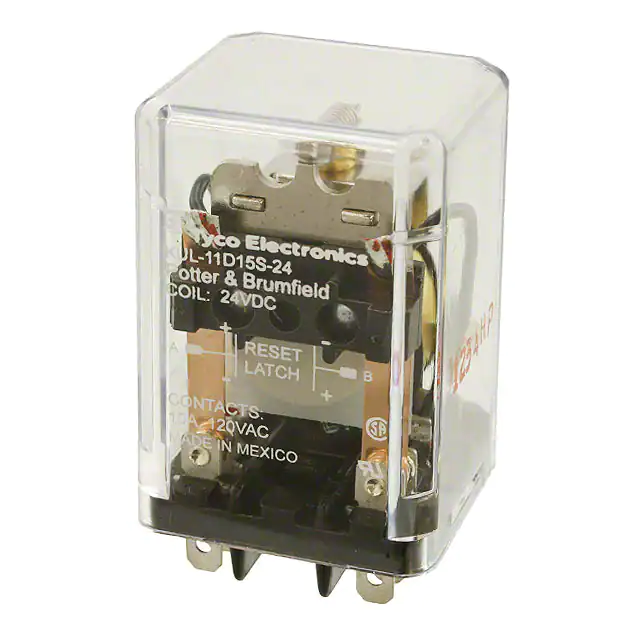

KUL-11D15S-24RELAY GEN PURPOSE DPDT 10A 24V |
1,252 |
|
Datasheet | KUL | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 50.8 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 25 ms | 25 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KBP-17DG-48RELAY GEN PURPOSE 4PDT 10A 48V |
2,764 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 56.5 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 36 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
9-1393812-4RELAY GEN PURP |
4,773 |
|
Datasheet | V23054, AXICOM | Bulk | Obsolete | Socketable | 32VDC | 4PDT (4 Form C) | 5 A | 250VAC, 260VDC - Max | 1250VA, 1300W | 30.5 mA | Non Latching | - | Plug In | - | - | 17.5 VDC | - | 16 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
