Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1415074-1RELAY GEN PURPOSE DPDT 8A 230V |
1,965 |
|
Datasheet | RT, SCHRACK | Tube | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 172.5 VAC | 34.5 VAC | - | - | -20°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T92P7D24-12RELAY GEN PURPOSE DPST 30A 12V |
3,351 |
|
Datasheet | T92 | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 139.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
PT2S7TD0RELAY GEN PURPOSE DPDT 12A 230V |
3,739 |
|
Datasheet | PT, SCHRACK | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 11.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

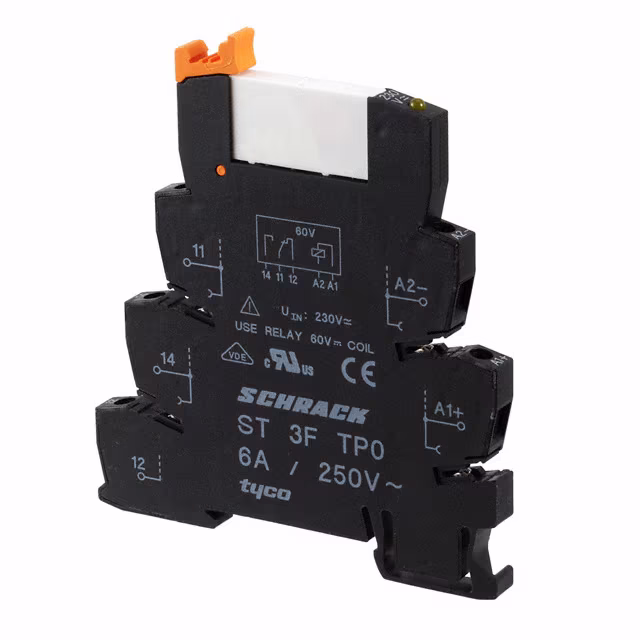

ST3P3TP0RELAY GEN PURPOSE SPDT 6A 230V |
3,593 |
|
Datasheet | SNR, SCHRACK | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 3.2 mA | Non Latching | Socket Included | Screw Terminal | Sealed - Fully | - | 160 VAC/DC | 15 VAC/DC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ST3P3LB2RELAY GEN PURPOSE SPDT 6A 12V |
3,177 |
|
Datasheet | SNR, SCHRACK | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | Socket Included | Screw Terminal | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRD-3DY0-24RELAY GEN PURPOSE SPST 25A 24V |
4,391 |
|
Datasheet | PRD | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 25 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | General Purpose | - | - |
|
ST3P2LC4RELAY GEN PURPOSE SPDT 6A 24V |
1,968 |
|
Datasheet | SNR, SCHRACK | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7 mA | Non Latching | Socket Included | Screw Terminal | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
K10P-11DT5-36RELAY GEN PURPOSE DPDT 15A 36V |
2,763 |
|
Datasheet | K10 | Bulk | Active | Chassis Mount | 36VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 25 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 27 VDC | 3.6 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
4-1415075-1RELAY GEN PURPOSE 4PDT 6A 230V |
2,808 |
|
Datasheet | PT, SCHRACK | Bulk | Active | DIN Rail | 230VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 11.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
GPFRELAY |
2,501 |
|
Datasheet | GP, AGASTAT | Bulk | Active | Socketable | 250VDC | 4PDT (4 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | 187 VDC | 25 VDC | 15 ms | 30 ms | 0°C ~ 60°C | Silver (Ag) | General Purpose | - | - |
