Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

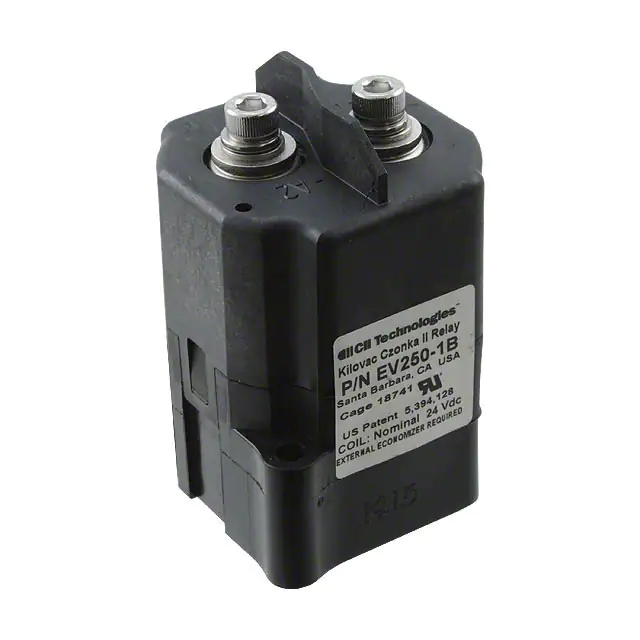

EV250-1BRELAY GEN PURPOSE SPST 400A 24V |
2,181 |
|
Datasheet | EV250, KILOVAC | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 400 A | 1800VDC - Max | - | 2 A | Non Latching | - | Stud | Sealed - Hermetically | - | 16.6 VDC | 2.4 VDC | 30 ms | 15 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
FCA-215-CY4RELAY DPDT 15A 28V |
1,685 |
|
Datasheet | FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | - | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 11.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1-1617037-8RELAY GEN PURPOSE DPDT 5A 24V |
4,796 |
|
Datasheet | HFW5A, CII | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | - | - | 60 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17 VDC | 1.4 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|

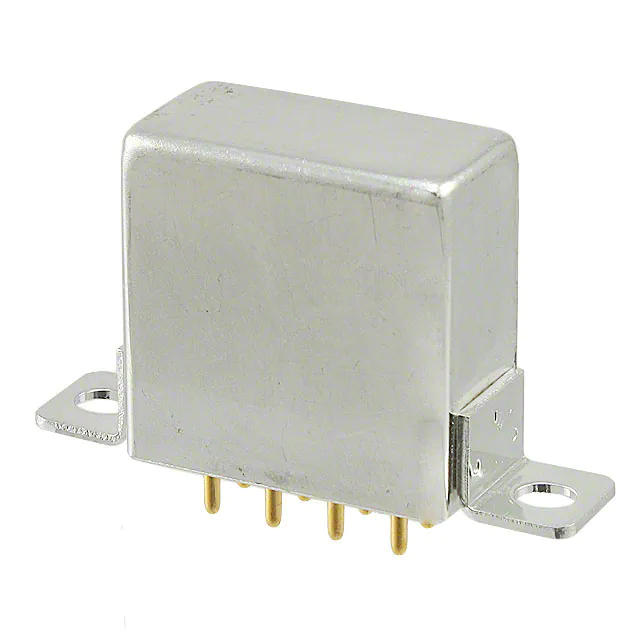

B07D934BC2-0052RELAY GEN PURPOSE DPDT 10A 26.5V |
1,928 |
|
Datasheet | 07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-5757/23 |
|
1423156-1RELAY GEN PURPOSE SPDT 10A 120V |
2,251 |
|
Datasheet | GP, AGASTAT | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | 102 VAC | - | 18 ms | - | 0°C ~ 60°C | Silver (Ag) | General Purpose | - | - |
|
FCA-210-CX9RELAY GEN PURPOSE DPDT 10A 115V |
3,490 |
|
Datasheet | FCA-210, CII | Bulk | Active | Chassis Mount | 115VAC | DPDT (2 Form C) | 10 A | - | - | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 95 VAC | 5 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
CV-1981-PID-S-BRSH230VCV-1981-PID-S-BRSH230V |
2,360 |
|
- |
CV | Bulk | Active | - | 230VAC | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
HFC5A1201K00HFC5A1201K00 = HFC5A COMMERCIA |
2,427 |
|
Datasheet | HFC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
1-1617019-3FW1102G11 = SUPERCEDES 3SAF208 |
4,523 |
|
- |
FW, CII | Bulk | Discontinued at Digi-Key | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 3 A | - | - | 39.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.47 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW4A1231D00HFW4A1231D00 = HFW4A RELAY |
2,532 |
|
Datasheet | HFW4A, CII | Bulk | Active | Through Hole | 26.5 ~ 32VDC | DPDT (2 Form C) | 4 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | General Purpose | - | - |
