Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1617005-3B07Z999BZ1-0249 = RELAY. |
4,271 |
|
Datasheet | 07, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 105.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.7 VDC | 1.15 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
3-1617530-3FW1146S06=FW RELAY |
4,312 |
|
- |
FW, CII | Bulk | Active | Chassis Mount | - | DPDT (2 Form C) | 3 A | - | - | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617787-2FCB-405-0513M=M83536/5-013M |
3,747 |
|
Datasheet | FCB-405, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 153.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 6 ms | 6 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
FCA-125-AY2FCA-125-AY2 |
4,798 |
|
Datasheet | FCA-125, CII | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 150 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
3-1617022-9FW5A1201S19 = FW5A RELAY |
4,599 |
|
Datasheet | FW, CII | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1617798-7FCA-210-406=RELAY |
3,751 |
|
Datasheet | FCA-210, CII | Bulk | Active | Through Hole | 28VAC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 180 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 22 VAC | 1.25 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

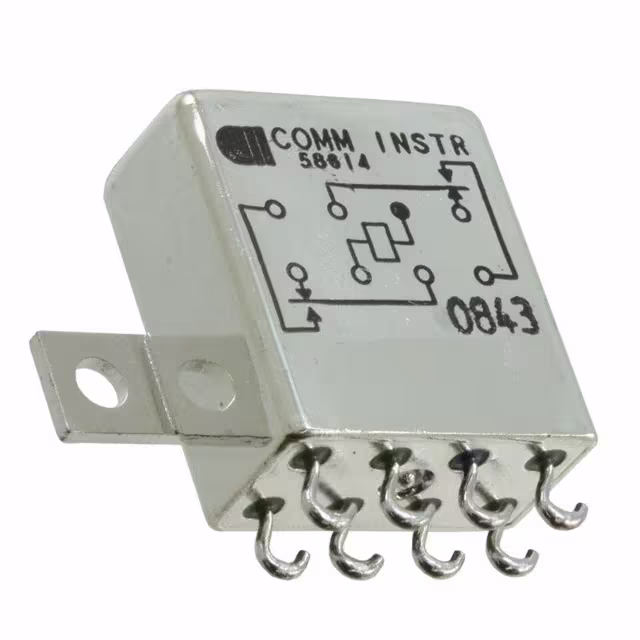

2-1617022-1RELAY GEN PURPOSE DPDT 5A 26.5V |
3,362 |
|
Datasheet | FW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 5 A | - | - | 44.2 mA | Non Latching | - | Solder Hook | - | - | 13 VDC | 1.5 VDC | 6 ms | 3 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
8-1617749-7FCA-210-176 |
4,558 |
|
Datasheet | FCA-210, CII | Bulk | Active | Through Hole | 28VAC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 180 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 22 VAC | 1.25 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
3-1617002-8RELAY 10A 115V |
3,845 |
|
Datasheet | 07, CII | Bulk | Active | Panel Mount | 115VDC | DPDT (2 Form C) | 10 A | 115VAC, 30VDC - Nom | - | 15.3 mA | Non Latching | - | Solder Hook | - | - | 63 VDC | 5 VDC | 13 ms | 5 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MS27247 |
|
|
2-1617020-1FW1205S05 = SUPERCEDES 3SBK108 |
3,116 |
|
Datasheet | FW, CII | Bulk | Active | Chassis Mount | - | DPDT (2 Form C) | 3 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
