Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

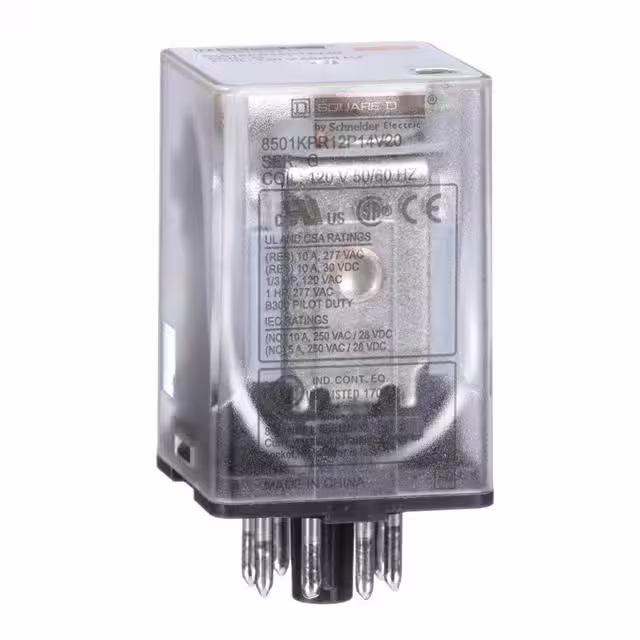

8501KPR12P14V20PLUG IN RELAY, TYPE KP, TUBULAR, |
3,009 |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8501KPDR13V53RELAY 3CO CYL PIN 6.6A@240V 24VD |
3,364 |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

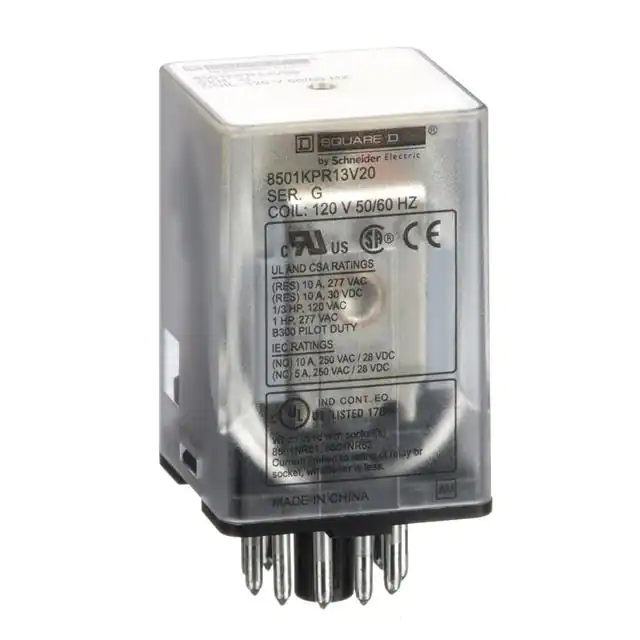

8501KPR13V20PLUG IN RELAY, TYPE KP, TUBULAR, |
3,493 |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

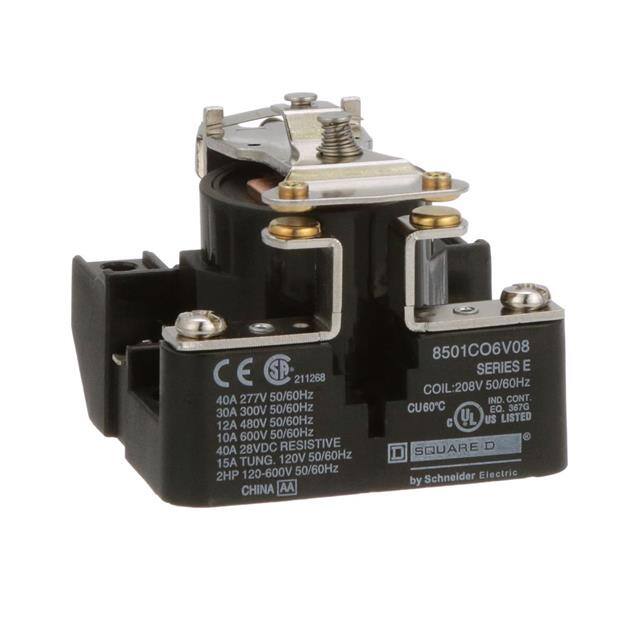

8501CO6V08POWER RELAY, TYPE C, 2.0 HP, 30A |
3,890 |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
8501KPR13V14RELAY 3CO CYL PIN 6.6A@240V 24VA |
1,324 |
|
Datasheet | Square D 8501K | Box | Active | Chassis Mount | 24VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8501CO8V20POWER RELAY, TYPE C, 2.0 HP, 30A |
3,529 |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO7V24POWER RELAY, TYPE C, 2 HP, 30A R |
3,844 |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO7V20POWER RELAY, TYPE C, 2 HP, 30A R |
3,758 |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
199DBX-16OPEN PWR RY, SPST-NO-DM, 40A, 48 |
4,675 |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 48VDC | SPST-NO (DM) (1 Form X) | 40 A | 600VDC - Max | 24000W | 40 mA | Non Latching | - | Screw Terminal | - | - | 40.8 VDC | 4.8 VDC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
8501CO7V14POWER RELAY, TYPE C, 2 HP, 30A R |
3,786 |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
