Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2900890VARIOFACE OUTPUT MODULE WITH 8 |
3,001 |
|
- |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 1250W | 18 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 21.6 VDC | - | 9 ms | 6 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2956026RELAY GEN PURPOSE SPDT 120V |
4,787 |
|
Datasheet | EMG17-REL | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 95W | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 6 ms | 11 ms | - | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2960630RELAY GEN PURPOSE SPDT 16A 24V |
3,258 |
|
Datasheet | - | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 20.9 mA | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2960698RELAY GEN PURPOSE DPDT 5A 24V |
4,930 |
|
Datasheet | - | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 21 mA | Non Latching | - | PC Pin | - | - | - | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
2980461RELAY GEN PURPOSE DPDT 6A 24V |
4,929 |
|
Datasheet | PLC-RSC | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2966524RELAY GEN PURPOSE SPDT 6A 120V |
3,748 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2949994RELAY GEN PURPOSE SPST 10A 24V |
1,687 |
|
Datasheet | EMG17-REL | Bulk | Obsolete | DIN Rail | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 28 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 13 ms | 15 ms | -20°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2952172RELAY GEN PURPOSE DPDT 3A 24V |
3,908 |
|
Datasheet | EMG 45-REL | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 250VDC - Max | - | 31 mA | Non Latching | Diode, Socket Included | Screw Terminal | - | - | - | - | 14 ms | 16 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2834067RELAY GEN PURPOSE DPDT 10A 120V |
1,483 |
|
Datasheet | REL-IR | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | - | 10 ms | 12 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|

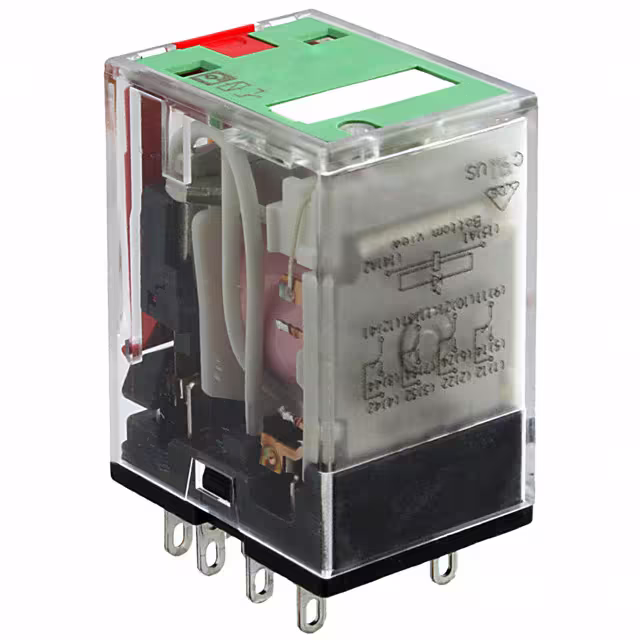

2834135RELAY GEN PURPOSE 4PDT 5A 120V |
2,688 |
|
Datasheet | REL-IR | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | - | Plug In | - | - | - | - | 10 ms | 12 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
