Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2823625RELAY GEN PURPOSE SPST 6A 24V |
2,794 |
|
Datasheet | - | Bulk | Active | Socketable | 24VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 21 mA | Non Latching | - | Plug In | - | - | - | - | 7 ms | 11 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2941455RELAY GEN PURPOSE DPDT 5A 120V |
1,583 |
|
Datasheet | - | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
2947718RELAY GEN PURPOSE DPDT 24V |
2,532 |
|
Datasheet | - | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | - | - | - | - | Non Latching | Socket Included | - | - | - | - | - | - | - | - | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

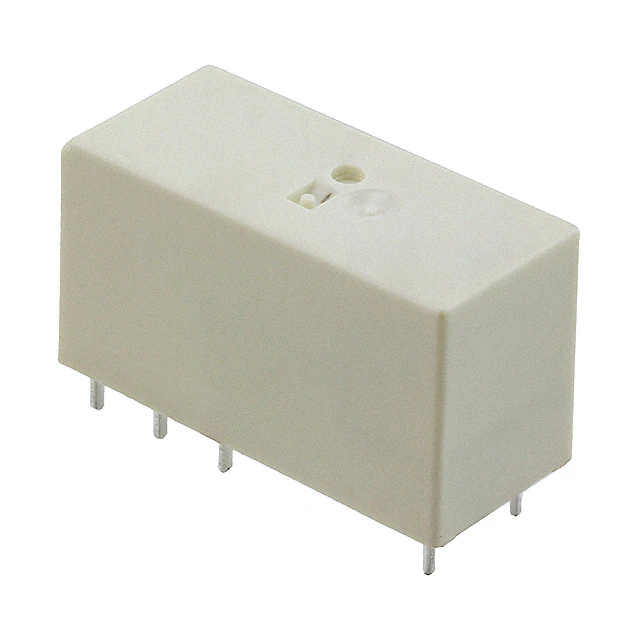

2961532RELAY GEN PURPOSE SPDT 16A 12V |
2,908 |
|
Datasheet | REL-MR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
2903313RELAY GEN PURPOSE DPDT 8.5A 24V |
2,960 |
|
Datasheet | RIF | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8.5 A | 250VAC, 250VDC - Max | - | 70 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1136245RELAY GEN PURPOSE DPDT 6A 230V |
1,703 |
|
Datasheet | PLC-RPT | Box | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | 60 VAC | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

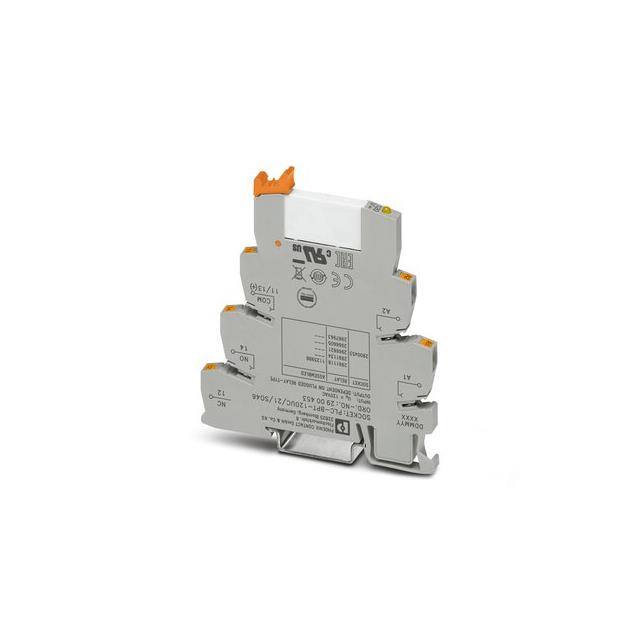

1125988RELAY GEN PURPOSE SPDT 6A 120V |
2,113 |
|
Datasheet | - | Box | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 8 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1136244RELAY GEN PURPOSE DPDT 6A 120V |
3,819 |
|
Datasheet | PLC-RPT | Box | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2966249RELAY GEN PURPOSE SPST 6A 120V |
4,713 |
|
Datasheet | PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPST-NC (1 Form B) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

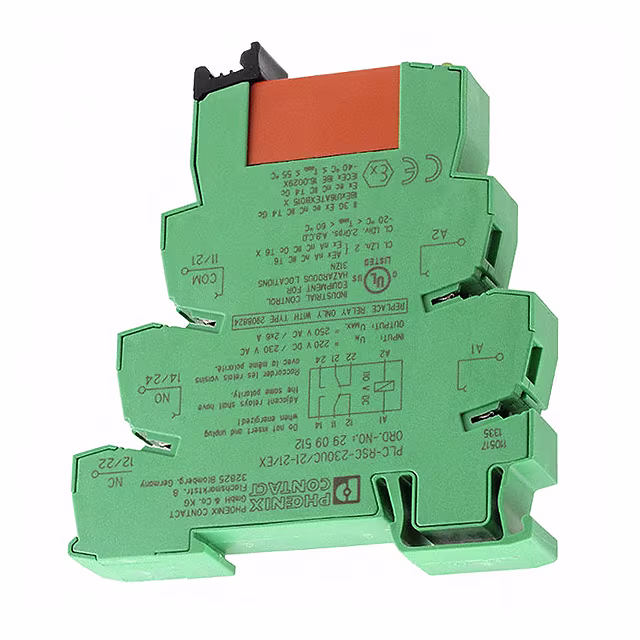

2909512RELAY GEN PURPOSE DPDT 6A 230V |
2,946 |
|
Datasheet | PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
