Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2909511RELAY GEN PURPOSE DPDT 6A 120V |
2,852 |
|
Datasheet | PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

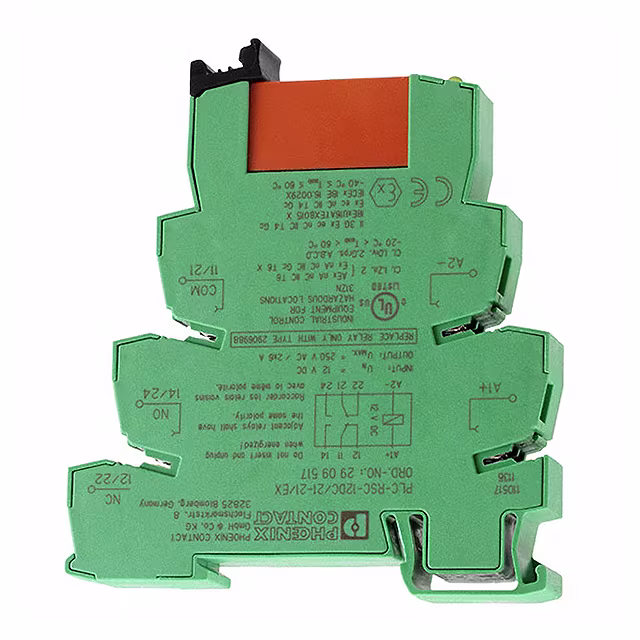

2909517RELAY GEN PURPOSE DPDT 6A 12V |
2,765 |
|
Datasheet | PLC-RSC | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2909513RELAY GEN PURPOSE DPDT 6A 12V |
2,811 |
|
Datasheet | PLC-RPT | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1094760RELAY GEN PURPOSE SPST 6A 12V |
4,371 |
|
Datasheet | - | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 1 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 7 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1094767RELAY GEN PURPOSE SPST 6A 24V |
3,705 |
|
Datasheet | - | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 1 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 7 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1079404RELAY GEN PURPOSE SPDT 10A 230V |
4,904 |
|
Datasheet | PLC-RPT | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 16 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 10 ms | 8 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1079402RELAY GEN PURPOSE SPDT 10A 230V |
4,677 |
|
Datasheet | PLC-RSC | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 16 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 10 ms | 8 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1079387RELAY GEN PURPOSE DPDT 6A 230V |
4,358 |
|
Datasheet | PLC-RSC | Box | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 16 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 10 ms | 8 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

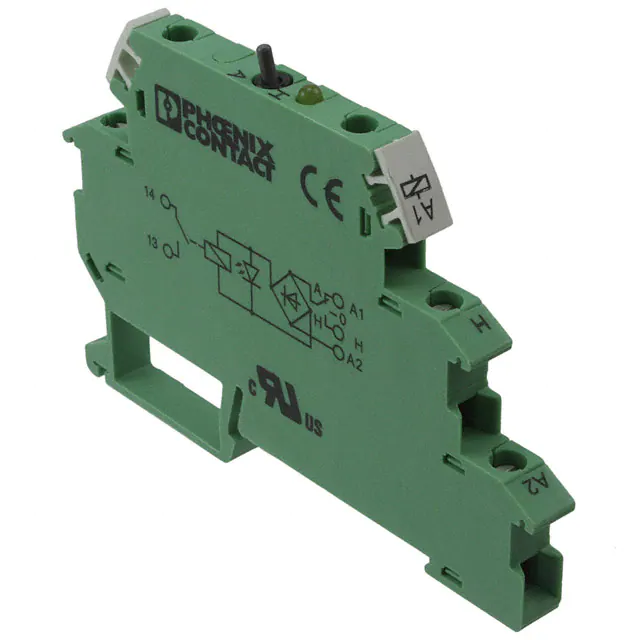

2964131RELAY GEN PURPOSE SPST 3A 24V |
4,015 |
|
Datasheet | - | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 3 A | 250VAC, 250VDC - Max | - | 6.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
2908180REL-MR-BL-24DC/21HC/MS |
4,211 |
|
Datasheet | REL-MR | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 17 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | - | 19.2 VDC | - | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
