Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2912581RELAY GEN PURPOSE DPDT 6A 24V |
4,833 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 17.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
2912594RELAY GEN PURPOSE DPDT 6A 48V |
1,189 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 48VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 20 mA | Non Latching | Diode, Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
2912604RELAY GEN PURPOSE DPDT 6A 60V |
2,444 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 60VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | Diode, Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
2912620RELAY GEN PURPOSE DPDT 6A 230V |
3,654 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 230VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
2966511RELAY GEN PURPOSE SPDT 6A 60V |
1,941 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 60VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.8 mA | Non Latching | Diode, Lighted Indicator | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
2982249RELAY GEN PURPOSE SPST 6A 24V |
1,740 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
5603683RELAY GEN PURPOSE SPDT 6A 120V |
1,880 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
5603684RELAY GEN PURPOSE SPDT 6A 24V |
3,182 |
|
Datasheet | PLC-RSP | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

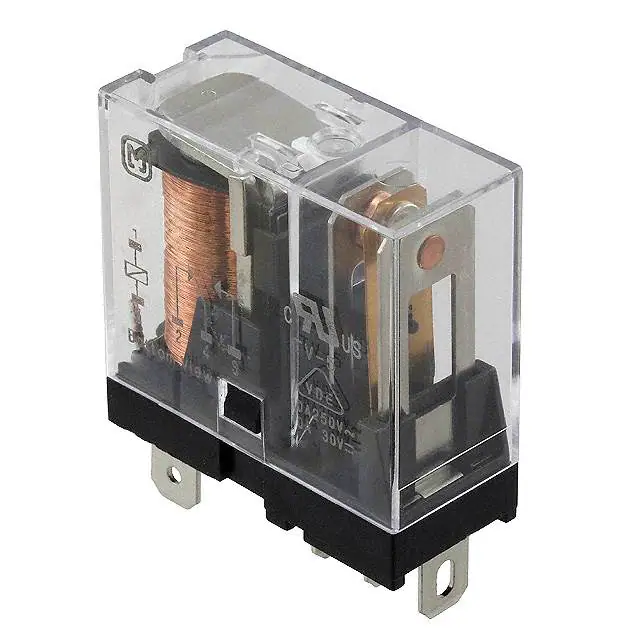

AHN12212RELAY GEN PURPOSE SPDT 16A 12V |
1,268 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 44.4 mA | Non Latching | Diode | Plug In | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AHN21012NRELAY GEN PURPOSE DPDT 5A 12V |
3,794 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN21112NRELAY GEN PURPOSE DPDT 5A 12V |
2,166 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
AHN211X0NRELAY GEN PURPOSE DPDT 5A 110V |
2,449 |
|
Datasheet | AHN | Tube | Obsolete | Socketable | 110VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 10.6 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN211X1NRELAY GEN PURPOSE DPDT 5A 120V |
4,749 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 9.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN211Y2NRELAY GEN PURPOSE DPDT 5A 240V |
3,400 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 4.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | 192 VAC | 72 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN22005NRELAY GEN PURPOSE DPDT 5A 5V |
1,751 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 106.4 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN22024NRELAY GEN PURPOSE DPDT 5A 24V |
1,555 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN22105NRELAY GEN PURPOSE DPDT 5A 5V |
1,524 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 106.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN22124NRELAY GEN PURPOSE DPDT 5A 24V |
1,954 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | Lighted Indicator | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN221X1NRELAY GEN PURPOSE DPDT 5A 110V |
4,197 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 4.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 77 VDC | 16.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
AHN22205NRELAY GEN PURPOSE DPDT 5A 5V |
2,127 |
|
Datasheet | AHN | Box | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 106.4 mA | Non Latching | Diode | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
