Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC9141B50DMR-GIC REG BOOST 5V 800MA SOT25-5 |
1,761 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.65V | 6V | 5V | - | 800mA | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25-5 |
|
LM3203TL/NOPBIC REG BUCK ADJ 500MA 10DSBGA |
1,050 |
|
Datasheet | - | 10-WFBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.7V | 5.5V | 0.8V | 3.6V | 500mA | 2MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 10-DSBGA |
|
LM3676SD-1.8/NOPBIC REG BUCK 1.8V 600MA 8WSON |
1,000 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.9V | 5.5V | 1.8V | - | 600mA | 2MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 8-WSON (3x3) |
|
LM3677TL-1.2/NOPBIC REG BUCK 1.2V 600MA 5DSBGA |
500 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.7V | 5.5V | 1.2V | - | 600mA | 3MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
MP2141NGTF-ZIC REG BUCK ADJ 1A SOT563 |
3,901 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.3V | 5.5V | 0.6V | 5.5V | 1A | 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|

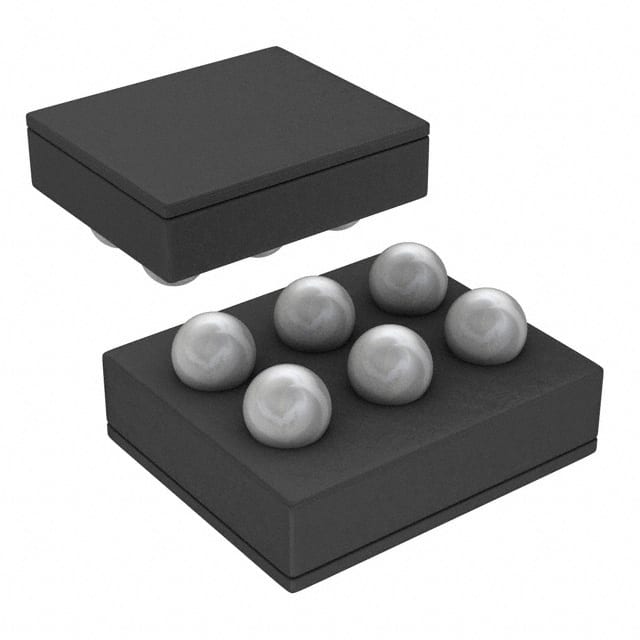

LM8801TME-1.82/NOPBIC REG BUCK 1.82V 600MA 6DSBGA |
500 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.82V | - | 600mA | 6MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
LM8801TME-1.2/NOPBIC REG BUCK 1.2V 600MA 6DSBGA |
500 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.2V | - | 600mA | 6MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
TPS562219DDFTIC REG BUCK ADJ 2A TSOT23-8 |
1,000 |
|
Datasheet | D-CAP2™ | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Not For New Designs | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.76V | 7V | 2A | 650kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-8 |
|
LM3691TL-0.75/NOPBIC REG BUCK 0.75V 1A 6DSBGA |
310 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 0.75V | - | 1A | 4MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.5x1.3) |
|
XC9140A371MR-GIC REG BOOST 3.7V 100MA SOT25 |
100 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.7V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC9140A381MR-GIC REG BOOST 3.8V 100MA SOT25 |
100 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.8V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC9140A471MR-GIC REG BOOST 4.7V 100MA SOT25 |
100 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 4.7V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
XC9140A3114R-GIC REG BOOST 3.1V 100MA 6USPEL |
100 |
|
Datasheet | XC9140 | 6-XDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.1V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPEL (1.8x2) |
|
|
XC9140A3214R-GIC REG BOOST 3.2V 100MA 6USPEL |
100 |
|
Datasheet | XC9140 | 6-XDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.2V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPEL (1.8x2) |
|
|
XC9140A3614R-GIC REG BOOST 3.6V 100MA 6USPEL |
100 |
|
Datasheet | XC9140 | 6-XDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.6V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPEL (1.8x2) |
|
|
XC9140A3324R-GIC REG BOOST 3.3V 100MA 6USPEL |
100 |
|
Datasheet | XC9140 | 6-XDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.3V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPEL (1.8x2) |
|
|
XC9140C301MR-GIC REG BOOST 3V 100MA SOT25 |
1,131 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC9140A361MR-GIC REG BOOST 3.6V 100MA SOT25 |
2,383 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 3.6V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC9140C271MR-GIC REG BOOST 2.7V 100MA SOT25 |
2,158 |
|
Datasheet | XC9140 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Fixed | 1 | 0.9V | 5.5V | 2.7V | - | 100mA | - | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC9111C331MR-GIC REG BOOST ADJ 400MA SOT25-5 |
100 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable (Programmable) | 1 | 0.9V | 10V | 1.5V | 7V | 400mA (Switch) | 100kHz | No | -40°C ~ 85°C | - | - | Surface Mount | SOT-25-5 |
