Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT9742QNGJ5IC USB POWER SWITCH TSOT-23-5 |
632 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 6V | Not Required | 500mA | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|

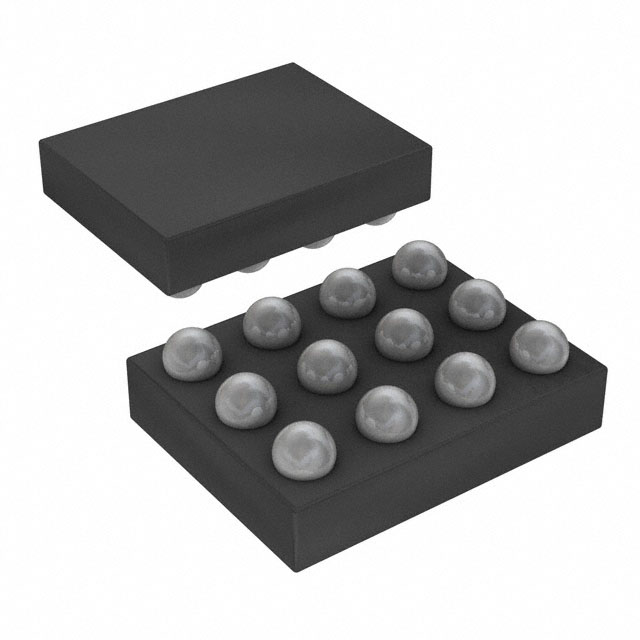

RT9746HWSCIC REG OVP WITH PTVS WL-CSP-12 |
302 |
|
Datasheet | 12-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 3V ~ 20V | Not Required | - | 35mOhm | Non-Inverting | - | Over Voltage | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (1.92x1.27) |
|
RT9742SNGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
1,426 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 6V | Not Required | 500mA | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
RT9715AGBIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
4,886 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
RT9715AGBRIC PWR SWTCH N-CHAN 1:1 SOT23-5R |
2,299 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5R |
|
|
RT9715BGBIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
3,836 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
RT9715BGBGIC PWR SWTCH N-CHAN 1:1 SOT23-5G |
3,287 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5G |
|
|
RT9715BGBRIC PWR SWTCH N-CHAN 1:1 SOT23-5R |
3,924 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5R |
|
|
RT9715CGBIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
4,761 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
RT9715CGBGIC PWR SWTCH N-CHAN 1:1 SOT23-5G |
3,036 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5G |
