Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

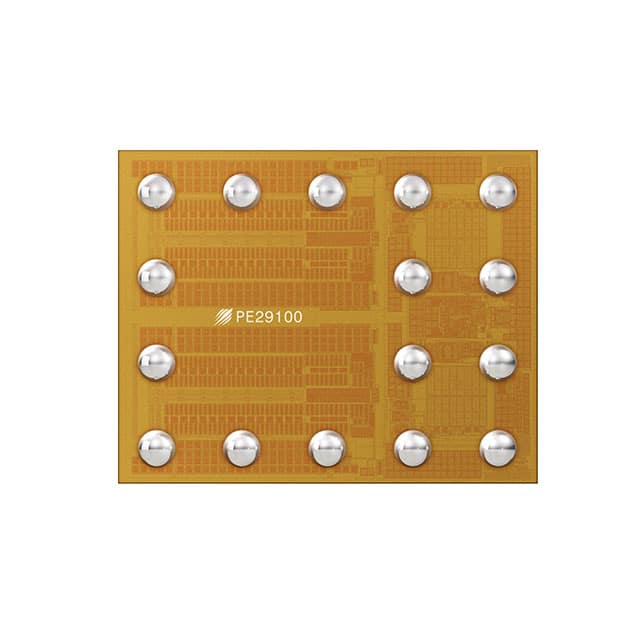

PE29100A-XIC GATE DRVR HALF-BRIDGE DIE |
3,245 |
|
Datasheet | - | Die | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 5.5V | - | 2A, 4A | - | 100 V | 2.5ns, 2.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|

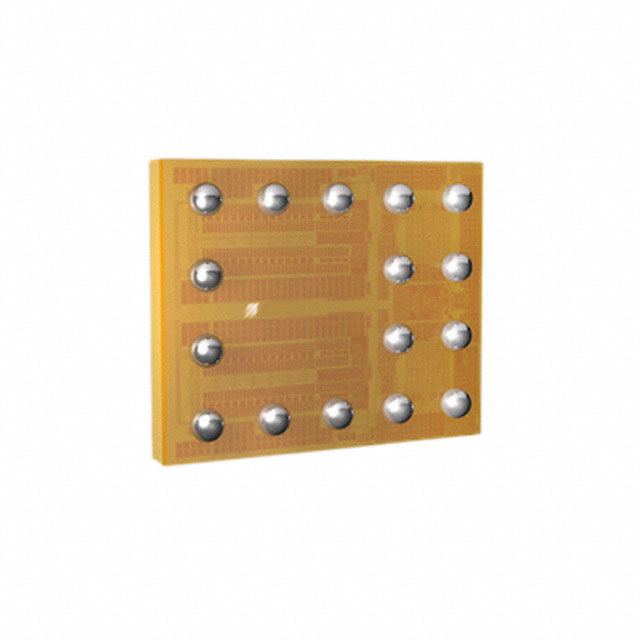

PE29102A-XIC GATE DRVR HALF-BRIDGE DIE |
4,975 |
|
Datasheet | - | Die | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 6V | 0.6V, 1.6V | 2A, 4A | Inverting | 100 V | 900ps, 900ps | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
|
PE29101A-XIC GATE DRVR HALF-BRIDGE DIE |
1,192 |
|
Datasheet | - | Die | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 6.5V | - | 2A, 4A | CMOS/TTL | - | 1ns, 1ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
