DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT8202AGQWIC REG CTRLR BUCK 16WQFN |
458 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | - | - | Yes | No | - | Current Limit, Enable, On Time Control, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WQFN (3x3) |
|
RT8108FGSPIC REG CTRLR BUCK 8SOP |
3,150 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.75V ~ 13.2V | 500kHz | 85% | Yes | No | - | Enable, Phase Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP-EP |
|
RT8240BZQWIC REG CTRLR BUCK 12WQFN |
3,377 |
|
Datasheet | - | 12-WFQFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | 400kHz | - | Yes | No | - | Current Limit, Enable, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WQFN (2x2) |
|
|
RT8228AZQWIC REG CTRLR BUCK 12WQFN |
1,943 |
|
Datasheet | - | 12-WFQFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | - | - | Yes | No | - | Current Limit, Enable, On Time Control, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WQFN (2x2) |
|
RT9214GSIC REG CTRLR BUCK 8SOP |
2,275 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 5V, 12V | 300kHz | 100% | Yes | No | - | Phase Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
RT8228BGQWIC REG CTRLR BUCK 12WQFN |
1,715 |
|
- |
- | 12-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | - | - | Yes | No | - | Current Limit, Enable, On Time Control, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WQFN (2x2) |
|
|
RT9612BGSIC REG CTRLR BUCK 8SOP |
3,649 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 13.5V | 500kHz | - | Yes | No | - | Phase Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
RT8237AZQWIC REG CTRLR BUCK 10WDFN |
3,589 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | 290kHz ~ 430kHz | - | Yes | No | - | Current Limit, Enable, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WDFN (3x3) |
|
|
RT8237CZQWIC REG CTRLR BUCK 10WDFN |
2,024 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | 290kHz ~ 430kHz | - | Yes | No | - | Current Limit, Enable, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WDFN (3x3) |
|

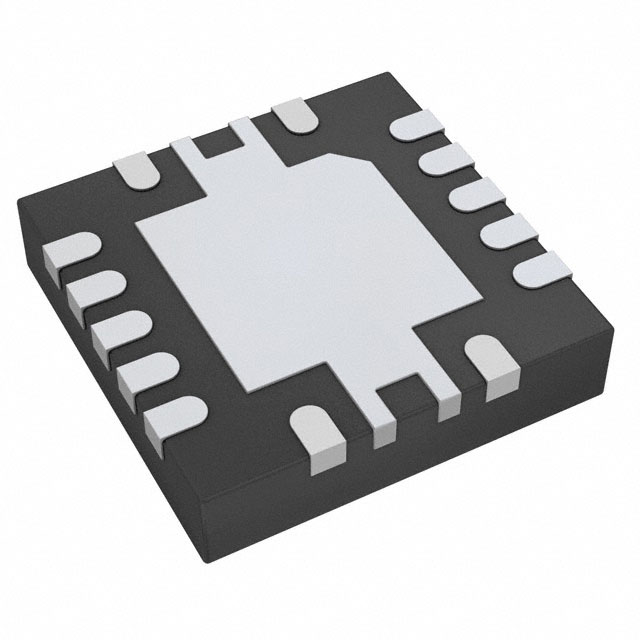

RT8209MGQWIC REG CTRLR BUCK 14WQFN |
3,305 |
|
Datasheet | - | 14-PowerWFQFN | Tape & Reel (TR) | Discontinued at Digi-Key | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 5.5V | - | - | Yes | No | - | Current Limit, Enable, On Time Control, Phase Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-WQFN (3.5x3.5) |
