Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B84108S1004A120LINE FILTER 440V/250VAC 20A CHAS |
3,189 |
|
Datasheet | B84108 | Box | Obsolete | Three Phase (Delta) | Single Stage | - | 440V, 250V | - | - | 20 A | 50 ~ 60Hz | Medical | ENEC | - | Chassis Mount | Quick Connect | - |
|
B84112B0000A010LINE FILTER 250VAC/VDC 1A CHASS |
3,227 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 1 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|
|
B84112B0000A110LINE FILTER 250VAC/VDC 10A CHASS |
1,568 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 10 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|

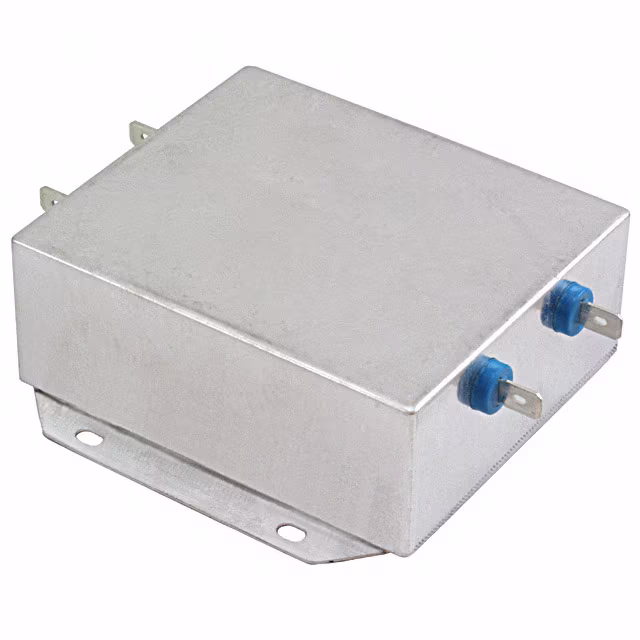

B84112B0000A120LINE FILTER 250VAC/VDC 20A CHASS |
1,162 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | 1.8mH |
|
|
B84112B0000A020LINE FILTER 250VAC/VDC 2A CHASS |
4,107 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 2 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|
B84112B0000A030LINE FILTER 250VAC/VDC 3A CHASS |
4,050 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 3 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|
|
B84112B0000A060LINE FILTER 250VAC/VDC 6A CHASS |
2,929 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|

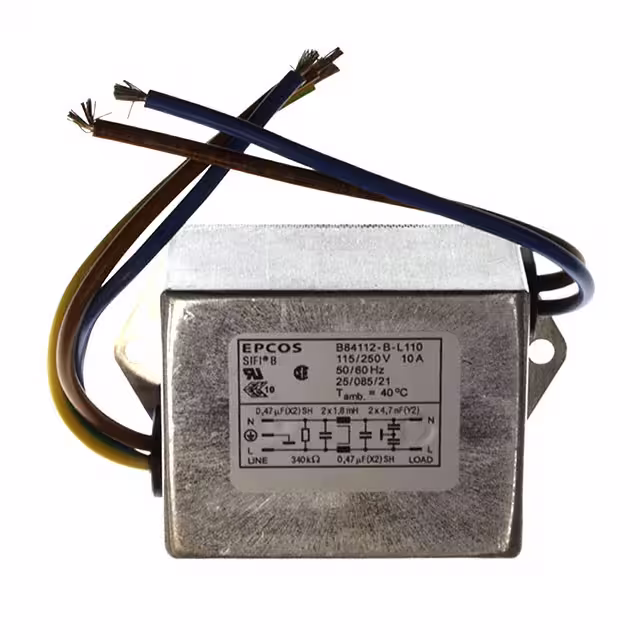

B84112BL110LINE FILTER 250VAC/VDC 10A CHASS |
1,495 |
|
Datasheet | B84112B | Bulk | Obsolete | Single Phase | Single Stage | 250V | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Wire Leads | 1.8mH |
|
B84113C0000A110LINE FILTER 250VAC/VDC 10A CHASS |
1,688 |
|
Datasheet | B84113C | Bulk | Obsolete | Single Phase | Two Stage | 250V | 250V | - | - | 10 A | 50 ~ 60Hz | Medical | CSA, ENEC, UL | - | Chassis Mount | Quick Connect | - |
|

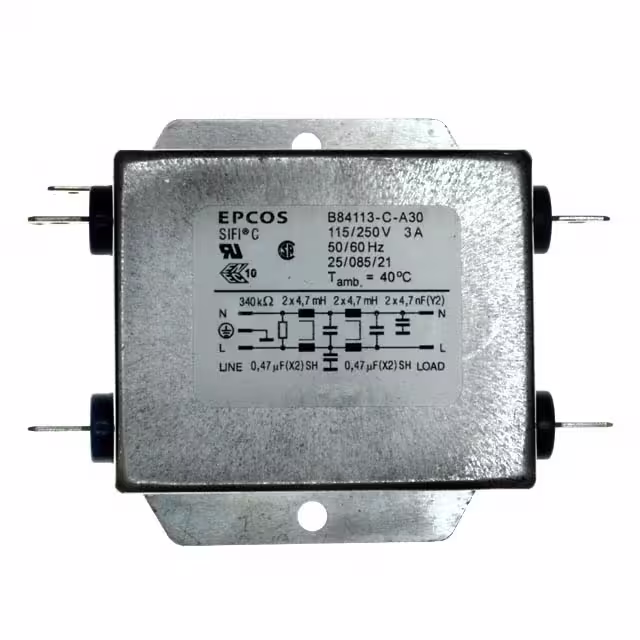

B84113C0000A030LINE FILTER 250VAC/VDC 3A CHASS |
2,955 |
|
Datasheet | B84113C | Bulk | Obsolete | Single Phase | Two Stage | 250V | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | 4.7mH |
