Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NAH-60-472LINE FLTR 300VDC 277VAC 60A CHAS |
1,413 |
|
- |
NAH | Bulk | Active | Single Phase | Single Stage | 300V | 277V | - | - | 60 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
NAH-60-223LINE FLTR 300VDC 277VAC 60A CHAS |
4,552 |
|
- |
NAH | Bulk | Active | Single Phase | Single Stage | 300V | 277V | - | - | 60 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
NAH-60-222LINE FLTR 300VDC 277VAC 60A CHAS |
1,520 |
|
- |
NAH | Bulk | Active | Single Phase | Single Stage | 300V | 277V | - | - | 60 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
NAH-50-471LINE FLTR 300VDC 277VAC 50A CHAS |
2,905 |
|
- |
NAH | Bulk | Active | Single Phase | Single Stage | 300V | 277V | - | - | 50 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
TAH-30-683-DLINE FILTER 500VAC 30A DIN RAIL |
2,161 |
|
Datasheet | TAH | Box | Active | Three Phase (Wye) | Single Stage | - | 500V | - | - | 30 A | 50/60Hz | General Purpose | cURus, VDE | -40°C ~ 85°C | DIN Rail | Terminal Block | - |
|

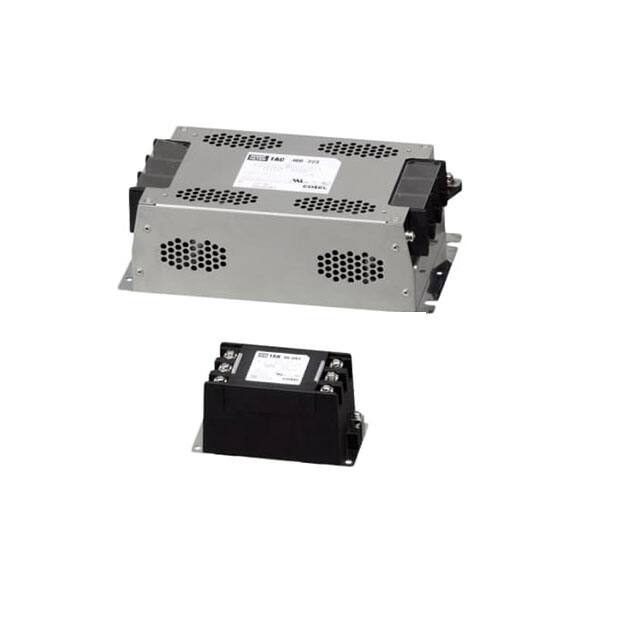

TAC-50-103LINE FILTER 500VAC 50A CHASS MNT |
1,802 |
|
Datasheet | TAC | Box | Active | Three Phase (Wye) | Single Stage | - | 500V | - | - | 50 A | 50/60Hz | General Purpose | cURus, VDE | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FSB-30-254-UEMI FILTER |
1,010 |
|
Datasheet | FSB | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | - | 528 V | 30 A | 50/60Hz | Regenerative Motor Drive | cURus, ENEC, VDE | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
YAC-25-683LINE FILTER 25A CHASSIS MOUNT |
1,247 |
|
- |
YAC | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 289 V | 500 V | 25 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
YAC-36-683LINE FILTER 36A CHASSIS MOUNT |
4,010 |
|
- |
YAC | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 289 V | 500 V | 36 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
YAC-25-685EMI FILTER |
1,895 |
|
Datasheet | YAC | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 305 V | 528 V | 25 A | 50/60Hz | General Purpose | CSA, cURus, DEMKO, ENEC | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
