Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6609075-7LINE FILTER 125VDC 10A PANEL MNT |
3,040 |
|
Datasheet | DA, Corcom | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 55°C | Panel Mount | PC Pins | - |
|
6609075-9LINE FILTER 125VDC 15A PANEL MNT |
1,839 |
|
Datasheet | - | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 15 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 55°C | Panel Mount | PC Pins | 24µH |
|
6609034-1LINE FILTER 250VAC 1A CHASS MNT |
3,075 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.86mH |
|
|
1VDK3LINE FILTER 250VAC 1A CHASS MNT |
4,859 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.86mH |
|
|
1EDK1LINE FILTER 250VAC 1A CHASS MNT |
2,070 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.86mH |
|
|
1EDK3LINE FILTER 250VAC 1A CHASS MNT |
2,772 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.86mH |
|
6609034-6LINE FILTER 250VAC 6A CHASS MNT |
2,651 |
|
Datasheet | DK | Bulk | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 516µH |
|
6VDK1LINE FILTER 250VAC 6A CHASS MNT |
3,941 |
|
Datasheet | DK | Bulk | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 516µH |
|
|
3EDK3LINE FILTER 250VAC 3A CHASS MNT |
2,754 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.76mH |
|
|
6609034-3LINE FILTER 250VAC 3A CHASS MNT |
4,945 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|
|
6EDK3LINE FILTER 250VAC 6A CHASS MNT |
3,462 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 516µH |
|

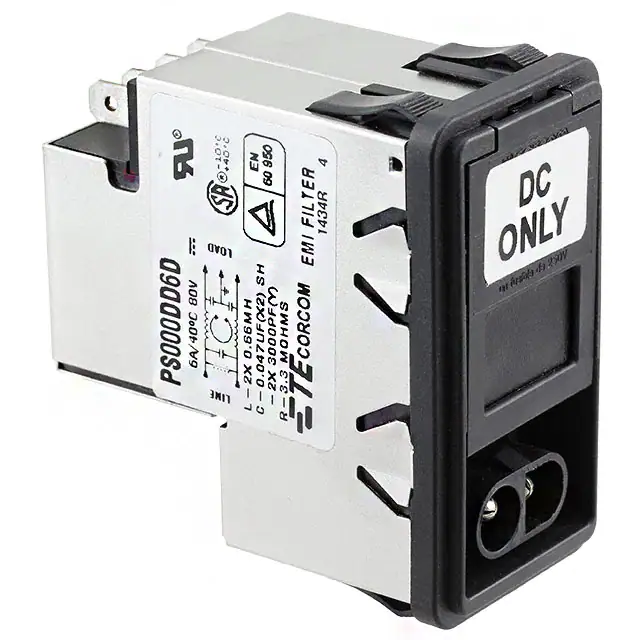

PS000DD6DLINE FILTER 80VDC 6A PANEL MOUNT |
1,479 |
|
Datasheet | P, Corcom | Bulk | Obsolete | DC | - | 80V | - | - | - | 6 A | - | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Panel Mount | Quick Connect | - |
|
PS000DDXDLINE FILTER 80VDC 10A PANEL MNT |
4,007 |
|
Datasheet | P, Corcom | Bulk | Obsolete | Single Phase | Single Stage | 80V | - | - | - | 10 A | - | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Panel Mount | Quick Connect | - |
|

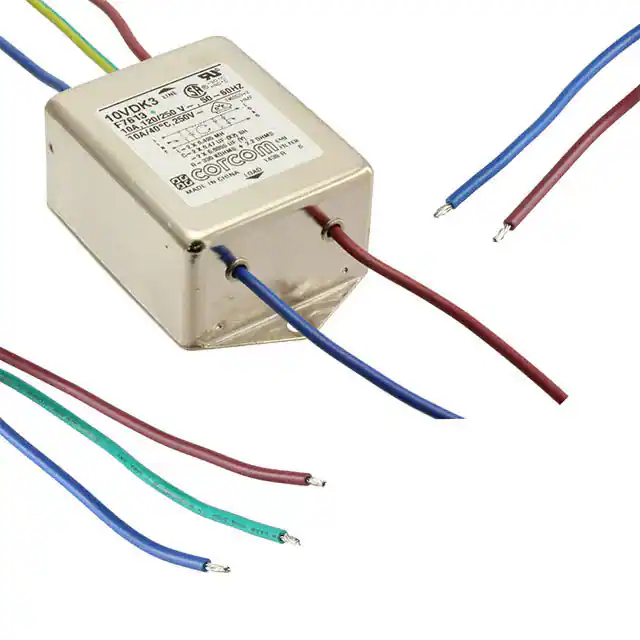

6609034-8LINE FILTER 250VAC 10A CHASS MNT |
2,600 |
|
Datasheet | DK | Bulk | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 495µH |
|
10EDK1LINE FILTER 250VAC 10A CHASS MNT |
3,979 |
|
Datasheet | DK | Bag | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 495µH |
|

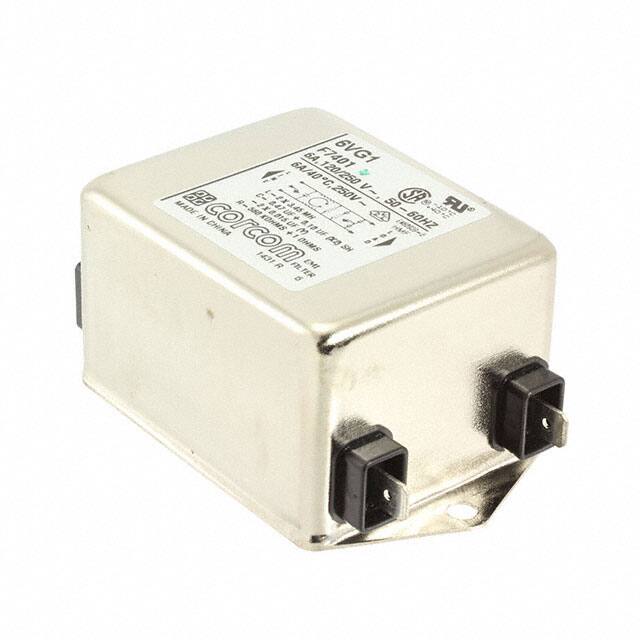

6VG1LINE FILTER 250VAC 6A CHASS MNT |
3,095 |
|
Datasheet | G | Bulk | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 3.45mH |
|
|
6609033-9LINE FILTER 250VAC 20A CHASS MNT |
2,538 |
|
Datasheet | DK | Bulk | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 540µH |
|
6EP1LINE FILTER 250VAC 6A CHASS MNT |
2,408 |
|
Datasheet | EP | Bulk | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | - |
|

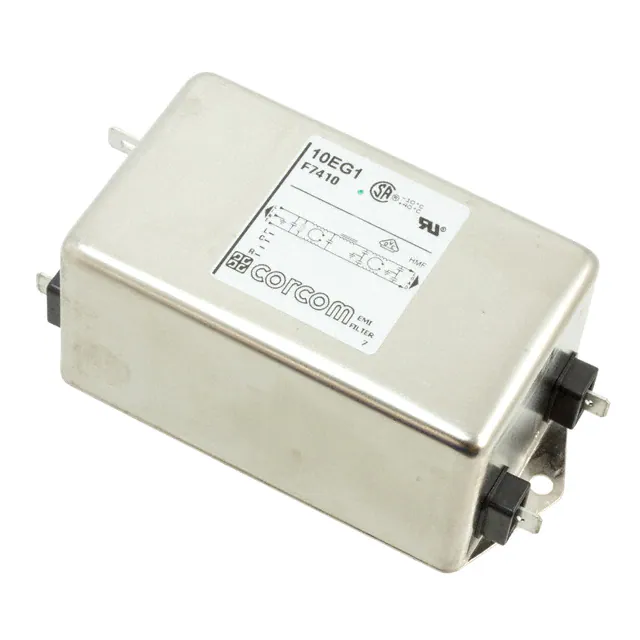

6609050-2LINE FILTER 250VAC 10A CHASS MNT |
3,424 |
|
Datasheet | G | Bulk | Obsolete | Single Phase | Three Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 7.178mH |
|
6609074-3LINE FILTER 80VDC 30A CHASS MNT |
4,896 |
|
Datasheet | DC | Bulk | Obsolete | DC | Single Stage | 80V | - | - | - | 30 A | - | General Purpose | CSA, TUV, UR | -10°C ~ 55°C | Chassis Mount | Threaded Post (10-32) | 701µH |
