Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60KESS6AFPWVMLINE FILTER 440VAC 60A CHASS MNT |
2,069 |
|
Datasheet | KES | Box | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 60 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
|
|
TPY45-4SFINTERCONNECT |
1,146 |
|
- |
TPY | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 45 A | 47Hz, 63Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Threaded Post (M5) | - |
|
|
AGPV24003LINE FILTER 240VAC 3A CHASS MNT |
2,526 |
|
Datasheet | - | Bulk | Active | Single Phase | - | - | 240V | - | - | 3 A | - | General Purpose | UL | - | Chassis Mount | Terminal Block | - |
|
|
AGPV12003LINE FILTER 120VAC 3A CHASS MNT |
4,193 |
|
Datasheet | - | Bulk | Active | Single Phase | - | - | 120V | - | - | 3 A | - | General Purpose | UL | - | Chassis Mount | Terminal Block | - |
|
|
42KEMS10BBSDVMLINE FILTER 520VAC 42A CHASS MNT |
4,385 |
|
Datasheet | KEM-BS | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | - | 42 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
60KESS6BFPWHMLINE FILTER 520VAC 60A CHASS MNT |
4,347 |
|
Datasheet | KES | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 60 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
|
|
55KEMS10ABSDHMLINE FILTER 440VAC 55A CHASS MNT |
3,582 |
|
Datasheet | KEM-BS | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 55 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
RTHN-2010LINE FILTER 10A CHASSIS MOUNT |
3,870 |
|
Datasheet | RTHN-2 | Bulk | Active | Three Phase (Delta) | Two Stage | - | - | 250 V | 250 V | 10 A | - | General Purpose | ENEC, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FN3840-25-33-C35-R65LINE FILTER 25A CHASSIS MOUNT |
3,604 |
|
- |
FN3840 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 25 A | 50/60Hz | Regenerative Motor Drive | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
6609068-3LINE FILTER 25A CHASSIS MOUNT |
1,410 |
|
Datasheet | AYA | Bag | Active | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 25 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | - |
|
FN258L-30-33LINE FILTER 30A CHASSIS MOUNT |
3,238 |
|
Datasheet | FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 30 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
25KEMS10AFPDHMLINE FILTER 440VAC 25A CHASS MNT |
2,963 |
|
Datasheet | KEM | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 25 A | 50 ~ 60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
TPY30-4FFLINE FILTER, 3-PHASE WYE, 250/44 |
4,098 |
|
- |
TPY | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 30 A | 47Hz, 63Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Threaded Post (M5) | - |
|
RTMN-5030LINE FILTER 500VAC/VDC 30A CHASS |
2,603 |
|
Datasheet | RTMN | Bulk | Active | Three Phase (Delta) | Two Stage | 500V | 500V | - | - | 30 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
RTHB-5006LINE FILTER 500VAC/VDC 6A CHASS |
3,722 |
|
Datasheet | RTHB | Bulk | Active | Three Phase (Delta) | Two Stage | 500V | 500V | - | - | 6 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
60KEBS6BFPDVMLINE FILTER 520VAC 60A CHASS MNT |
1,800 |
|
Datasheet | KEB | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | - | 60 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
|
FN258HVIT-16-29LINE FILTER 16A CHASSIS MOUNT |
4,833 |
|
Datasheet | FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 16 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
42KEPS10BBSWHMLINE FILTER 520VAC 42A CHASS MNT |
1,768 |
|
Datasheet | KEP-BS | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 42 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
B84143D0025R127LINE FILTER 25A CHASSIS MOUNT |
1,340 |
|
Datasheet | B84143D | Bulk | Active | Three Phase (Delta) | - | - | - | - | - | 25 A | 50 ~ 60Hz | Converter | CSA, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

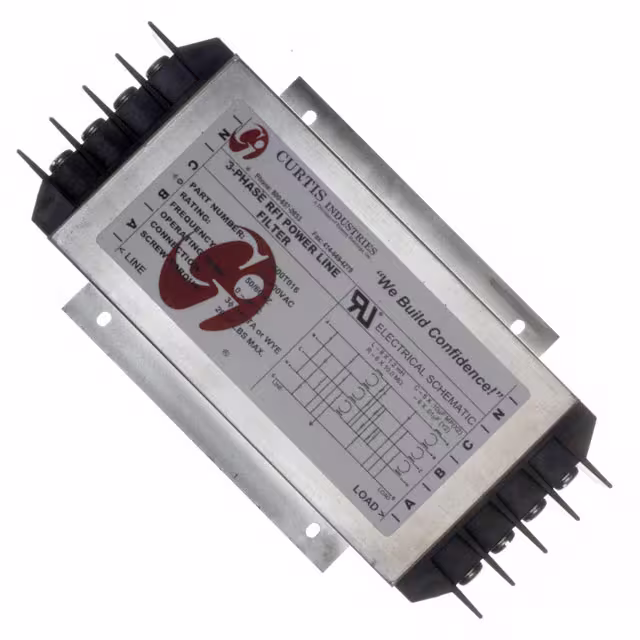

F3600T016LINE FILTER 600VAC 16A CHASS MNT |
4,396 |
|
Datasheet | F3600 | Box | Active | Three Phase (Wye) | Two Stage | - | 600V | - | - | 16 A | 50/60Hz | General Purpose | UR | - | Chassis Mount | Terminal Block | - |
