Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000APH12PLINE FILTER 690VAC 1KA CHASS MNT |
2,168 |
|
Datasheet | APH | Bulk | Active | Three Phase (Delta) | Three Stage | - | 690V | - | - | 1 kA | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
1600APS12LLINE FLTR 520VAC 1.6KA CHASS MNT |
3,949 |
|
Datasheet | APS | Bulk | Active | Three Phase (Delta) | Three Stage | - | 520V | - | - | 1.6 kA | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
|
1600APH12LLINE FLTR 520VAC 1.6KA CHASS MNT |
4,144 |
|
Datasheet | APH | Box | Active | Three Phase (Delta) | Three Stage | - | 520V | - | - | 1.6 kA | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
|
1600APS12PLINE FLTR 690VAC 1.6KA CHASS MNT |
1,638 |
|
Datasheet | APS | Bulk | Active | Three Phase (Delta) | Three Stage | - | 690V | - | - | 1.6 kA | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
100ADT6LINE FILTER 100A CHASSIS MOUNT |
2,203 |
|
Datasheet | ADT | Bulk | Obsolete | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (3/8-16) | - |
|
|
1609071-8LINE FILTER 200A CHASSIS MOUNT |
1,879 |
|
Datasheet | ADT | Bulk | Obsolete | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 200 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (3/8-16) | - |
|
|
1609071-3LINE FILTER 100A CHASSIS MOUNT |
4,593 |
|
Datasheet | ADT | Bulk | Obsolete | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (3/8-16) | - |
|

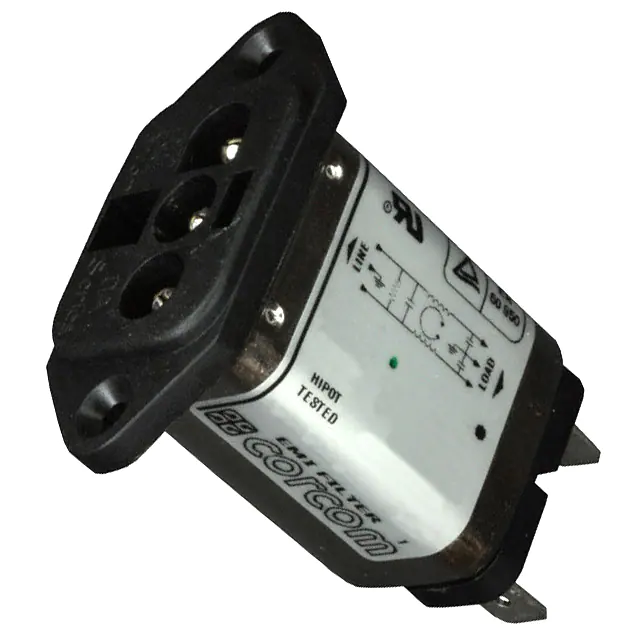

3DAF1LINE FILTER 125VDC 3A PANEL MNT |
2,410 |
|
Datasheet | DA, Corcom | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 3 A | - | General Purpose | CSA, UR, VDE | -10°C ~ 55°C | Panel Mount | Quick Connect | 1.45mH |
|
6DAF1LINE FILTER 125VDC 6A PANEL MNT |
1,454 |
|
Datasheet | DA, Corcom | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 6 A | - | General Purpose | CSA, UR, VDE | -10°C ~ 55°C | Panel Mount | Quick Connect | 465µH |
|
6609075-7LINE FILTER 125VDC 10A PANEL MNT |
3,040 |
|
Datasheet | DA, Corcom | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 55°C | Panel Mount | PC Pins | - |
