Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

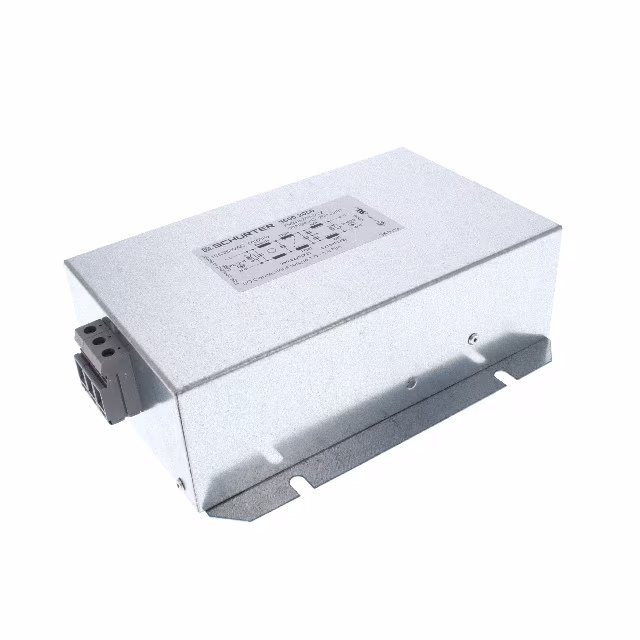

5500.2050LINE FILTER 125V/250VAC 30A CHAS |
2,766 |
|
Datasheet | FMW-150 | Bulk | Obsolete | Single Phase | Three Stage | - | 125V, 250V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMBC-R91S-5512LINE FILTER 55A CHASSIS MOUNT |
1,672 |
|
Datasheet | FMBC LL | Box | Active | Three Phase (Delta) | Two Stage | - | - | 300 V | 520 V | 55 A | 50 ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|
|
3-138-369LINE FILTER 110A CHASSIS MOUNT |
4,904 |
|
Datasheet | FMBD EP | Box | Active | Three Phase (Wye) | Two Stage | - | - | 520 V | 760 V | 110 A | 50 ~ 60Hz | General Purpose | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|
FMAC-091T-8010LINE FILTER 480VAC 80A CHASS MNT |
3,445 |
|
Datasheet | FMAC ECO | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | 80 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 550µH |
|
FMBC-R91R-4212LINE FILTER 520VAC 42A CHASS MNT |
1,195 |
|
Datasheet | FMBC LL | Bulk | Active | Three Phase (Delta) | Two Stage | - | 520V | - | - | 42 A | - | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FMBC-A91S-5512LINE FILTER 480V/520VAC 55A CHAS |
4,974 |
|
Datasheet | FMBC NEO | Bulk | Active | Three Phase (Delta) | Two Stage | - | 480V, 520V | - | - | 55 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.8mH, L2 - 13µH |
|
|
FMAC-0FIA-6400LINE FILTER 550VAC 64A CHASS MNT |
1,973 |
|
Datasheet | FMAC-Out | Bulk | Obsolete | Three Phase (Delta) | Single Stage | - | 550V | - | - | 64 A | 50 ~ 60Hz | General Purpose | ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

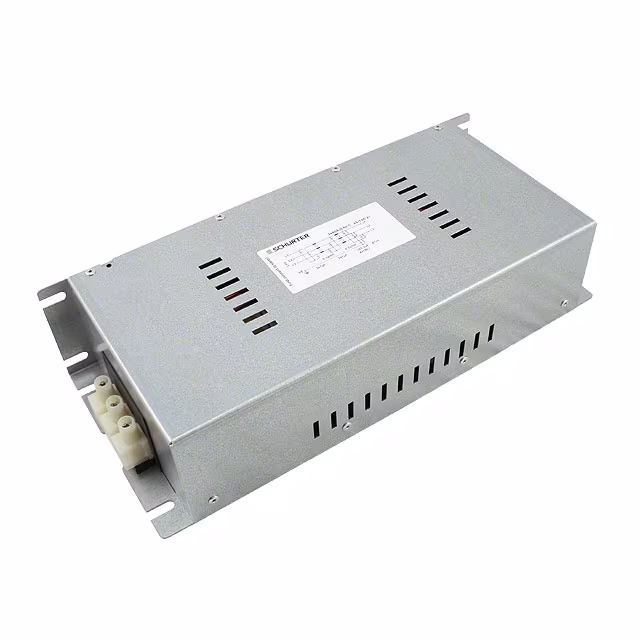

FMBC-0996-8000LINE FILTER 480VAC 80A CHASS MNT |
3,172 |
|
Datasheet | FMBC ECO | Box | Active | Three Phase (Delta) | Two Stage | - | 480V | - | - | 80 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 320µH |
|
|
FMAC-091G-H110LINE FLTR 480VAC 110A CHASS MNT |
1,498 |
|
Datasheet | FMAC ECO | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | 110 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 550µH |
|
|
3-138-328LINE FILTER 180A CHASSIS MOUNT |
4,285 |
|
Datasheet | FMBC EP | Box | Active | Three Phase (Delta) | Two Stage | - | - | 520 V | 760 V | 180 A | 50 ~ 60Hz | General Purpose | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block, Threaded Post (M10) | - |
