Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2070B-1-06LINE FILTER 110V/250VAC 1A CHASS |
4,602 |
|
Datasheet | FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 22mH |
|
FN2030N1-12-06LINE FILTER 250VAC/VDC 12A CHASS |
1,829 |
|
Datasheet | FN 2030 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 12 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 4mH |
|
FN2010M-16-08LINE FILTER 250VAC/VDC 16A CHASS |
1,567 |
|
Datasheet | FN 2010 | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 700µH |
|
|
FN2030-10-07LINE FILTER 250VAC/VDC 10A CHASS |
4,276 |
|
Datasheet | FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 10 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 8mH |
|
|
FN2030BZ-8-06LINE FILTER 250VAC/VDC 8A CHASS |
3,643 |
|
Datasheet | FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 8 A | 50 ~ 60Hz | Medical | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
|
FN2030B-8-07LINE FILTER 250VAC/VDC 8A CHASS |
1,293 |
|
Datasheet | FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 8 A | 50 ~ 60Hz | Medical | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 8mH |
|
|
FN2090Z-1-06LINE FILTER 250VAC/VDC 1A CHASS |
3,813 |
|
Datasheet | FN 2090 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 1 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 20mH |
|
|
FN2090-1-07LINE FILTER 250VAC/VDC 1A CHASS |
2,449 |
|
Datasheet | FN 2090 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 1 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 20mH |
|

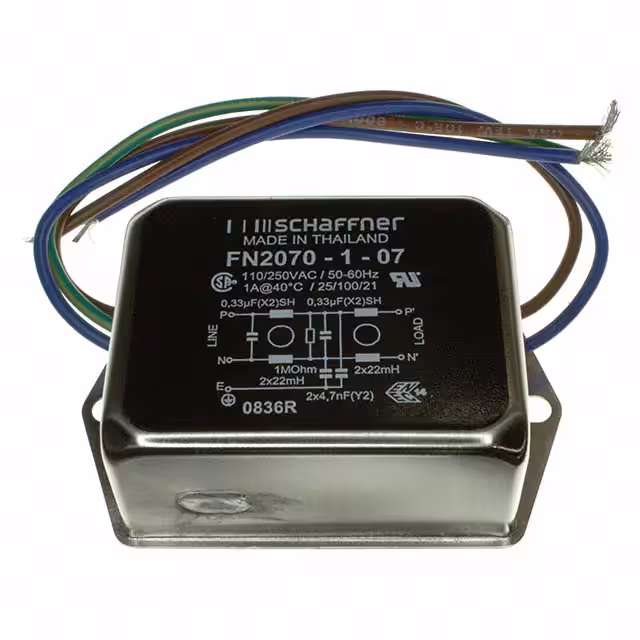

FN2070-1-07LINE FILTER 110V/250VAC 1A CHASS |
3,809 |
|
Datasheet | FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 22mH |
|
FN2060A-12-06LINE FILTER 250VAC 12A CHASS MNT |
3,742 |
|
Datasheet | FN 2060 | Tray | Active | Single Phase | Two Stage | - | 250V | - | - | 12 A | DC ~ 400Hz | Safety | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 580µH |
