Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3288-125-35-C17-R65LINE FILTER 530/305VAC 125A CHAS |
4,694 |
|
Datasheet | FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 125 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3288-125-35-C35-R65LINE FILTER 530/305VAC 125A CHAS |
4,963 |
|
Datasheet | FN 3288 | Tray | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 125 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3288IT-125-35-C34-R60LINE FILTER 125A CHASSIS MOUNT |
2,444 |
|
Datasheet | FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | - | - | - | 125 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

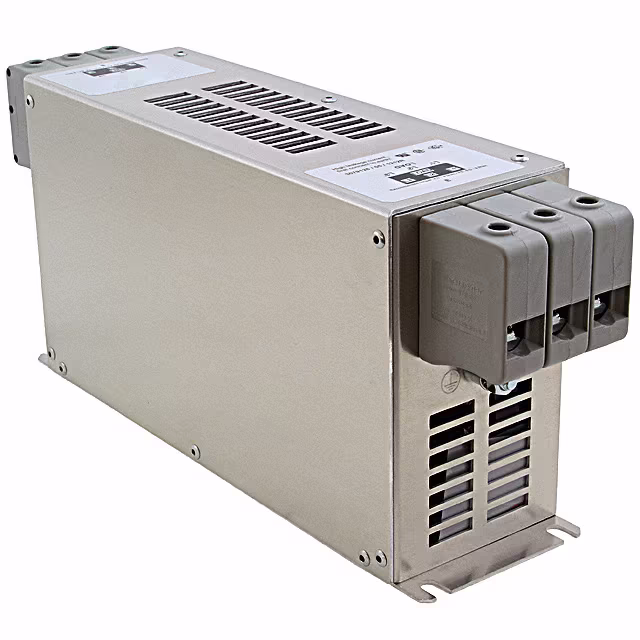

FN3268-75-34LINE FILTER 75A CHASSIS MOUNT |
1,731 |
|
Datasheet | FN 3268 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 75 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258H-100-35LINE FILTER 100A CHASSIS MOUNT |
4,768 |
|
Datasheet | FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 100 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3287-160-40-C33-R65LINE FILTER 530/305VAC 160A CHAS |
1,649 |
|
Datasheet | FN 3287 | Box | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 160 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

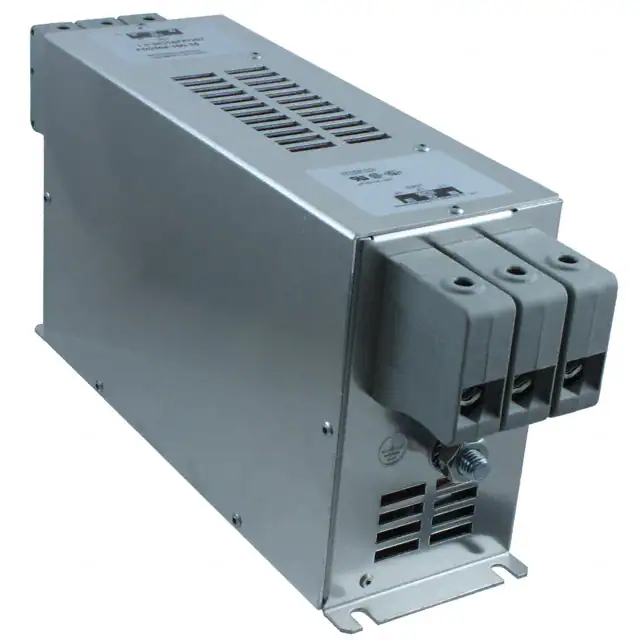

FN3268-100-35LINE FILTER 100A CHASSIS MOUNT |
4,942 |
|
Datasheet | FN 3268 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 100 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3288HV-125-35-C36-R65LINE FILTER 125A CHASSIS MOUNT |
2,761 |
|
Datasheet | FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | - | 440 V | 760 V | 125 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN354-25-47LINE FILTER 25A CHASSIS MOUNT |
1,979 |
|
Datasheet | FN 354 | Tray | Not For New Designs | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 25 A | DC ~ 60Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3288-160-40-C26-R65LINE FILTER 530/305VAC 160A CHAS |
4,614 |
|
Datasheet | FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 160 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
