Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

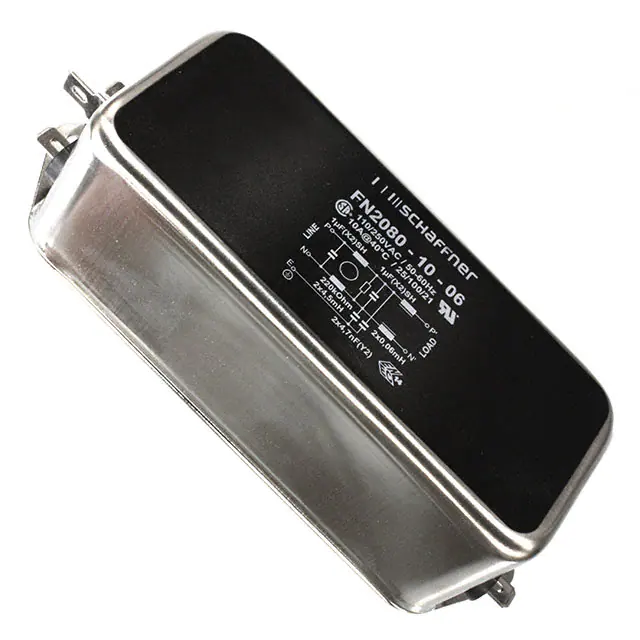

FN2080-10-06LINE FILTER 110V/250VAC 10A CHAS |
292 |
|
Datasheet | FN 2080 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 4.5mH |
|
FN2090B-16-06LINE FILTER 110V/250VAC 16A CHAS |
1,149 |
|
Datasheet | FN 2090 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 4mH |
|
|
FN2090LL-16-06LINE FILTER 250VAC/VDC 16A CHASS |
2,140 |
|
Datasheet | FN 2090 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 4mH |
|
|
FN2090-20-06LINE FILTER 110V/250VAC 20A CHAS |
147 |
|
Datasheet | FN 2090 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 2.7mH |
|

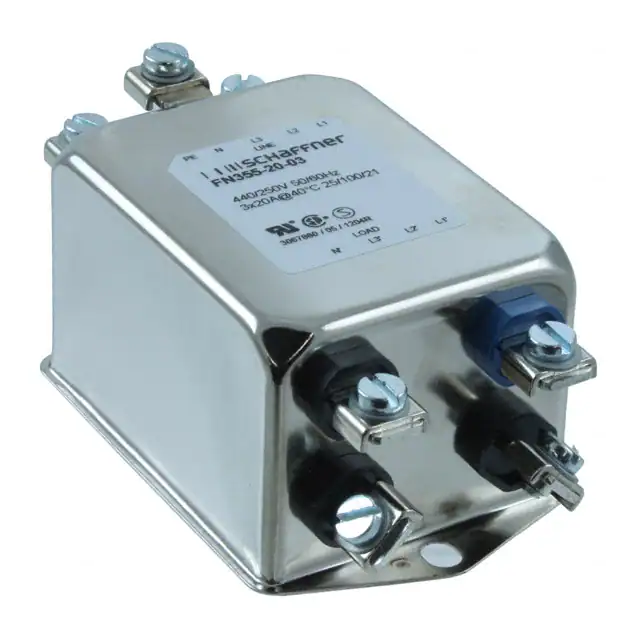

FN355-20-03LINE FILTER 20A CHASSIS MOUNT |
309 |
|
Datasheet | FN 355 | Tray | Active | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 20 A | DC ~ 400Hz | General Purpose | CSA, SEMKO, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2070-16-06LINE FILTER 110V/250VAC 16A CHAS |
147 |
|
Datasheet | FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.8mH |
|
FN2090-20-08LINE FILTER 110V/250VAC 20A CHAS |
1,651 |
|
Datasheet | FN 2090 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 2.7mH |
|
FN2070-25-08LINE FILTER 110V/250VAC 25A CHAS |
1,966 |
|
Datasheet | FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 25 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 2mH |
|
|
FN2090LL-30-08LINE FILTER 250VAC/VDC 30A CHASS |
268 |
|
Datasheet | FN 2090 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 30 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 1.5mH |
|

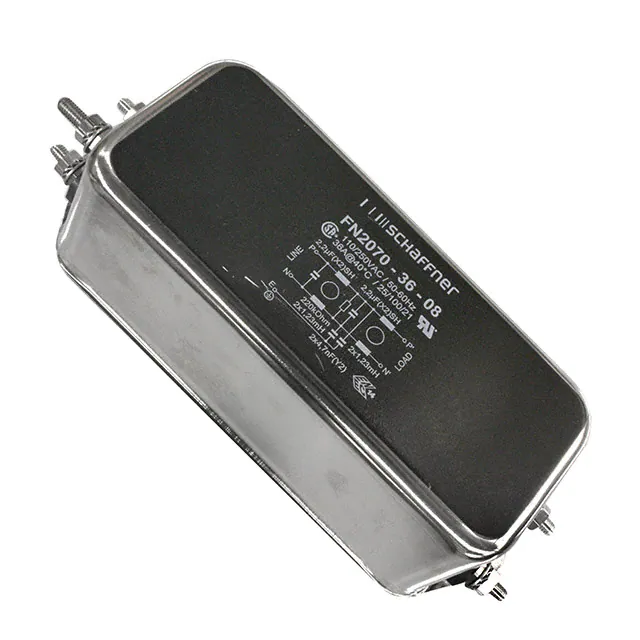

FN2070-36-08LINE FILTER 110V/250VAC 36A CHAS |
3,284 |
|
Datasheet | FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 36 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 1.23mH |
