Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRAMS06UP60AIC POWER MODULE PLUG N DRIVE INT |
9,042 |
|
Datasheet | iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 6 A | 600 V | 2000Vrms | - | - | Through Hole |
|
IRAMS06UP60BPWR MOD 600V 6A 23PWRSIP |
2,758 |
|
Datasheet | iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 6 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
IRAMS10UP60A-2IC PWR MOD PLUG-N-DRIVE 600V 10A |
8,664 |
|
Datasheet | iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 10 A | 600 V | 2000Vrms | - | - | Through Hole |
|

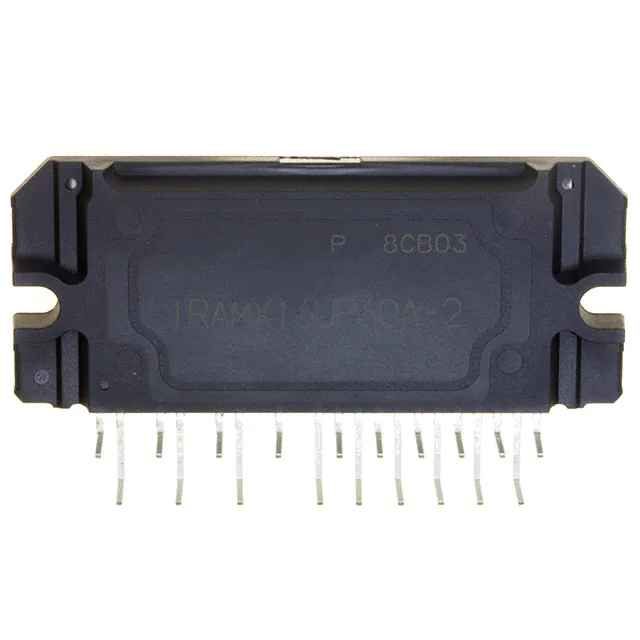

IRAMX16UP60A-2IC PWR HYBRID 600V 16A SIP2 |
9,049 |
|
Datasheet | iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 16 A | 600 V | 2000Vrms | - | - | Through Hole |
|
FCAS50SN60IC POWER MODULE 600V 50A 27PIN |
9,254 |
|
Datasheet | SPM® | 27-PowerDIP Module (1.205", 30.60mm) | - | Obsolete | IGBT | 1 Phase | 50 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSAM15SH60ASMART POWER MODULE 15A SPM32-AA |
9,121 |
|
Datasheet | Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSAM15SM60ASMART POWER MODULE 15A SPM32AA |
7,845 |
|
- |
Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSAM20SH60ASMART POWER MODULE 20A SPM32-AA |
9,863 |
|
Datasheet | Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSAM20SL60SMART POWER MODULE 20A SPM32-AA |
7,779 |
|
Datasheet | SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSAM20SM60ASMART POWER MODULE 20A SPM32-AA |
7,308 |
|
Datasheet | Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSAM30SM60ASMART POWER MODULE 30A SPM32-AA |
3,204 |
|
Datasheet | Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSBB20CH60SMART POWER MODULE 20A SPM27-CA |
8,098 |
|
Datasheet | Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSBB30CH60SMART POWER MODULE 30A SPM27-EA |
4,875 |
|
Datasheet | Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSBM10SH60ASMART POWER MODULE 10A SPM32-AA |
6,084 |
|
Datasheet | SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 10 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSBM15SH60ASMART POWER MODULE 15A SPM32-AA |
5,794 |
|
Datasheet | SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSBM20SH60ASMART POWER MODULE 20A SPM32-AA |
8,717 |
|
Datasheet | SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSBM30SH60ASMART POWER MODULE 30A SPM32-AA |
8,204 |
|
Datasheet | SPM® | 32-PowerDIP Module (1.370", 34.80mm) | - | Obsolete | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSBS10CH60SMART POWER MODULE 10A SPM27-BA |
4,871 |
|
Datasheet | Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 10 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FSBS15CH60SMART POWER MODULE 15A SPM27-BA |
5,743 |
|
Datasheet | Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
FSBS5CH60SMART POWER MODULE 5A SPM27-BA |
4,101 |
|
Datasheet | Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 5 A | 600 V | 2500Vrms | - | - | Through Hole |
