Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGIPQ3H60T-HZSPWR MODULE 600V 3A 26DIP |
132 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase Inverter | 3 A | 600 V | 1500Vrms | - | - | Through Hole |
|
STGIB30M60TS-LSLLIMM(TM) - 2ND SERIES IPM, 3-P |
212 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 35 A | 600 V | 1500Vrms | - | - | Through Hole |
|
STGIK50CH65TSLLIMM HIGH POWER IPM, 3-PHASE I |
179 |
|
Datasheet | - | 30-PowerDIP Module | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 650 V | 2500Vrms | - | - | Through Hole |
|
STGIPN3H60IGBT IPM MODULE 3A 600V NDIP-26L |
399 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase | 3 A | 600 V | 1000VDC | - | - | Through Hole |
|
STGIF7CH60TS-LSLLIMM 2ND SERIES IPM, 3-PHASE I |
141 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase | 10 A | 600 V | 1500Vrms | - | - | Through Hole |
|
STGIPQ4C60T-HZSLLIMM NANO 2ND SERIES IPM, 3-PH |
700 |
|
Datasheet | SLLIMM nano - 2nd | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase Inverter | 6 A | 600 V | 1500Vrms | - | - | Through Hole |
.jpg)
|

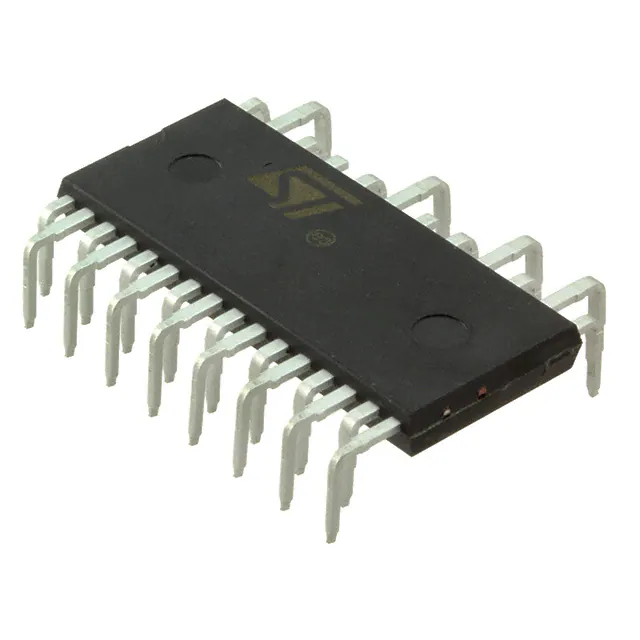

STGIPN3H60ATIGBT BIPO 600V 3A DIP |
662 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase Inverter | 3 A | 600 V | 1000Vrms | - | - | Through Hole |
|
|
STIPN1M50T-HSLLIMM-NANO SMALL LOW-LOSS INTEL |
467 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Obsolete | MOSFET | 3 Phase Inverter | 1 A | 500 V | 1000Vrms | - | - | Through Hole |
|
|
STIPN2M50-HPOWER DRVR MOD 500V 2A 26DIP MOD |
469 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Obsolete | MOSFET | 3 Phase Inverter | 2 A | 500 V | 1000Vrms | - | - | Through Hole |
|
|
STIPN2M50T-HPOWER DRVR MOD 500V 2A 26DIP MOD |
456 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | MOSFET | 3 Phase Inverter | 2 A | 500 V | 1000Vrms | - | - | Through Hole |
