Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS11012MOD IPM 3PHASE IGBT 600V 4A |
7,670 |
|
Datasheet | - | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 4 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11013MOD IPM 3PHASE IGBT 600V 8A |
5,567 |
|
Datasheet | - | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 8 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11014MOD IPM 3PHASE IGBT 600V 15A |
2,823 |
|
Datasheet | - | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11015MOD IPM 3PHASE IGBT 600V 20A |
3,418 |
|
Datasheet | - | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11016MOD IPM 3PHASE IGBT 600V 30A |
6,619 |
|
Datasheet | - | 36-PowerDIP Module (3.100", 78.75mm) | Bulk | Obsolete | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11017MOD IPM 3PHASE IGBT 600V 50A |
4,843 |
|
Datasheet | - | 36-PowerDIP Module (2.480", 63.00mm) | Bulk | Obsolete | IGBT | 3 Phase | 50 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11032MOD IPM 3PHASE IGBT 600V 4A |
2,356 |
|
Datasheet | Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 4 A | 600 V | 2500VDC | - | - | Through Hole |
|

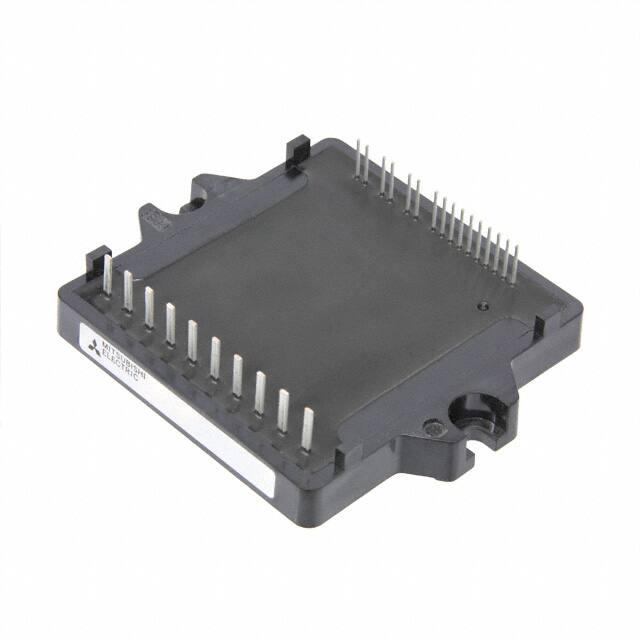

PS11033MOD IPM 3PHASE IGBT 600V 8A |
3,254 |
|
Datasheet | Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 8 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS11034MOD IPM 3PHASE IGBT 600V 15A |
7,201 |
|
Datasheet | Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS11035MOD IPM 3PHASE IGBT 600V 20A |
8,242 |
|
Datasheet | Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500VDC | - | - | Through Hole |
