Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS21962-4CMOD IPM 600V 5A SUPERMINIDIP |
9,872 |
|
Datasheet | Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued at Digi-Key | IGBT | 3 Phase | 5 A | 600 V | 1500VDC | - | - | Through Hole |
|
|
PS21962-4SMOD IPM 600V 5A SUPERMINIDIP |
7,984 |
|
Datasheet | Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued at Digi-Key | IGBT | 3 Phase | 5 A | 600 V | 1500VDC | - | - | Through Hole |
|
PSS15S92F6-AGMOD IPM 6-PAC 15A 600V DIP |
8,304 |
|
Datasheet | - | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued at Digi-Key | IGBT | 3 Phase | 15 A | 600 V | 1500Vrms | - | - | Through Hole |
|
|
PS21562-PMOD IPM 600V 5A MINI DIP |
7,569 |
|
Datasheet | Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 5 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS21562-SPMOD IPM 600V 5A MINI DIP |
2,934 |
|
Datasheet | Intellimod™ | 37-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 5 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS21963-4EMOD IPM 600V 8A SUPERMINIDIP |
9,722 |
|
- |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued at Digi-Key | IGBT | 3 Phase | 8 A | 600 V | 1500VDC | - | - | Through Hole |
|

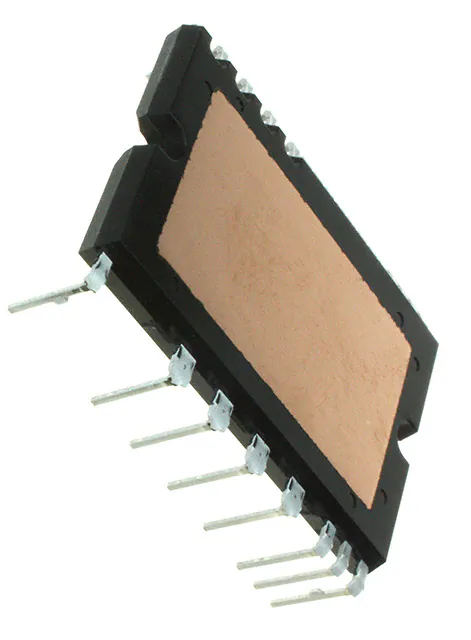

PS21963-4MOD IPM 600V 10A SUPERMINIDIP |
8,543 |
|
Datasheet | Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Discontinued at Digi-Key | IGBT | 3 Phase | 10 A | 600 V | 1500VDC | - | - | Through Hole |
|
|
PS21563-PMOD IPM 600V 10A MINI DIP |
2,489 |
|
Datasheet | Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 10 A | 600 V | 2500VDC | - | - | Through Hole |
|
PS219B2-ASMOD DIPIPM 5A 600V SUPER MINI |
8,818 |
|
- |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued at Digi-Key | IGBT | 3 Phase Inverter | 5 A | 600 V | 1500Vrms | - | - | Through Hole |
|
PSS20S92F6-AGMOD IPM 6-PAC 20A 600V DIP |
8,663 |
|
Datasheet | - | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued at Digi-Key | IGBT | 3 Phase | 20 A | 600 V | 1500Vrms | - | - | Through Hole |
