Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD2A05P0MULTI METER LED CHASSIS MOUNT |
4,398 |
|
Datasheet | LD | Box | Active | Multifunction Meter | Current, Process, Voltage | 0 ~ 200mA, 0 ~ 200VDC | LED - Red Characters | 5 | 2.250" (57.00mm) | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | - | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | Serial Communications Output |
|
CUB5PR00PROCESS METER LCD PANEL MOUNT |
1,219 |
|
Datasheet | CUB5P | Box | Active | Process Meter | Process | 0 ~ 50mA, 0 ~ 10VDC | LCD - Black Characters | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB5IR00AMMETER 0-200MA LCD PANEL MOUNT |
2,997 |
|
Datasheet | CUB5I | Box | Active | Ammeter | Current | 0 ~ 200mA | LCD - Black Characters | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB5VR00VOLTMETER 0-200VDC LCD PANEL MT |
3,163 |
|
Datasheet | CUB5V | Box | Active | Voltmeter | Voltage | 0 ~ 200VDC | LCD - Black Characters | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB5RTR0TEMP METER LCD PANEL MOUNT |
4,099 |
|
Datasheet | CUB5RT | Box | Active | Temperature Meter | RTD | -200°C ~ 850°C | LCD - Black Characters | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB5TCB0TEMP METER LCD PANEL MOUNT |
1,207 |
|
Datasheet | CUB5TC | Box | Active | Temperature Meter | Thermocouple | -200°C ~ 1820°C, -10 ~ 65mVDC | LCD - Dual Color Characters, Backlight | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
PAXLCL00PROCESS METER 4-50MA LED PNL MT |
3,086 |
|
Datasheet | PAX®LITE PAXLCL | Bulk | Active | Process Meter | Process | 4 ~ 50mA | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply |
|

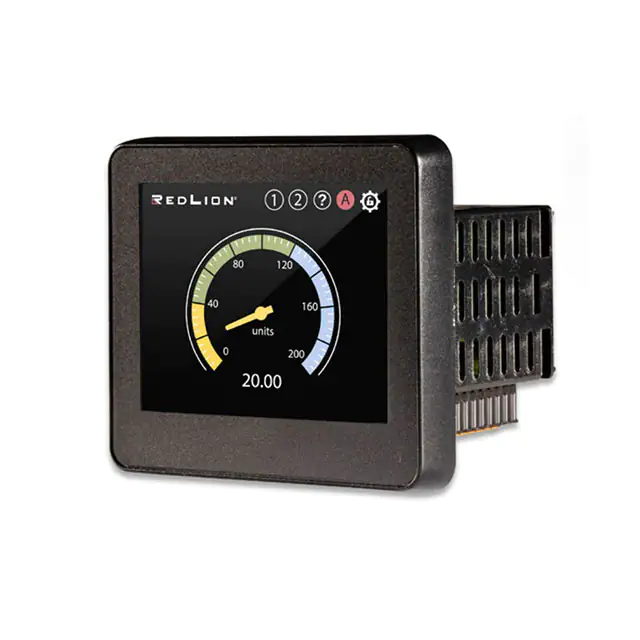

PM500A0301600F00GRAPHICAL PANEL METER, PM-50, 3. |
1,003 |
|
Datasheet | PM-50 | Bulk | Active | Display | Current, Resistance, RTD, Thermocouple, Voltage | ±2A, ±60VDC, -270°C ~ 2315°C, 1000Ohm | TFT - Color (Touch) | - | - | Solid State | 10 ~ 30VDC | - | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
PAXT0000TEMP METER LED PANEL MOUNT |
3,749 |
|
Datasheet | PAX | Box | Active | Temperature Meter | RTD, Thermocouple | -270°C ~ 2315°C, -10 ~ 65mVDC, 0 ~ 400Ohms | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
PAXT0010TEMP METER LED PANEL MOUNT |
1,970 |
|
Datasheet | PAX | Box | Active | Temperature Meter | RTD, Thermocouple | -270°C ~ 2315°C, -10 ~ 65mVDC, 0 ~ 400Ohms | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
