Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB05KW01-6F-JBSWITCH IND RND SNAP-IN GRN LED |
1,400 |
|
Datasheet | KB | Box | Obsolete | LED | Green | White | Clear | Vf (Typ), If (Max) | 3.3V | 30mA | Round | 0.48" (12.19mm) | 11.60mm Dia | Round with Flat Top | - | - | - | - | - | - |
|
|
LB01GW01-05-JFIND PB ILLUM SQ GRAY 5V CLR/GRN |
3,954 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Clear | Green | Clear | AC | 5V | 115mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01GW01-12-CJIND PB ILLUM SQ GRAY 12V RED |
2,572 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Red | Red | Clear | AC | 12V | 60mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01GW01-12-FJIND PB ILLUM SQ GRAY 12V GREEN |
3,997 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 12V | 60mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01GW01-12-GJIND PB ILLUM SQ GRAY 12V BLUE |
3,268 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Blue | Blue | Clear | AC | 12V | 60mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01KW01-05-JCIND PB ILLUM SQ BLK 5V CLR/RED |
3,351 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Red | Red | Clear | AC | 5V | 115mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01KW01-28-CJIND PB ILLUM SQ BLK 28V RED |
1,950 |
|
Datasheet | LB | Box | Obsolete | - | Red | Red | Clear | - | - | - | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB02GW01-12-FJIND PB ILLUM RND GRAY 12V LAMP |
2,699 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 12V | 60mA | Round | 0.87" (22.10mm) | 19.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB02KW01-05-JFIND PB ILLUM RND BLACK 5V LAMP |
2,644 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 5V | 115mA | Round | 0.87" (22.10mm) | 19.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|

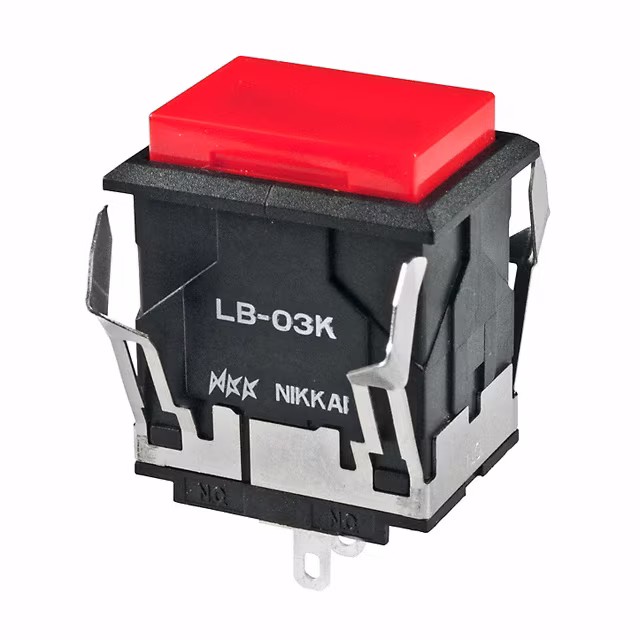

LB03KW01-12-CJIND PB ILLUM RECT BLACK 12V LAMP |
4,123 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Red | Red | Clear | AC | 12V | 60mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
P01-06-B-2AINDICATOR ROCKER ILL 6V WHT CAP |
3,686 |
|
Datasheet | P01 | Box | Obsolete | Incandescent | White | White | Clear | AC | 6V | 80mA | Square | 0.76" x 0.76" (19.30mm x 19.30mm) | 16.20mm x 16.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|

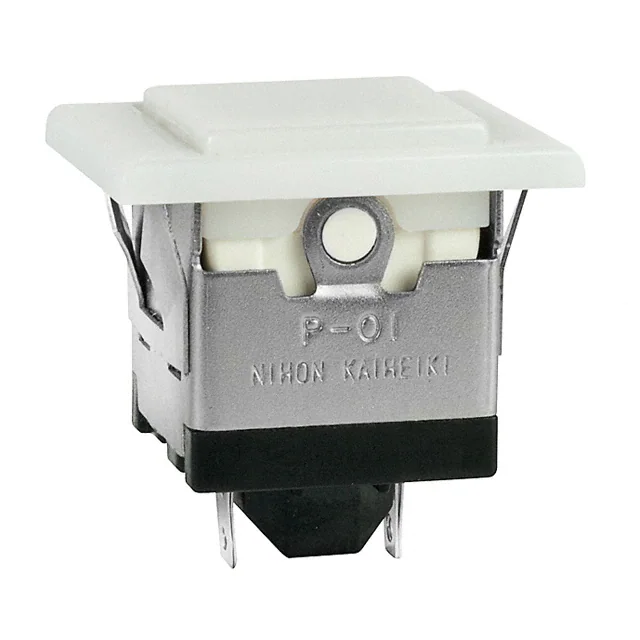

P01-24-B-1BINDICATOR ROCKER ILL 24V WHT CAP |
1,062 |
|
Datasheet | P01 | Box | Obsolete | Incandescent | White | White | Clear | AC | 24V | 25mA | Rectangle | 0.66" x 0.74" (16.76mm x 18.80mm) | 16.20mm x 16.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
|
P01-24-B-2AINDICATOR ROCKER ILL 24V WHT CAP |
1,250 |
|
Datasheet | P01 | Box | Obsolete | Incandescent | White | White | Clear | AC | 24V | 25mA | Square | 0.76" x 0.76" (19.30mm x 19.30mm) | 16.20mm x 16.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|

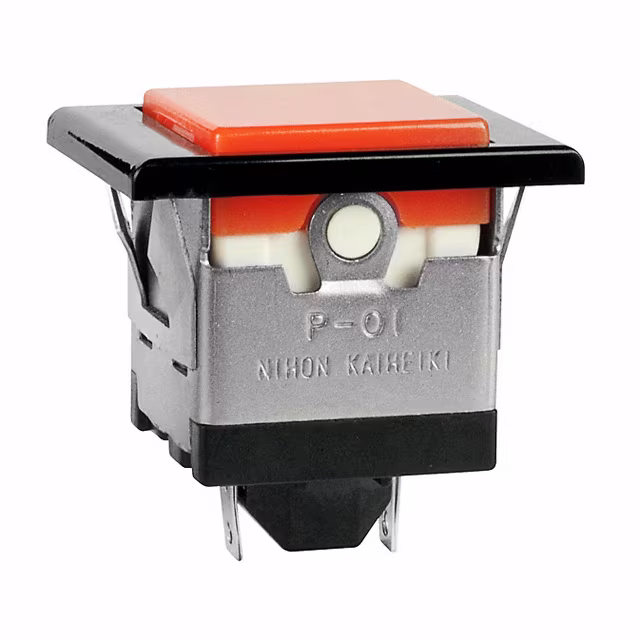

P01-28-D-1AINDICATOR ROCKER ILL 28V WHT CAP |
2,066 |
|
Datasheet | P01 | Box | Obsolete | Incandescent | Orange | Orange | Clear | AC | 28V | 22mA | Rectangle | 0.66" x 0.74" (16.76mm x 18.80mm) | 16.20mm x 16.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
|
YB01KW01-12-JCINDICATOR PB SQ 12V CLR/RED ILL |
1,578 |
|
Datasheet | YB | Box | Obsolete | Incandescent | Red | Red | Clear | AC | 12V | 60mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB01KW01-12-JDINDICATOR PB SQ 12V CLR/AMB ILL |
4,694 |
|
Datasheet | YB | Box | Obsolete | Incandescent | Amber | Amber | Clear | AC | 12V | 60mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-05-FBINDICATOR PB RND 5V GRN/WHT ILL |
1,738 |
|
Datasheet | YB | Box | Obsolete | Incandescent | Green | White | Diffused | AC | 5V | 115mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB05KW01-05-BBINDICATOR PB RND 5V LAMP WHT LED |
1,607 |
|
Datasheet | YB | Box | Obsolete | Incandescent | White | White | Diffused | AC | 5V | 115mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
6039-004-304RLED RED DIFF 2V WIRE LEADS |
1,821 |
|
Datasheet | Astrolite | Bulk | Obsolete | LED | Red | - | Diffused | Vf (Typ), If (Max) | 2V | 25mA | Round | 0.19" (4.83mm) | - | Round with Domed Top | 200mcd | 639nm | 60° | - | - | - |
|
|
KB02KW01-5C12-JBINDICATOR RED LED CLEAR/WHITE CA |
3,287 |
|
Datasheet | KB | Bulk | Obsolete | LED | Red | White | Clear | AC | 12V | 20mA | Round | 0.48" (12.19mm) | 11.60mm Dia | Round with Flat Top | - | - | - | - | - | - |
