Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6092322130LED PNL MT 9MM 12V BLACK YELLOW |
4,887 |
|
Datasheet | 609 | Bulk | Obsolete | LED | Yellow | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 90mcd | - | - | - | - | - |
|
|
6092322140LED PNL MT 9MM 24V BLACK YELLOW |
3,624 |
|
Datasheet | 609 | Bulk | Obsolete | LED | Yellow | - | - | DC | 24V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 90mcd | - | - | - | - | - |
|
5580803007LED 3MM BLUE WHT DIFF PANEL MOUN |
2,458 |
|
Datasheet | 558 | Bulk | Obsolete | LED | Blue | White | Diffused | Vf (Typ), If (Max) | 3.5V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 13mcd | 468nm | - | - | - | - |
|
5586003007LED 3MM BLUE CLR PANEL MOUNT |
4,420 |
|
Datasheet | 558 | Bulk | Obsolete | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.5V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 460mcd | 464nm | - | - | - | - |
|
|
5586403007LED 3MM WHITE CLR PANEL MOUNT |
1,726 |
|
Datasheet | 558 | Bulk | Obsolete | LED | White | Colorless | Clear | Vf (Typ), If (Max) | 3.6V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 850mcd | - | - | - | - | - |
|
5596001007LED 5MM BLUE CLR PANEL MOUNT |
2,372 |
|
Datasheet | 559 | Bulk | Obsolete | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.6V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 650mcd | 470nm | 30° | Wire Leads - 14" (355.60mm) | - | - |
|
|
5596201007LED 5MM GREEN CLR PANEL MOUNT |
1,682 |
|
Datasheet | 559 | Bulk | Obsolete | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 3.5V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2200mcd | 525nm | 30° | Wire Leads - 14" (355.60mm) | - | - |
|
|
5596401007LED 5MM WHITE CLR PANEL MOUNT |
4,296 |
|
Datasheet | 559 | Bulk | Obsolete | LED | White | Colorless | Clear | Vf (Typ), If (Max) | 3.5V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 600mcd | - | 45° | Wire Leads - 14" (355.60mm) | - | - |
|
1.65120.0010000LAMP SOCKET |
3,433 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | 24V | - | Round | 0.32" (8.13mm) | - | Round with Flat Top | - | - | - | Solder Lug | IP40 | - |
|
|
50739171471600PANEL INDICATOR INCAND 28V RED |
3,277 |
|
Datasheet | 507 | Bulk | Obsolete | Incandescent | Red | - | - | - | 28V | - | Round | Cartridge-Holder Required | - | - | - | - | - | - | - | - |
|
181883609553PANEL MOUNT T-2 MIDGET NEON |
1,087 |
|
Datasheet | 181 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5101H3-5VLED AMBER PANEL MNT 5V |
2,606 |
|
Datasheet | 5101H | Bulk | Obsolete | LED | Amber | - | - | Vf (Typ), If (Max) | 5V | 20mA | Round | 0.25" (6.35mm) | - | Round with Domed Top | 10mcd | 585nm | - | Wire Wrap | - | - |
|
|
5592501007LED ORANGE PANEL MNT LMP-2 |
4,769 |
|
Datasheet | 559 | Bulk | Obsolete | LED | Orange | Orange | Diffused | Vf (Typ), If (Max) | 1.9V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 7mcd | 600nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
|
YB02KW01-28-EBINDICATOR PB RND YEL 28V ILLUM |
3,025 |
|
Datasheet | YB | Bulk | Obsolete | LED | Yellow | White | Diffused | - | - | - | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB03KW01-12-FJIND PB ILLUM RECT LB SER GRN SLD |
3,820 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 12V | 60mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB03KW01-05-FJIND PB ILLUM RECT LB SER GRN SLD |
1,028 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 5V | 115mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB02KW01-12-JFIND PB ILLUM RND LB SER GRN SLD |
4,677 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Green | Green | Clear | AC | 12V | 60mA | Round | 0.87" (22.10mm) | 19.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB02KW01-12-JCIND PB ILLUM RND LB SER RED SLD |
3,302 |
|
Datasheet | LB | Box | Obsolete | Incandescent | Red | Red | Clear | AC | 12V | 60mA | Round | 0.87" (22.10mm) | 19.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
UB201KW03CF-3JBINDICATOR PB R/G ILL SQ FLAT CAP |
1,478 |
|
Datasheet | UB2 | Tray | Obsolete | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 3.5V Green, 2.1V Red | 25mA Green, 30mA Red | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|

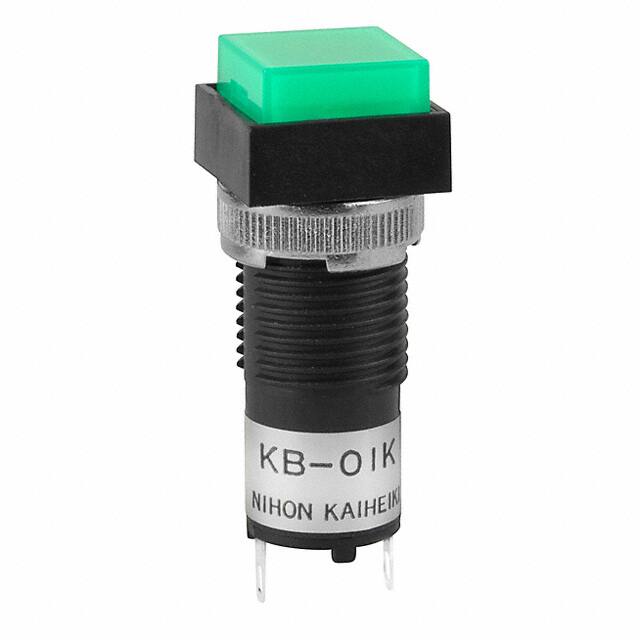

KB01KW01-12-FFSW PB ILLUM SQ GREEN SLD MOUNT |
4,486 |
|
Datasheet | KB | Tray | Obsolete | Incandescent | Green | Green | Diffused | AC | 12V | 60mA | Round | 0.48" (12.19mm) | 11.60mm | Square with Flat Top | - | - | - | - | - | - |
