Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6561205304FLED 1/2" FLAT GRN 120AC/DC TERM |
252 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | AC/DC | 120V | 5mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 450mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
5571442203FLED MINI PANEL YELLOW/BLUE 5V |
199 |
|
Datasheet | 557 | Bulk | Active | LED | Blue, Yellow | - | - | DC | 5V Blue, 5V Yellow | 16mA Blue, 16mA Yellow | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q6F3CXXB12ELED PANEL MOUNT INDICATOR BLUE |
1,047 |
|
Datasheet | Q6 | Bag | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P7CXXB02ELED PANEL MOUNT INDICATOR BLUE |
274 |
|
Datasheet | Q8 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

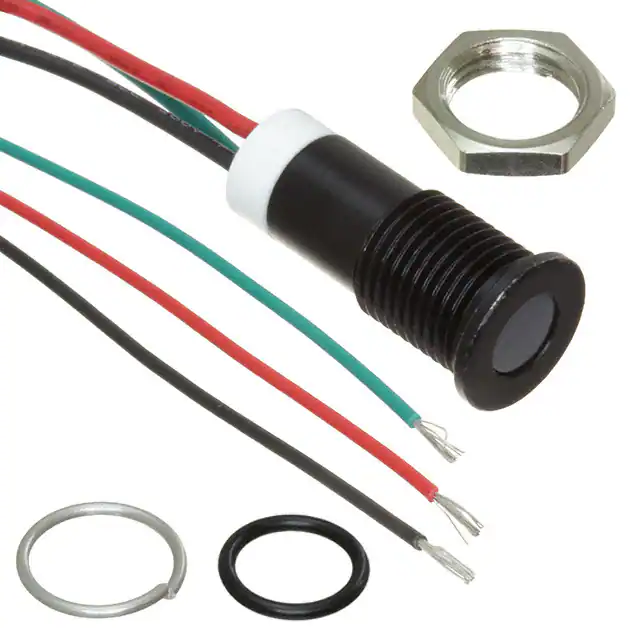

Q8F7BZZRYG02ELED INDICATOR 8MM FLUSH TRI COLO |
1,629 |
|
Datasheet | Q8 | Bulk | Active | LED | Green, Red, Yellow | - | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 10mcd Green, 15mcd Red, 6mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3CZZRYG12ELED PM INDICATOR FLUSH GR/RD/YLW |
224 |
|
Datasheet | Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 12V Green, 12V Red, 12V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 10mcd Green, 15mcd Red, 6mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
DX1093/RDLED PANEL INDICATOR RED 2V |
391 |
|
Datasheet | DX1093 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | - | - | PC Pin | IP66 | - |
|
Q8F3BZZRYG24ELED PMI FLUSH GRN/RED/YLW |
621 |
|
Datasheet | Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V Green, 24V Red, 24V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 10mcd Green, 15mcd Red, 6mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12P1BXXB12EINDICATOR 12V 12MM PROMINENT BLU |
590 |
|
Datasheet | Q12 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 800mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F3CZZRYG12ELED PMI FLUSH GRN/RED/YLW |
473 |
|
Datasheet | Q14 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 12V Green, 12V Red, 12V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 30mcd Green, 180mcd Red, 30mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F5CXXHG02EINDICATOR 8MM PM FLUSH GREEN POT |
159 |
|
Datasheet | Q8 | Tray | Active | LED | Green | Green | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 300mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F3BZZRYG24ELED PMI FLUSH GRN/RED/YLW |
586 |
|
Datasheet | Q14 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V Green, 24V Red, 24V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 30mcd Green, 180mcd Red, 30mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
QRM85BXXG02ELED PMI REAR MOUNT GREEN |
698 |
|
Datasheet | QRM | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q10F5SXXSG02ELED PANEL IND GREEN 2.2V IP67 |
243 |
|
Datasheet | Q10 | Bag | Active | LED | Green | - | - | Vf (Typ), If (Max) | 3.3V | 20mA | Round | 0.394" (10.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 1200mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
QRM85BXXY02ELED PMI REAR MOUNT YELLOW |
125 |
|
Datasheet | QRM | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q10F5SXXSG12ELED PANEL INDICATOR GRN 12V IP67 |
331 |
|
Datasheet | Q10 | Bag | Active | LED | Green | - | - | DC | 12V | 20mA | Round | 0.394" (10.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
PM5-B5G3.4VPANEL MOUNT ASSEM 5MM GREEN |
567 |
|
Datasheet | PM5 | Bag | Active | LED | Green | Green | Fresnel | Vf (Typ), If (Max) | 3.4V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|
S18DLGRYPINDICATOR DAYLIGHT GRN/RED |
1,679 |
|
Datasheet | - | Box | Active | LED | Green, Red, Yellow | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.709" (18.00mm) | - | Round with Flat Top | 2.3mcd Green, 1.4mcd Red, 1.2mcd Yellow | - | - | Wire Leads | IP67, IP69K, NEMA 4X | - |
|
S18LGRBNS18 EZ-LIGHT - 18 MM - IP67T |
1,954 |
|
Datasheet | S18L | Box | Active | LED | Red, Green, Blue (RGB) | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.71" (18.00mm) | - | Round with Flat Top | 1.1mcd Red, 4.1mcd Green, 0.6mm Blue | - | - | Wire Leads - 78.74" (2m) | IP67, IP69K, NEMA 4X | - |
|
S18LGRYPTINDICATOR EZ-LIGHT GRN/RED/YEL |
2,320 |
|
Datasheet | - | Box | Active | LED | Green, Red, Yellow | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.709" (18.00mm) | - | Round with Flat Top | 4.1mcd Green, 1.1mcd Red, 0.8mcd Yellow | - | - | Screw Terminal | IP67, IP69K, NEMA 4X | - |
