Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL22SFLG24PLT LIGHT 24 VAC/DC GREEN LED |
1,342 |
|
Datasheet | PL | Box | Active | LED | Green | - | - | AC/DC | 24V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLW110PLT LIGHT 110 VAC/DC CLEAR LED |
4,906 |
|
Datasheet | PL | Box | Active | LED | White | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLY110PLT LIGHT 110 VAC/DC YELLOW LED |
3,504 |
|
Datasheet | PL | Box | Active | LED | Yellow | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLW24PLT LIGHT 24 VAC/DC CLEAR LED |
3,585 |
|
Datasheet | PL | Box | Active | LED | White | - | - | AC/DC | 24V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLY24PLT LIGHT 24 VAC/DC YELLOW LED |
4,213 |
|
Datasheet | PL | Box | Active | LED | Yellow | - | - | AC/DC | 24V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|

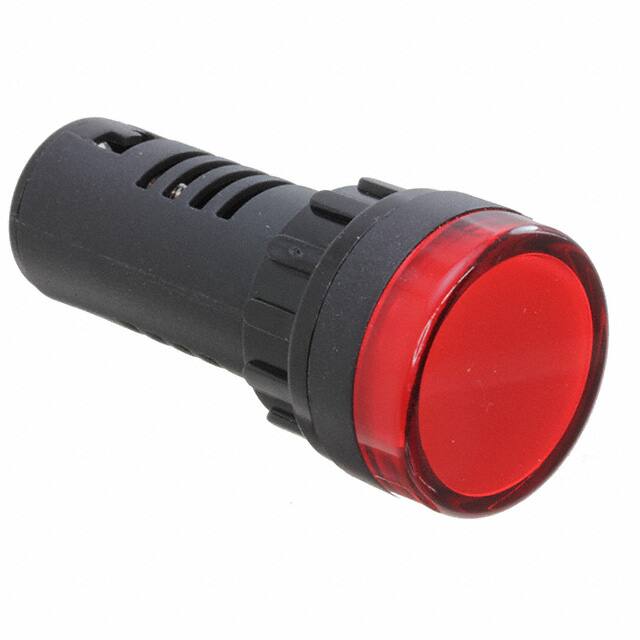

PL22SFLR24PLT LIGHT 24 VAC/DC RED LED |
1,755 |
|
Datasheet | PL | Box | Active | LED | Red | - | - | AC/DC | 24V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLG110PLT LIGHT 110 VAC/DC GREEN LED |
4,570 |
|
Datasheet | PL | Box | Active | LED | Green | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22SFLR110PLT LIGHT 110 VAC/DC RED LED |
2,453 |
|
Datasheet | PL | Box | Active | LED | Red | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22CHLG110PLT LIGHT 110 VAC/DC GREEN LED |
2,081 |
|
Datasheet | PL | Box | Active | LED | Green | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
PL22CHLR110PLT LIGHT 110 VAC/DC RED LED |
2,215 |
|
Datasheet | PL | Box | Active | LED | Red | - | - | AC/DC | 110V | 18mA | Round | 0.866" (22.00mm) | 29.00mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
