Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5-S17W110ACPANEL MOUNT ASSEM WHITE, 12.7MM |
4,269 |
|
Datasheet | PM5 | Bag | Obsolete | LED | White | White | Fresnel | AC | 110V | 20mA | Round | 0.50" (12.70mm) | 10.20mm Dia | Round with Flat Top | 1200mcd | - | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PM5-A7R110ACPANEL MOUNT ASSEM 8.1MM RED |
4,474 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Red | Red | Fresnel | AC | 110V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 600mcd | 630nm | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PM5-A7Y110ACPANEL MOUNT ASSEM 8.1MM YELLOW |
4,565 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Yellow | Yellow | Fresnel | AC | 110V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 600mcd | 585nm | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

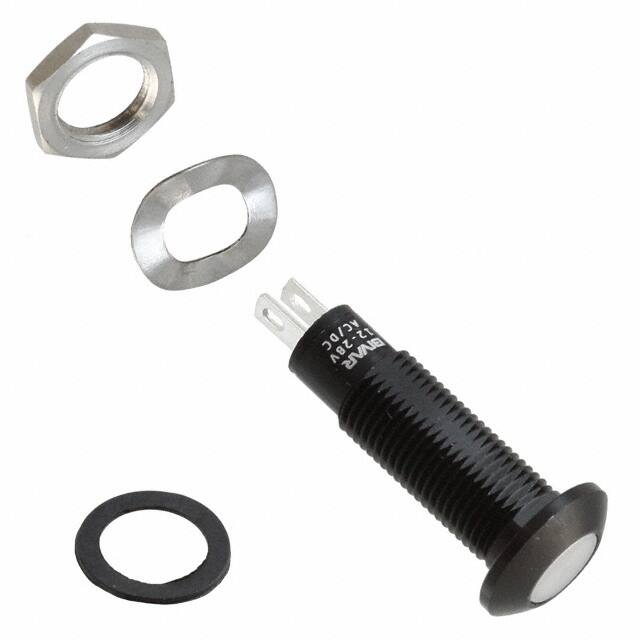

PM5-A7W28VPANEL MOUNT ASSEM 8.1MM WHITE |
4,405 |
|
Datasheet | PM5 | Bag | Obsolete | LED | White | White | Fresnel | AC/DC | 12V ~ 28V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 1200mcd | - | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PM5-A7W110ACPANEL MOUNT ASSEM 8.1MM WHITE |
3,327 |
|
Datasheet | PM5 | Bag | Obsolete | LED | White | White | Fresnel | AC | 110V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 1200mcd | - | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PM5-A7B28VPANEL MOUNT ASSEM 8.1MM BLUE |
2,424 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Blue | Blue | Fresnel | AC/DC | 12V ~ 28V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 400mcd | 465nm | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
PM5-B5Y28VPANEL MOUNT ASSEM 5MM YELLOW |
1,137 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Yellow | Yellow | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 87mcd | 585nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|
PM5-B5G28VPANEL MOUNT ASSEM 5MM GREEN |
1,413 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Green | Green | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|
PM5-A12R28VPANEL MOUNT ASSEM RED, 6.1MM |
2,653 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Red | Red | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.24" (6.10mm) | 6.70mm Dia | Round with Flat Top | 39mcd | 660nm | 120° | PC Pin | IP67 | - |
|
PM5-A12G28VPANEL MOUNT ASSEM GREEN, 6.1MM |
4,030 |
|
Datasheet | PM5 | Bag | Obsolete | LED | Green | Green | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.24" (6.10mm) | 6.70mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | PC Pin | IP67 | - |
