Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDLB-0-2701-9923-ILONG BODY PMI RND .230" LED 28V |
3,766 |
|
Datasheet | CDLB | Bulk | Active | LED | - | Yellow | - | DC | 28V | 20mA | Round | 0.24" (6.00mm) | - | Round with Domed Top | 219mcd | 590nm | 60° | PC Pin | IP67 | - |
|

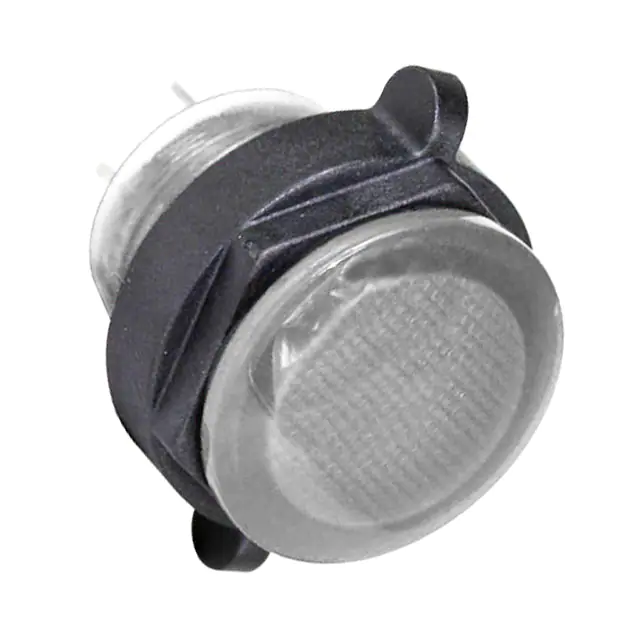

CNX722C900120TLED PANEL IND WHITE 120V IP67 |
3,431 |
|
Datasheet | CNX722 | Bulk | Active | LED | White | White | Clear | AC | 120V | 8mA | Round | 0.91" (23.11mm) | 25.60mm Dia | Round with Domed Top | 644mcd | - | - | Quick Connect - 0.187" (4.7mm) | IP67 | - |
|

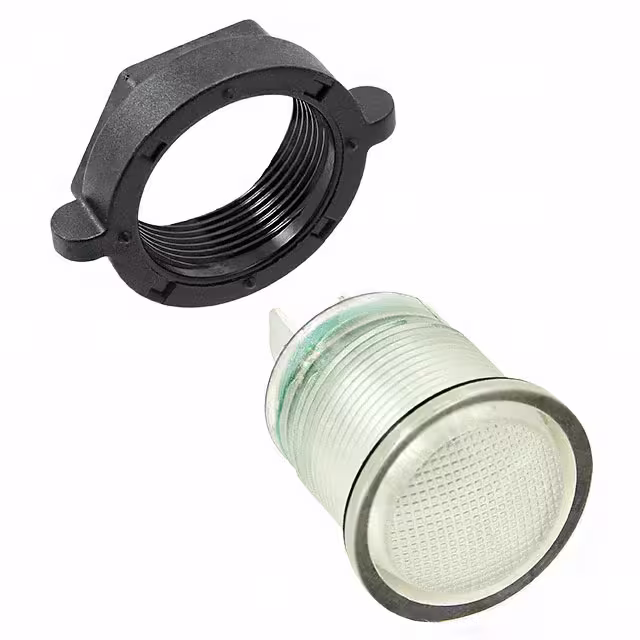

CNX722C900FVTIND PMI 22MM WHT FLEXVOLT SOLDER |
1,317 |
|
Datasheet | CNX 722FV | Bulk | Active | LED | White | - | - | DC | 5V ~ 28V | 20mA | Round | 0.88" (22.35mm) | 25.60mm Dia | Round with Domed Top | 1300mcd ~ 1700mcd | - | - | Solder Lug | IP67, NEMA 6P | - |
|
CNX714C401120WLED PANEL IND YELLOW 120V IP67 |
4,268 |
|
Datasheet | CNX714 | Bulk | Active | LED | Yellow | Yellow | - | AC | 120V | 8mA | Round | 0.55" (14.00mm) | 17.00mm Dia | Round with Domed Top | 245mcd | - | - | Wire Leads - 6" (152.40mm) | IP67 | - |
|

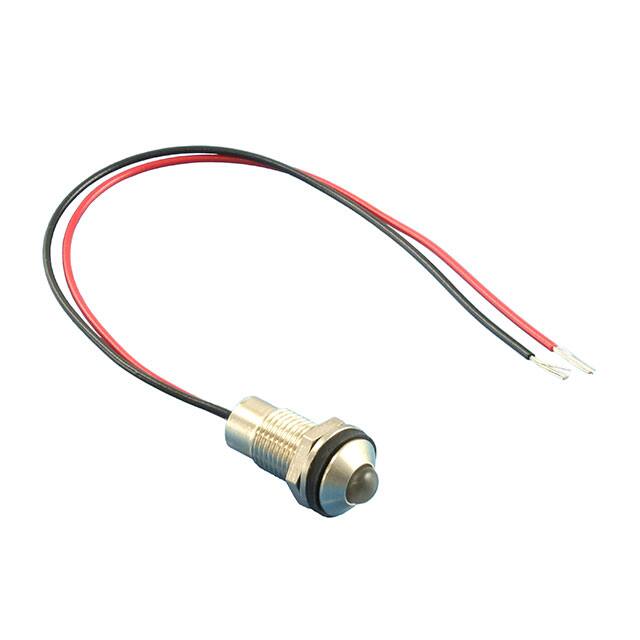

CCLB-1-3046-9923-ISEALED LED INDICATOR MID ULTRA R |
4,905 |
|
Datasheet | CCLB | Bulk | Active | LED | Red | - | - | DC | 28V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 900mcd | 626nm | 30° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CD-1-8712-9933-IPMI DIA .236" (6MM) WHITE 26V |
2,724 |
|
Datasheet | CD | Bag | Active | LED | - | White | - | DC | 28V | 20mA | Round | 0.236" (6.00mm) | - | Round with Domed Top | 250mcd | - | 30° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CCLB-1-3048-9923-ISEALED LED INDICATOR SUPER ULTRA |
4,342 |
|
Datasheet | CCLB | Bulk | Active | LED | Amber | - | - | DC | 28V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 1300mcd | 592nm | 30° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CNX718N50028TLED 18MM GREEN 28V TAB PNL MNT |
4,096 |
|
Datasheet | CNX718 | Bulk | Active | LED | Green | Clear | Fresnel | DC | 28V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2400mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
1092M1-125VACLED PANEL INDICATOR RED 125V |
4,243 |
|
Datasheet | 1092 | Bulk | Active | LED | Red | Red | Diffused | AC | 125V | 25mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 13000mcd | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
1092A5-250VACLED PMI 5MM GREEN HI DOME WIRE |
2,015 |
|
Datasheet | 1092 | Bag | Active | LED | Green | Green | Diffused | AC | 250V | 25mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 12000mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
