Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCLB-1-3048-9908-ISEALED LED INDICATOR SUPER ULTRA |
1,282 |
|
Datasheet | CCLB | Bulk | Active | LED | Amber | - | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 1300mcd | 592nm | 30° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CD-1-8711-9909-IPMI DIA .236" (6MM) BLUE 12V |
2,617 |
|
Datasheet | CD | Bag | Active | LED | - | Blue | - | DC | 12V | 20mA | Round | 0.236" (6.00mm) | - | Round with Domed Top | 2300mcd | 470nm | 25° | Wire Leads - 6" (152.40mm) | IP67 | - |
|

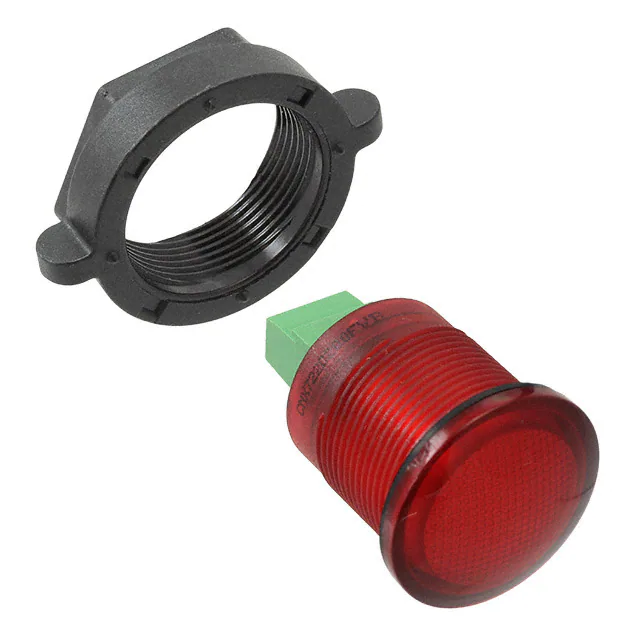

CNX722C200FVBIND PMI 22MM RED FLEXVOLT SCREW |
2,724 |
|
Datasheet | CNX 722FV | Bulk | Active | LED | Red | - | - | DC | 5V ~ 28V | 20mA | Round | 0.88" (22.35mm) | 25.60mm Dia | Round with Domed Top | 1300mcd ~ 1900mcd | - | - | - | IP67, NEMA 6P | - |
|
|
CCLB-1-3061-9909-ISEALED LED INDICATOR WHITE |
2,521 |
|
Datasheet | CCLB | Bulk | Active | LED | White | - | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CD-1-2700-9920-IPMI DIA .236" (6MM) GREEN 120VAC |
1,084 |
|
Datasheet | CD | Bag | Active | LED | - | Green | - | AC | 120V | 20mA | Round | 0.236" (6.00mm) | - | Round with Domed Top | 199mcd | 574nm | 60° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CNX718N200120WLED 18MM RED 120V WIRE PNL MNT |
2,280 |
|
Datasheet | CNX718 | Bulk | Active | LED | Red | Clear | Fresnel | AC | 120V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2800mcd | - | - | Wire Leads - 6" (152.40mm) | - | - |
|
CNX718N20012TLED 18MM RED 12V TAB PNL MNT |
2,507 |
|
Datasheet | CNX718 | Bulk | Active | LED | Red | Clear | Fresnel | DC | 12V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2800mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
CL-1-2006-9910-ILED INDICATOR, IP67 SEALED AND V |
4,333 |
|
Datasheet | CL | Bulk | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.551" (14.00mm) | - | Round with Domed Top | 100mcd | 627nm | 30° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
44-NKG28H-CGOPMI .250" LED 28V TAB CLEAR GREE |
1,987 |
|
Datasheet | 40 | Bulk | Active | LED | Green | Green | Clear | DC | 28V | 15mA | Round | 0.25" (6.35mm) | 8.50mm Dia | Round with Flat Top | 10000mcd | 520nm | 15° | PC Pin | - | - |
|
1092D6-28VPMI RND .5" LED 28V WIRE SEMI-DO |
2,457 |
|
Datasheet | 1092 | Bag | Active | LED | Blue | Blue | Clear | DC | 28V | 25mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 3200mcd | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
