Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PML50BFVWLED BLUE ROUND PANEL MOUNT |
3,671 |
|
Datasheet | PML50 | Bulk | Active | LED | Blue | Blue | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 270mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
CNX_480_1_RTP_12PNLMNT INDCTR BLK ANDZD ALUM RED |
3,129 |
|
Datasheet | CNX 480 | Bag | Active | LED | Red | Red | Fresnel | Vf (Typ), If (Max) | 1.8V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 295mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
PCL2224V150BPMI RND 22MM LED 24V SCREW BLOCK |
3,860 |
|
- |
PCL22 | Bulk | Active | LED | Green, Red | - | Diffused | AC/DC | 24V | 50mA | Round | 0.88" (22.30mm) | 29.50mm Dia | Round with Flat Top | 75mcd | 516nm Green, 625nm Red | 110° | Screw Terminal | IP65 | - |
|
PML50SGFVW.688" DIA (17.5MM) GREEN LED PAN |
1,526 |
|
Datasheet | PML50 | Bulk | Active | LED | Green | Green | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Domed Top | 1770mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
PML50WFVWLED WHITE ROUND PANEL MOUNT |
3,464 |
|
Datasheet | PML50 | Bulk | Active | LED | White | White | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 2980mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|

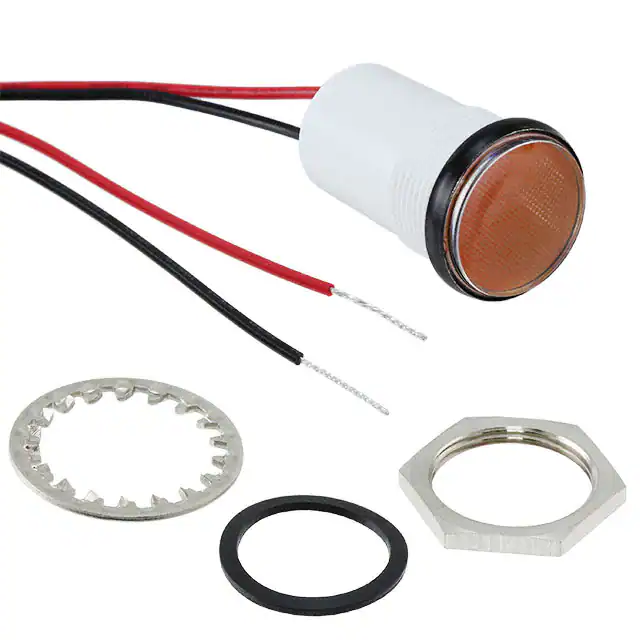

PML50YFVWLED YELLOW ROUND PANEL MOUNT |
1,224 |
|
Datasheet | PML50 | Bulk | Active | LED | Yellow | Yellow | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 2020mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
CCLB-1-3047-9920-ISEALED LED INDICATOR SUPER ULTRA |
3,830 |
|
Datasheet | CCLB | Bulk | Active | LED | Green | - | - | AC | 120V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 5490mcd | 520nm | 20° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CNX714C400FVWIND TUFFLED FLEXVOLT 14MM YELLOW |
1,440 |
|
Datasheet | CNX 714FV | Bulk | Active | LED | Yellow | - | - | - | 5V ~ 28V | - | Round | 0.55" (13.97mm) | 17.00mm Dia | Round with Domed Top | 140mcd | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 6P | - |
|
CCLB-1-3061-9933-ISEALED LED INDICATOR WHITE |
2,837 |
|
Datasheet | CCLB | Bulk | Active | LED | White | - | - | DC | 28V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CL-1-2005-9910-ILED INDICATOR, IP67 SEALED AND V |
3,763 |
|
Datasheet | CL | Bulk | Active | LED | Green, Red | - | - | DC | 24V Green, 24V Red | 20mA | Round | 0.551" (14.00mm) | - | Round with Domed Top | 130mcd Green, 750mcd Red | 574nm Green, 645nm Red | 50° | Wire Leads - 6" (152.40mm) | IP67 | - |
