Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6091M7-12VINDICATOR SOLID STATE YLW PNL MT |
172 |
|
Datasheet | 6091M | Bag | Active | LED | Yellow | - | - | - | 12V | - | Round | 0.38" (9.65mm) | 9.90mm Dia | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | NEMA 13 | Oil Resistant |
|
PML50YBFVWPML50 HARSH ENVIRONMENT SERIES I |
179 |
|
Datasheet | PML50 | Bag | Active | LED | Blue, Yellow | - | - | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.50mm) | 17.78mm Dia | Round with Flat Top | 2370mcd Blue, 762mcd Yellow | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
|
CNX714C600FVWIND TUFFLED FLEXVOLT 14MM BLUE |
158 |
|
Datasheet | CNX 714FV | Bulk | Active | LED | Blue | - | - | - | 5V ~ 28V | 30mA | Round | 0.55" (13.97mm) | - | Round with Domed Top | 495mcd | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 6P | - |
|

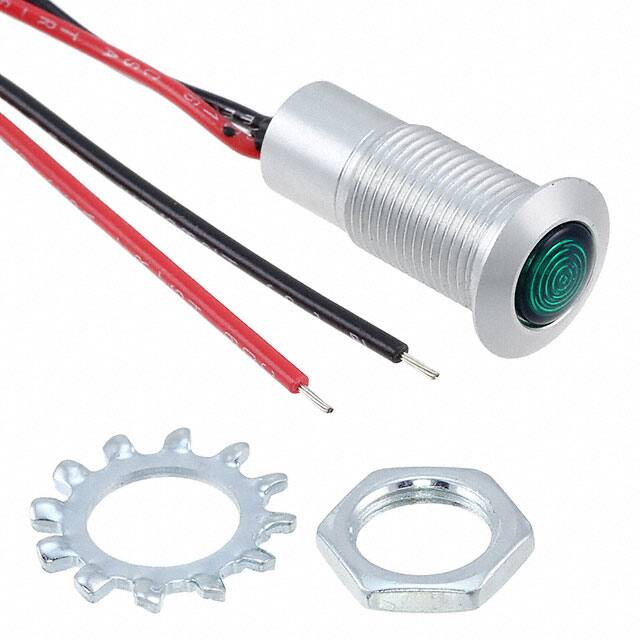

CNX_480_2_GTP_12PNLMNT INDCTR CLR ANDZD ALUM GRN |
488 |
|
Datasheet | CNX 480 | Bag | Active | LED | Green | Green | Fresnel | Vf (Typ), If (Max) | 1.9V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 415mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
|
CNX_480_2_BTP_12PMT INDCTR CLR ANDZD ALUM BLUE |
498 |
|
Datasheet | CNX 480 | Bag | Active | LED | Blue | Blue | Fresnel | Vf (Typ), If (Max) | 3V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 1125mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
CNX_480_1_BTP_12PMT INDCTR BLK ANDZD ALUM BLUE |
485 |
|
Datasheet | CNX 480 | Bag | Active | LED | Blue | Blue | Fresnel | Vf (Typ), If (Max) | 3V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 1125mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
CNX_482_1_YTP_12PMT INDCTR MS BLK ANDZD ALUM YLW |
500 |
|
Datasheet | CNX 482 | Bag | Active | LED | Yellow | Yellow | Fresnel | Vf (Typ), If (Max) | 1.9V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 330mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
|
CNX_482_2_RTP_12PMT INDCTR MS CLR ANDZD ALUM RED |
500 |
|
Datasheet | CNX 482 | Bag | Active | LED | Red | Red | Fresnel | Vf (Typ), If (Max) | 1.8V | 20mA | Round | 0.40" (10.16mm) | 12.70mm Dia | Round with Domed Top | 295mcd | - | - | Wire Leads - 12" (304.80mm) | NEMA 4 | - |
|
CNX718N20028TLED 18MM RED 28V TAB PNL MNT |
126 |
|
Datasheet | CNX718 | Bulk | Active | LED | Red | Clear | Fresnel | DC | 28V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2800mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
CNX718N90005WLED 18MM WHITE 5V WIRE PNL MNT |
194 |
|
Datasheet | CNX718 | Bulk | Active | LED | White | Clear | Fresnel | DC | 5V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2500mcd | - | - | Wire Leads - 6" (152.40mm) | - | - |
