Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L58D-G24-WLED PANEL INDICATOR GRN 24V |
746 |
|
Datasheet | L58 | Bag | Not For New Designs | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.19" (4.83mm) | 7.11mm Dia | Round with Domed Top | 20mcd | - | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
6010QM1INDICATOR NEON RED PANEL MNT |
139 |
|
Datasheet | 6010Q | Bag | Not For New Designs | Neon | Red | - | - | AC | 105V ~ 125V | - | Round | 0.38" (9.65mm) | 9.90mm Dia | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | Oil Resistant |
|

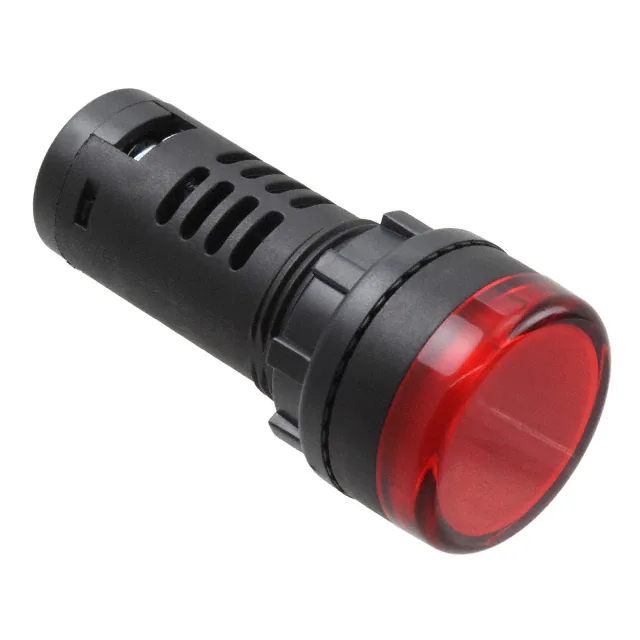

PCL2224V100BPMI RND 22MM LED 24V SCREW BLOCK |
105 |
|
Datasheet | PCL22 | Bulk | Active | LED | Red | Red | Diffused | AC/DC | 24V | 50mA | Round | 0.88" (22.30mm) | 29.50mm Dia | Round with Flat Top | 75mcd | 625nm | 110° | Screw Terminal | IP65 | - |
|

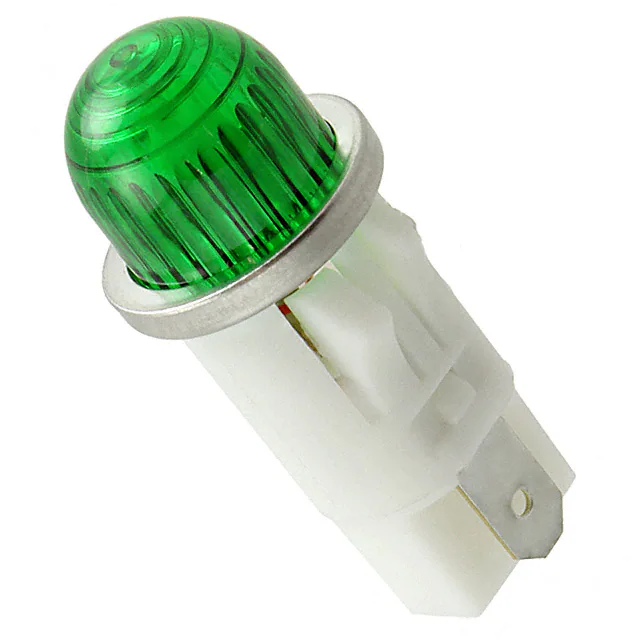

1052QA5INDICATOR NEON GREEN PANEL MNT |
179 |
|
Datasheet | 1052QA | Bag | Not For New Designs | Neon | Green | Green | - | AC | 105V ~ 125V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
6091M1-12VINDICATOR SOLID STATE RED PNL MT |
138 |
|
Datasheet | 6091M | Bag | Active | LED | Red | - | - | - | 12V | - | Round | 0.38" (9.65mm) | 9.90mm Dia | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | NEMA 13 | Oil Resistant |
|

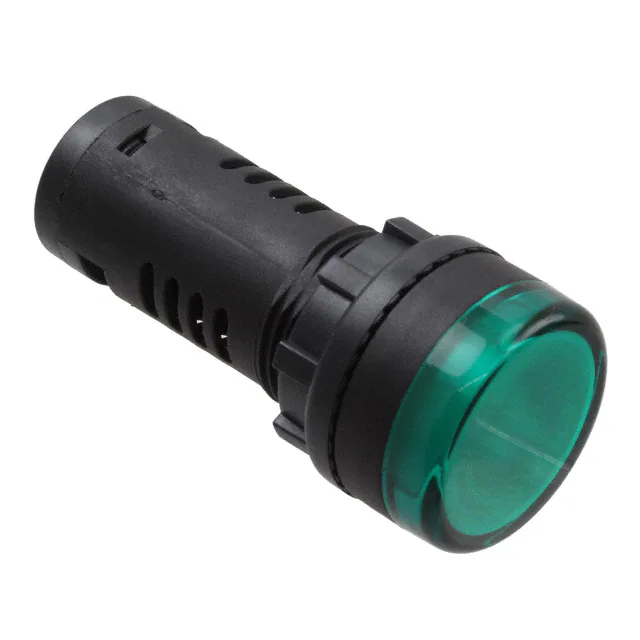

PCL2224V500BPMI RND 22MM LED 24V SCREW BLOCK |
130 |
|
Datasheet | PCL22 | Bulk | Active | LED | Green | Green | Diffused | AC/DC | 24V | 50mA | Round | 0.88" (22.30mm) | 29.50mm Dia | Round with Flat Top | 75mcd | 516nm | 110° | Screw Terminal | IP65 | - |
|
PCL2224V400BPMI RND 22MM LED 24V SCREW BLOCK |
109 |
|
Datasheet | PCL22 | Bulk | Active | LED | White | White | Diffused | AC/DC | 24V | 50mA | Round | 0.88" (22.30mm) | 29.50mm Dia | Round with Flat Top | 75mcd | 445nm | 110° | Screw Terminal | IP65 | - |
|
6013M5INDICATOR NEON GREEN PANEL MNT |
1,214 |
|
Datasheet | 6013M | Bag | Not For New Designs | Neon | Green | - | - | AC | 208V ~ 250V | - | Round | 0.38" (9.65mm) | 9.90mm Dia | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | NEMA 13 | Oil Resistant |
|
6091M5-12VINDICATOR SOLID STATE GRN PNL MT |
102 |
|
Datasheet | 6091M | Bag | Active | LED | Green | - | - | - | 12V | - | Round | 0.38" (9.65mm) | 9.90mm Dia | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | NEMA 13 | Oil Resistant |
|
PML50SRFVW.688" DIA (17.5MM) RED LED PANEL |
744 |
|
Datasheet | PML50 | Bulk | Active | LED | Red | Red | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Domed Top | 780mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
