Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q22P1BXXB12AELED INDICATOR 22MM |
2,968 |
|
Datasheet | Q22 | Bulk | Active | LED | Blue | Blue | Diffused | AC/DC | 12V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Domed Top | 120mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q22P1BXXB24AELED INDICATOR 22MM |
2,628 |
|
Datasheet | Q22 | Bulk | Active | LED | Blue | Blue | Diffused | AC/DC | 24V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Domed Top | 120mcd | - | 100° | Solder Lug | IP67 | - |
|
|
QRM145BXXHG02ELED INDICATOR QRM6 |
2,277 |
|
Datasheet | QRM14 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | - | Round with Flat Top | 250mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
QRM65BXXSW24ELED INDICATOR QRM6 |
3,579 |
|
Datasheet | QRM6 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Flat Top | 1560mcd | - | 60° | Wire Leads - 8.268" (210.0mm) | IP67 | - |
|
|
Q22F1CXXSG28ELED INDICATOR 22MM |
4,008 |
|
Datasheet | Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 28V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Flat Top | 980mcd | - | 100° | Solder Lug | IP67 | - |
|
|
QRM65BXXSG24ELED INDICATOR QRM6 |
1,264 |
|
Datasheet | QRM6 | Bulk | Active | LED | Green | - | Diffused | DC | 24V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Flat Top | 2000mcd | - | 60° | Wire Leads - 8.268" (210.0mm) | IP67 | - |
|

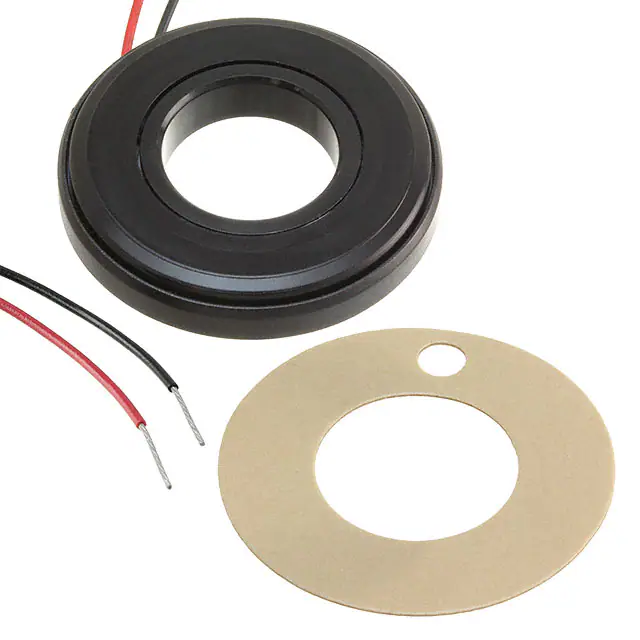

QH19028GC19MM HALO BLACK BODY TINTED LENS |
3,015 |
|
Datasheet | QH | Bag | Active | LED | Green | Green | Clear | DC | 12V ~ 26.4V | 4.2 ~ 20mA | Round | 0.748" (19.00mm) | 38.50mm Dia | Ring with Domed Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
QH19057YC19MM HALO YLW BODY FROSTED LENS |
1,272 |
|
Datasheet | QH | Bag | Active | LED | Yellow | White | Diffused | DC | 12V ~ 26.4V | 4.2 ~ 20mA | Round | 0.748" (19.00mm) | 38.50mm Dia | Ring with Domed Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F1AGXXHR12ELED INDICATOR 14MM |
4,317 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 800mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q22P1CXXSR12ELED INDICATOR 22MM |
1,225 |
|
Datasheet | Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Domed Top | 465mcd | - | 100° | Solder Lug | IP67 | - |
