Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q19P1BXXY12EINDICATOR 12V 19MM PROMINENT YEL |
1,850 |
|
Datasheet | Q19 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.75" (19.05mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

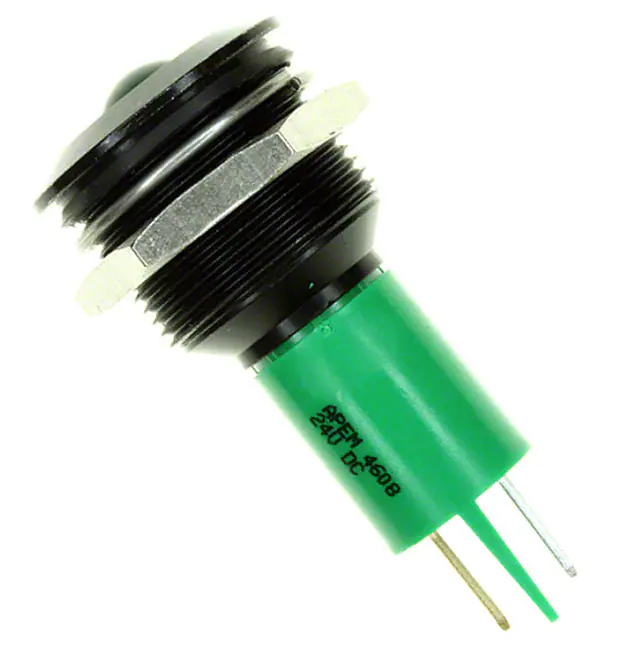

Q19P1BXXG24EINDICATOR 24V 19MM PROMINENT GRN |
4,816 |
|
Datasheet | Q19 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.75" (19.05mm) | 10.00mm Dia | Round with Domed Top | 60mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

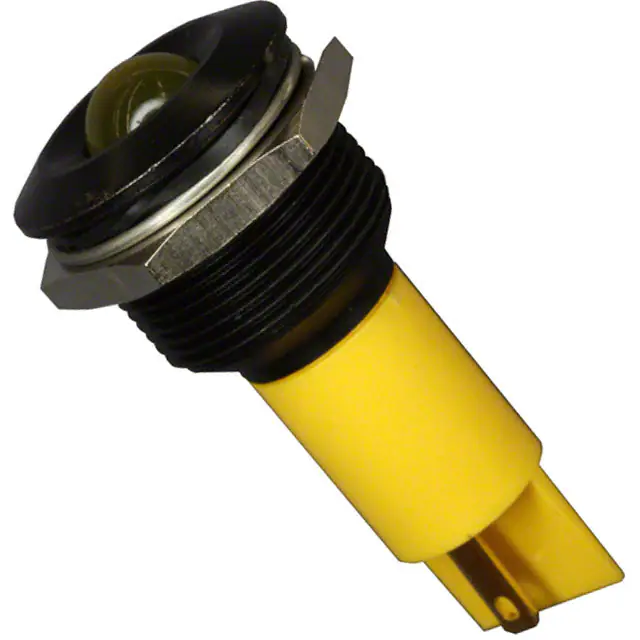

Q19P1BXXY24EINDICATOR 24V 19MM PROMINENT YEL |
1,532 |
|
Datasheet | Q19 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.75" (19.05mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F3CXXHR110ELED PMI 110VAC FLUSH RED |
3,567 |
|
Datasheet | Q14 | Bag | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 800mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F3CXXHR220ELED INDICATOR 14MM |
4,018 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | AC | 220V | 3mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 800mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8R5GZZRYG02ELED INDICATOR 8MM |
4,389 |
|
Datasheet | Q8 | Bulk | Active | LED | Green, Red, Yellow | Green, Red, Yellow | Diffused | DC | 1.8V ~ 3.3V | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd Green, 150mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8R5BZZRYG12ELED INDICATOR 8MM |
4,893 |
|
Datasheet | Q8 | Bulk | Active | LED | Green, Red, Yellow | Green, Red, Yellow | Diffused | DC | 12V Green, 12V Red, 12V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd Green, 150mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8R3CXXHG220ELED INDICATOR 8MM |
3,820 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Green | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 1900mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P7CXXW02ELED PM IND PROMINENT WHT |
4,708 |
|
Datasheet | Q8 | Bag | Active | LED | White | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P3CXXHB110ELED PMI PROMINENT BLUE |
3,857 |
|
Datasheet | Q8 | Bag | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | - | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
