Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q14P7CXXSB24LED INDICATOR 14MM |
2,612 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Colorless | Clear | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 2500mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | - | - |
|
|
Q16P7BXXSR02ELED INDICATOR 16MM |
4,883 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Colorless | Clear | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.63" (16.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 17000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8F3CXXHY220ELED INDICATOR 8MM |
2,547 |
|
Datasheet | Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 1560mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

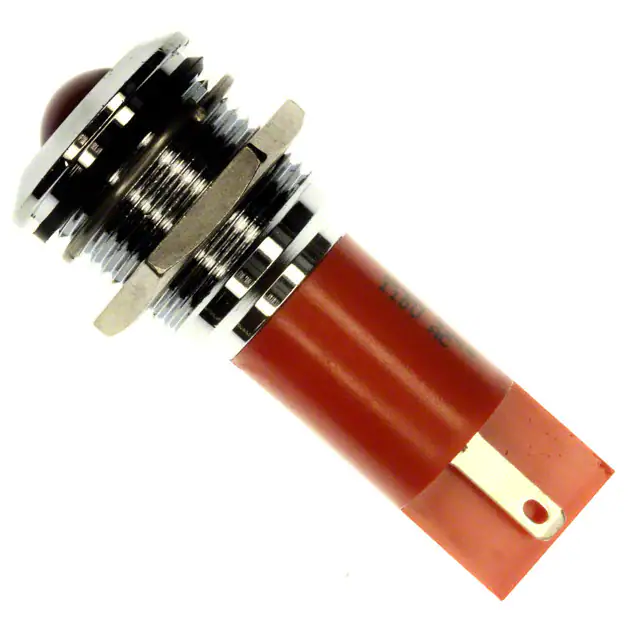

Q16P1CXXR110EINDICATOR 110V 16MM PROM RED |
3,270 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

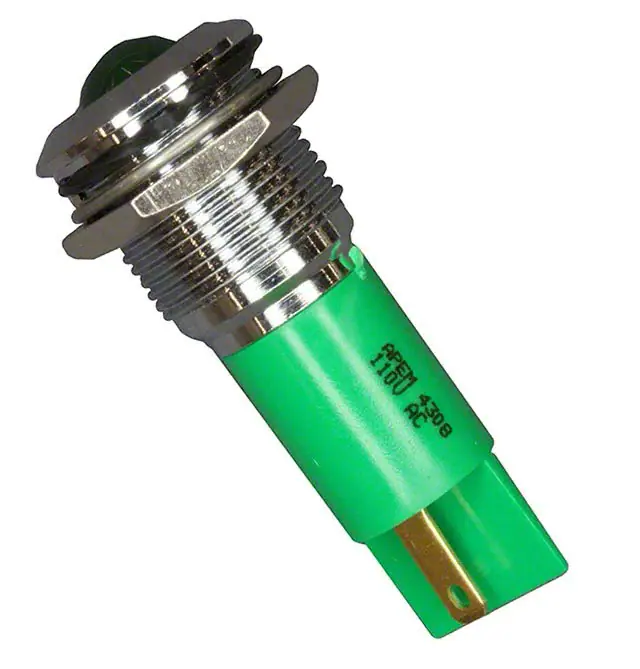

Q16P1CXXG110EINDICATOR 110V 16MM PROM GREEN |
1,398 |
|
Datasheet | Q16 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 60mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q16P1BXXR110EINDICATOR 110V 16MM PROM RED |
4,182 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

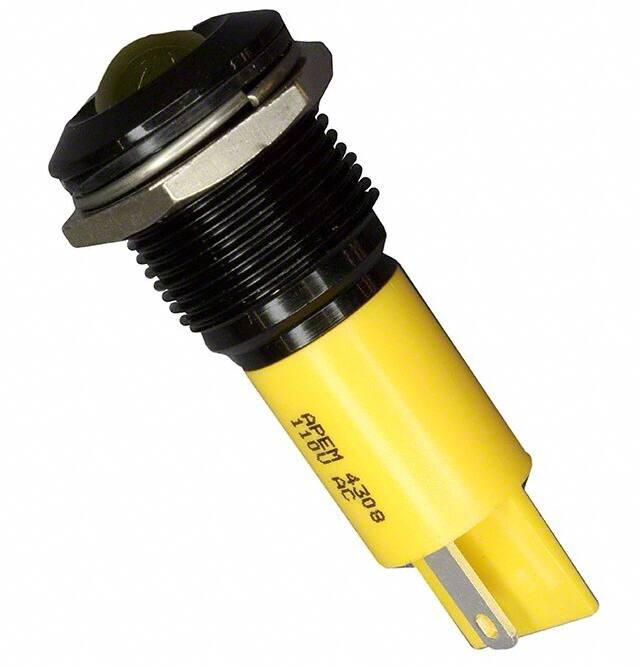

Q16P1BXXY110EINDICATOR 110V 16MM PROM YELLOW |
3,714 |
|
Datasheet | Q16 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q16F1CXXR110EINDICATOR 110V 16MM FLUSH RED |
1,025 |
|
Datasheet | Q16 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 10mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q16F1CXXG110EINDICATOR 110V 16MM FLUSH GREEN |
4,983 |
|
Datasheet | Q16 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

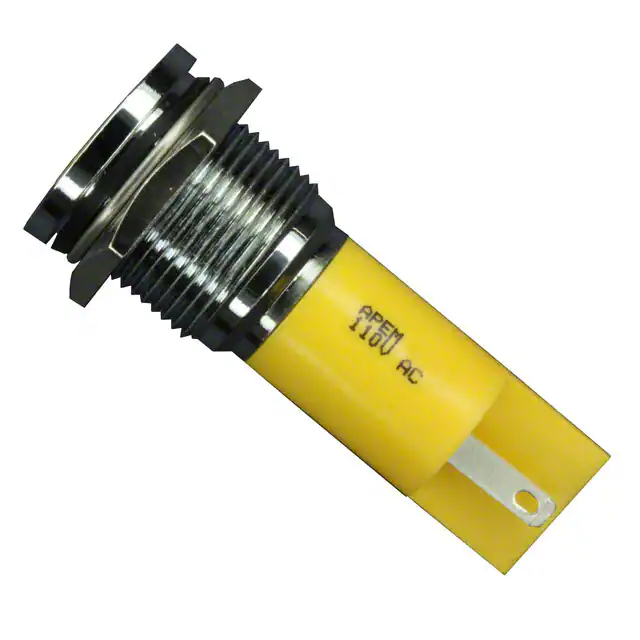

Q16F1CXXY110EINDICATOR 110V 16MM FLUSH YELLOW |
4,841 |
|
Datasheet | Q16 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
