Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q16FP3BPXXG12ELED INDICATOR 16MM |
4,703 |
|
- |
Q16 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.63" (16.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 5mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8P1BXXSW12ELED INDICATOR 8MM |
1,822 |
|
Datasheet | Q8 | Bulk | Active | LED | White | Colorless | Clear | DC | 12V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 2500mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P3CXXSR12ELED PANEL INDICATOR RED 12V |
1,999 |
|
Datasheet | Q14 | Bag | Active | LED | Red | Colorless | Clear | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 17000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F3BXXSR24ELED INDICATOR 14MM |
3,530 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Colorless | Clear | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 2000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F7BXXSR24ELED INDICATOR 14MM |
2,654 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Colorless | Clear | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 2000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F7GXXSR12ELED INDICATOR 14MM |
1,681 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Colorless | Clear | DC | 12V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 2000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

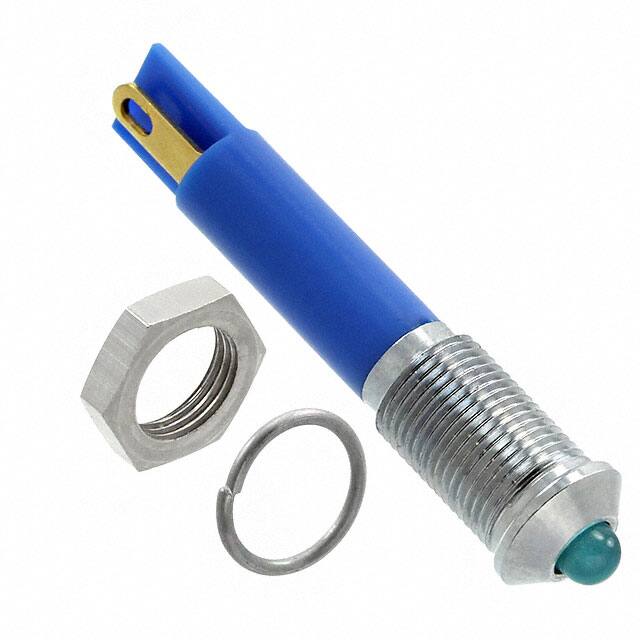

Q8P1CXXB24INDICATOR 24V 8MM PROMINENT BLUE |
2,984 |
|
Datasheet | Q8 | Bag | Discontinued at Digi-Key | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | - | - |
|
|
Q8F5BZZRYG02EINDICATOR 2V 8MM FLUSH R/Y/G |
3,444 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Q8R7BZZRYG02ELED INDICATOR 8MM |
3,175 |
|
Datasheet | Q8 | Bulk | Active | LED | Green, Red, Yellow | Green, Red, Yellow | Diffused | DC | 1.8V ~ 3.3V | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd Green, 150mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F1BXXB02ELED INDICATOR 14MM |
4,369 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 100mcd | - | 100° | Solder Lug | IP67 | - |
