Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q6P3BYYRG24ELED PM IND PROMINENT GRN/RD |
3,998 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | - | Diffused | DC | 24V Green, 24V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q6P3BYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
4,286 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6R3CYYRG24ELED PANEL MOUNT INDICATOR RD/GR |
4,436 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 24V Green, 24V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6P3CYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
4,321 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

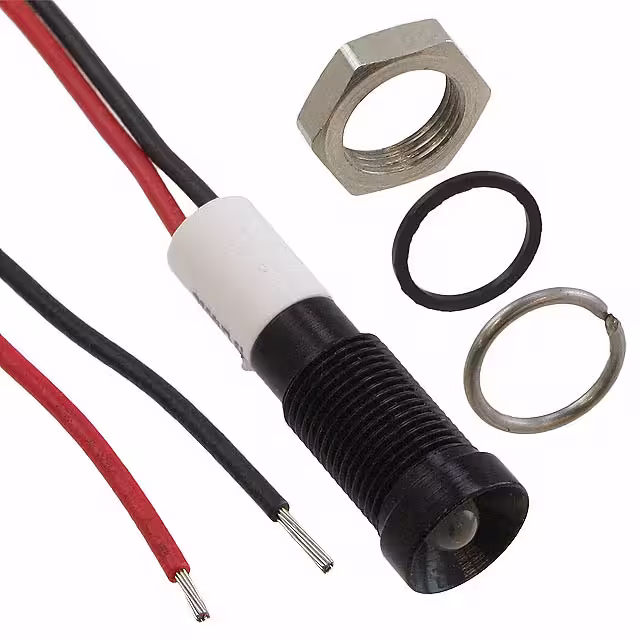

Q6R3BYYRG24ELED PANEL MOUNT INDICATOR RD/GR |
3,301 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 24V Green, 24V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6R3BYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
2,540 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q6R3CYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
1,797 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | - | Diffused | Vf (Typ), If (Max) | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P1CXXY220ELED INDICATOR 8MM |
4,368 |
|
Datasheet | Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q6P3BYYRG28ELED INDICATOR 6MM |
3,450 |
|
Datasheet | Q6 | Bulk | Active | LED | Green, Red | Green, Red | Diffused | DC | 28V Green, 28V Red | 20mA Green, 20mA Red | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Domed Top | 15mcd Green, 20mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8F1BXXR220ELED INDICATOR 8MM |
3,145 |
|
Datasheet | Q8 | Bulk | Active | LED | Red | Red | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Solder Lug | IP67 | - |
