Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL321-1Y01-BBLCK BOLT-IN PMI YELLOW LED |
3,828 |
|
Datasheet | * | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.236" (6.00mm) | - | Round with Domed Top | 15mcd | 585nm | 34° | - | - | - |
|

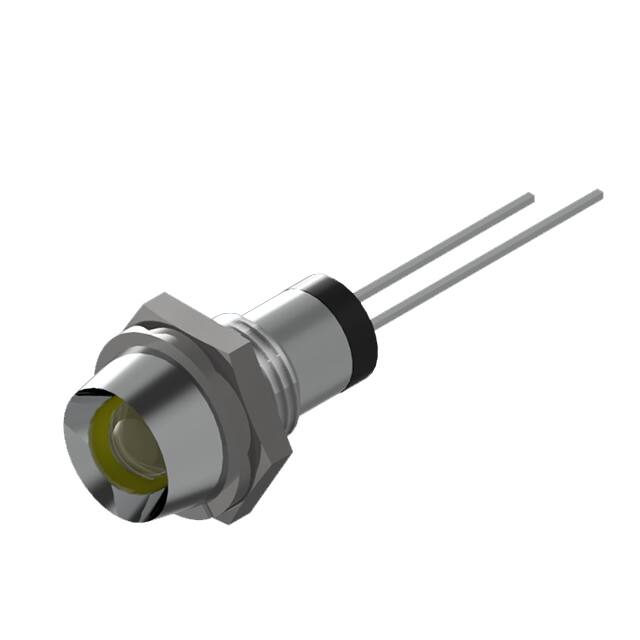

PL523-1Y01-BBLCK BOLT-IN PMI YELLOW LED |
4,960 |
|
Datasheet | * | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Flat Top | 27mcd | 585nm | 35° | - | - | - |
|
PL523-1R12-BBLCK BOLT-IN PMI RED LED |
4,315 |
|
Datasheet | * | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Flat Top | 35mcd | 635nm | 35° | - | - | - |
|
PL520-1R125MM LED PMI SNAP-IN RED |
1,698 |
|
Datasheet | * | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.25" (6.35mm) | - | Round with Domed Top | 39mcd | 635nm | 30° | - | - | - |
|
PL524-1Y01-SSLVR BOLT-IN PMI YELLOW LED |
2,543 |
|
Datasheet | * | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Domed Top | 27mcd | 585nm | 35° | - | - | - |
|
PL520-1G135MM LED PMI SNAP-IN GRN |
2,622 |
|
Datasheet | * | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.25" (6.35mm) | - | Round with Domed Top | 35mcd | 567nm Green | 30° | - | - | - |
|

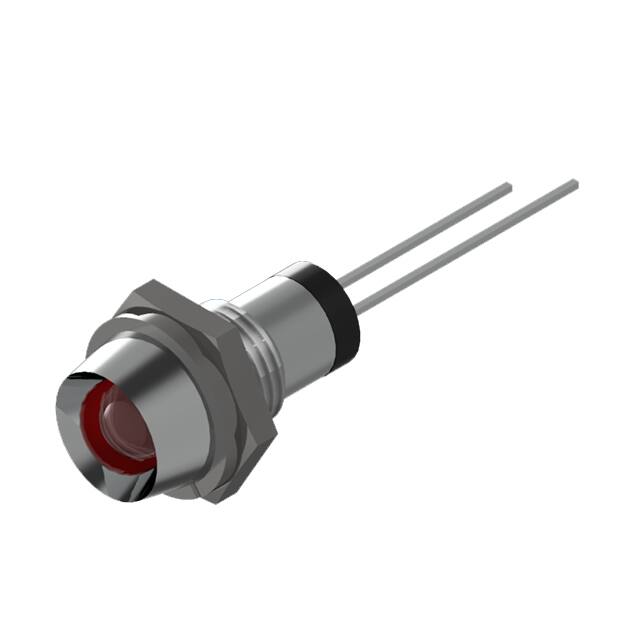

PL523-1R12-SSLVR BOLT-IN PMI RED LED |
4,482 |
|
Datasheet | * | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Flat Top | 35mcd | 635nm | 35° | - | - | - |
|
PL524-1R12-SSLVR BOLT-IN PMI RED LED |
1,545 |
|
Datasheet | * | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Domed Top | 35mcd | 635nm | 35° | - | - | - |
|
PL320-1R12-SSLVR BOLT-IN PMI RED LED |
1,280 |
|
Datasheet | * | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.236" (6.00mm) | - | Round with Flat Top | 15mcd | 635nm | 34° | - | - | - |
|
PL523-1Y01-SSLVR BOLT-IN PMI YELLOW LED |
4,767 |
|
Datasheet | * | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | - | Round | 0.31" (8.00mm) | - | Round with Flat Top | 27mcd | 585nm | 35° | - | - | - |
