Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M22N-BP-TWA-WALED PANEL INDICATOR WHT 6VAC/DC |
3,909 |
|
Datasheet | M22N | Bulk | Active | LED | White | White | Clear | AC/DC | 6V | 5mA | Round | 0.88" (22.30mm) | - | Round with Flat Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
|
M165-AY-24DLED PANEL INDICATOR YLW 24V |
1,040 |
|
Datasheet | M16 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC/DC | 24V | 8mA | Round | 0.63" (16.00mm) | 15.10mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP66 | Oil Resistant |
|
M165-JY-24DLED PANEL INDICATOR YLW 24V |
2,660 |
|
Datasheet | M16 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC/DC | 24V | 8mA | Round | 0.63" (16.00mm) | 21.00mm x 15.10mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP66 | Oil Resistant |
|
M22N-BN-TGA-GELED PANEL INDICATOR GREEN 230VAC |
4,245 |
|
Datasheet | M22N | Bulk | Active | LED | Green | Green | Clear | AC | 230V | 2mA | Round | 0.88" (22.30mm) | - | Round with Flat Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
|
M22R-ER-12AINDICATOR,RED,12V |
2,240 |
|
Datasheet | M22R | Bulk | Obsolete | LED | Red | - | - | AC | 12V | 20mA | Round | 0.88" (22.35mm) | 29.80mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|

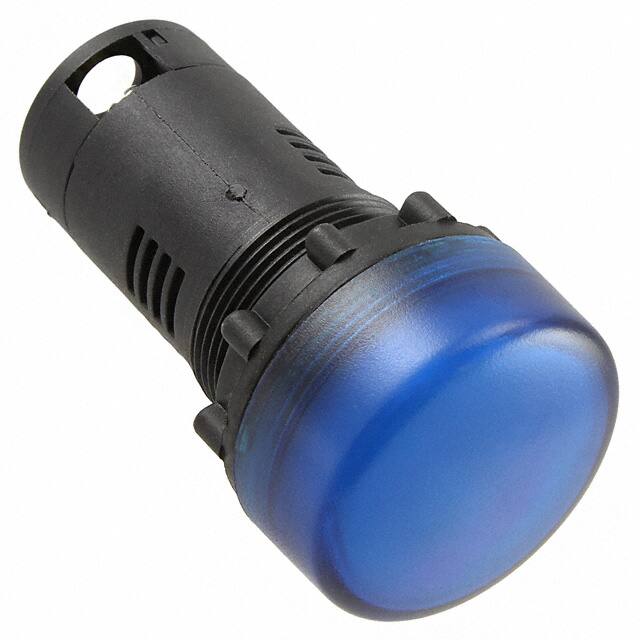

M22R-EA-12AINDICATOR,BLUE,12V |
1,108 |
|
Datasheet | M22R | Bulk | Obsolete | LED | Blue | - | - | AC | 12V | 20mA | Round | 0.88" (22.35mm) | 29.80mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
M22R-EY-T1INDICATOR YELLOW 120VAC |
4,668 |
|
Datasheet | M22R | Bulk | Obsolete | LED | Yellow | - | - | AC | 120V | - | Round | 0.88" (22.35mm) | 29.80mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
M2PA-5011INCAND PANEL INDICATOR |
2,457 |
|
Datasheet | M2P | Bulk | Obsolete | Incandescent | - | - | - | - | - | - | Round | 1.14" (29.00mm) | 25.00mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
M22-FG-5PILOT LIGHT 5V INCAND ROUND GRN |
1,823 |
|
Datasheet | M22 | Bulk | Obsolete | Incandescent | Green | Green | Diffused | AC/DC | 5V | 200mA | Round | 0.88" (22.35mm) | 29.70mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|

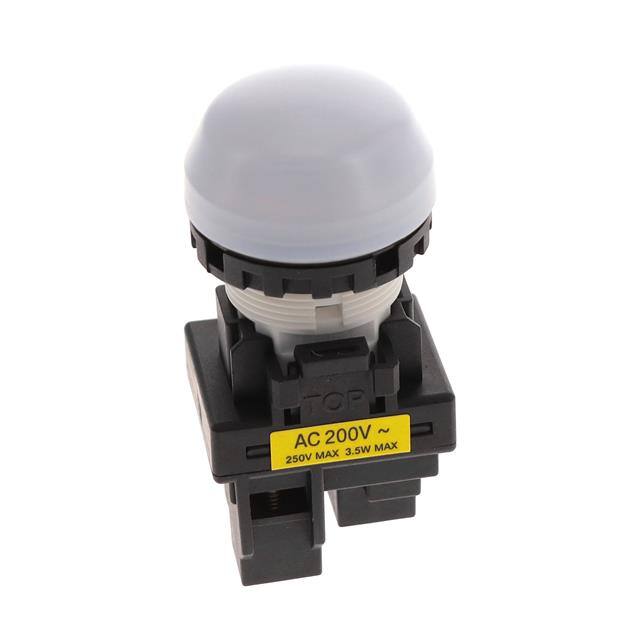

M22N-BG-TWA-WELED PANEL INDICATOR WHITE 230VAC |
4,984 |
|
Datasheet | M22N | Bulk | Active | LED | White | White | Clear | AC | 230V | 2mA | Round | 0.88" (22.30mm) | - | Round with Domed Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
