Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q12-7P1CXXHG12ELED INDICATOR 12.7MM PROMINENT H |
1,061 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 1560mcd | - | - | Solder Lug | IP67 | - |
|
657-1465-303FPMI, FLAT, BG, 10-30VDC |
4,833 |
|
Datasheet | 657 | Bulk | Active | LED | Blue, Green | White | Diffused | DC | 10V ~ 30V | 20mA | Round | 0.69" (17.46mm) | 16.50mm Dia | Round with Flat Top | 90mcd Blue, 515mcd Green | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
0035.0607LED REFLECT INTERNAL 24V 5MM RED |
3,371 |
|
Datasheet | LFM | Bulk | Active | LED | Red | - | - | DC | 24V | 10mA | Round | 0.33" (8.38mm) | 5mm, T-1 3/4 | Round with Domed Top | - | - | - | Solder Lug | IP67 | - |
|
Q14P1CXXSB24ELED INDICATOR 14MM PROMINENT 24V |
4,057 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Colorless | Clear | DC | 24V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 2500mcd | - | - | Solder Lug | IP67 | - |
|
Q14P3BXXHR110ELED PMI PROMINENT 110VAC RED |
3,018 |
|
Datasheet | Q14 | Bag | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 2800mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F1ABXXB24EINDICATOR 24V 14MM FLUSH BLUE |
2,238 |
|
Datasheet | Q14 | Bag | Active | LED | Blue | - | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 100mcd | - | - | Solder Lug | IP67 | - |
|
XB7EV63PHARMONY XB7, MONOLITHIC PILOT LI |
1,844 |
|
Datasheet | Harmony XB7 | Box | Active | Incandescent | - | Green | - | DC | 250V | - | Round | 0.89" (22.50mm) | 29.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | IP20, IP54, NEMA 12 | - |
|
5571503803FLED MINI PANEL RED 12V W/CONN |
3,895 |
|
- |
557 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DX0505/RD/00LED PANEL INDICATOR RED 1.85V |
3,840 |
|
Datasheet | DX0505 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 1.85V | 30mA | Round | 0.48" (12.10mm) | - | Round with Flat Top | 2000mcd | - | - | Solder Lug | IP67 | - |
|
6303704304F30MM DOM YL 24VDC W/TERM |
4,650 |
|
Datasheet | 630 | Bag | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 1300mcd | - | - | Screw Terminal | - | - |
|
657-2495-303FPMI, DOME, GRY, 10-30VDC |
1,768 |
|
Datasheet | 657 | Bag | Active | LED | Green, Red, Yellow | White | Diffused | DC | 10V ~ 30V | 20mA | Round | 0.69" (17.46mm) | 16.50mm Dia | Round with Domed Top | 500mcd Green, 255mcd Red, 260mcd Yellow | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|

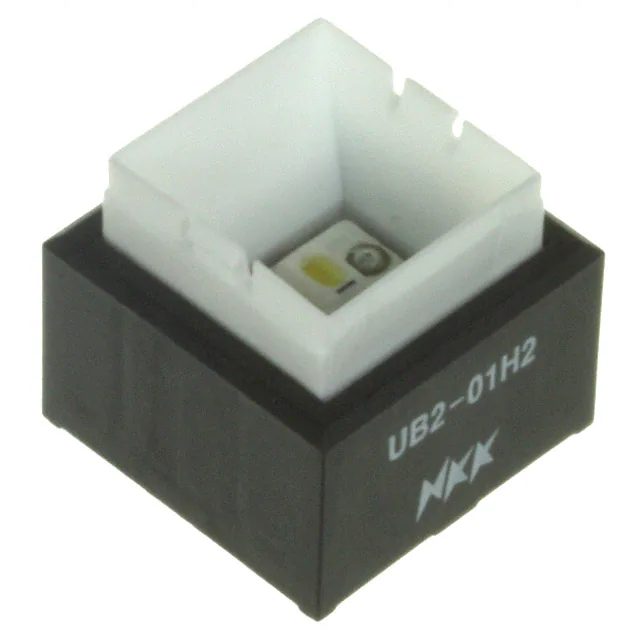

UB201KW036BINDICATOR PB SQ SUPER BRGHT WHT |
3,817 |
|
Datasheet | UB2 | Box | Active | LED | White | - | - | Vf (Typ), If (Max) | 3.3V | 20mA | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
UB201KW036GINDICATOR PB SQ SUPER BRGHT BLUE |
2,948 |
|
Datasheet | UB2 | Box | Active | LED | Blue | - | - | Vf (Typ), If (Max) | 3.6V | 30mA | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
Q14F3BXXSB220EFLUSH BLACKBEZ SUPER BRBLUE 220V |
1,214 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Blue | Diffused | AC | 220V | 3mA | Round | 0.55" (14.00mm) | 16.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
XB7EV73PPILOT LIGHT, HARMONY XB7, ROUND |
1,819 |
|
Datasheet | Harmony XB7 | Box | Active | Incandescent | - | Green | - | AC | 230V | - | Round | 0.89" (22.50mm) | 29.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | IP20, IP54, NEMA 12 | - |
|
|
5571603803FLED MINI PANEL GREEN 12V |
1,917 |
|
- |
557 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M16-AW-5DPILOT LIGHT 5V LED SQUARE WHITE |
2,550 |
|
Datasheet | M16 | Bulk | Active | LED | White | White | Diffused | DC | 5V | 8mA | Round | 0.63" (16.00mm) | 15.10mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - |
|
Q14P5CXXHR12ELED INDICATOR 14MM PROMINENT CHR |
4,178 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 2800mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F5BXXB12EINDICATOR 8MM PM FLUSH BLUE POTT |
2,747 |
|
Datasheet | Q8 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12-7F5BXXHY12ELED INDICATOR 12.7MM FLUSH BLACK |
4,047 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
