Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6561322303F1/2" FLT Y/G 5VDC W/LEAD |
1,799 |
|
Datasheet | 656 | Bag | Active | LED | Green, Yellow | - | Clear | DC | 5V | 8mA Green, 11mA Yellow | Round | 0.50" (12.70mm) | - | Round with Flat Top | 864mcd Green, 320mcd Yellow | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
5087545504HOLDER W/COLLAR SOLDER CUPS |
1,980 |
|
Datasheet | 508 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5571422203FLED PNL MT BI-COLOR RED/BLUE 5V |
1,927 |
|
Datasheet | 557 | Bulk | Active | LED | Blue, Red | - | - | DC | 5V Blue, 5V Red | 16mA Blue, 16mA Red | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | - | - |
|
5571432203FLED PNL MT BI-COLOR YLW/GRN 5V |
1,519 |
|
Datasheet | 557 | Bulk | Active | LED | Green, Yellow | - | - | DC | 5V Green, 5V Yellow | 16mA Green, 16mA Yellow | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | - | - |
|

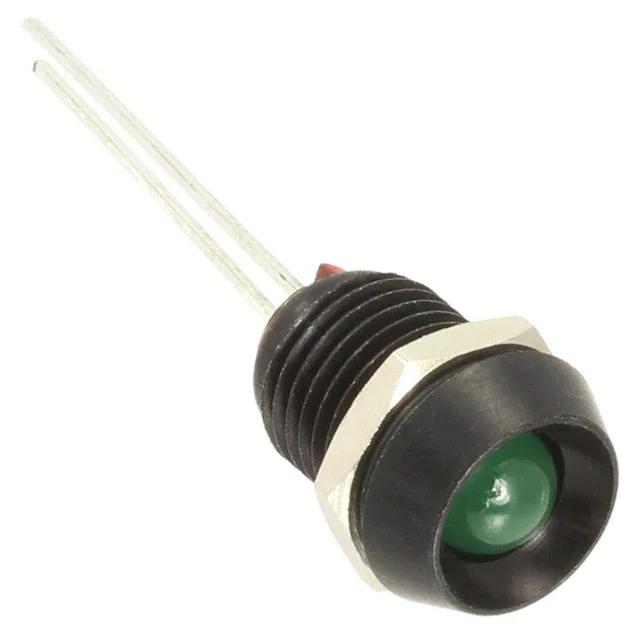

DX1090/GNLED PANEL INDICATOR GREEN 2V |
3,407 |
|
Datasheet | DX1090 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2V | 25mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | - | - | PC Pin | IP66 | - |
|
6211122304F22MM FLTPMI RGB 6VDC W/TERM |
4,197 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Blue (RGB) | - | Diffused | DC | 6V | 15mA Red, 15mA Green, 15mA Blue | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd Red, 250mcd Green, 300mcd Blue | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
DX1093/YLLED PANEL INDICATOR YLW 2.1V |
100 |
|
Datasheet | DX1093 | Bulk | Active | LED | Yellow | - | - | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | - | - | PC Pin | IP66 | - |
|
Q14P1CXXB24EINDICATOR 24V 14MM PROMINENT BLU |
2,900 |
|
Datasheet | Q14 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 540mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q8F1BXXB110EINDICATOR 110V 8MM FLUSH BLUE |
4,728 |
|
Datasheet | Q8 | Bulk | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 200mcd | - | 100° | Solder Lug | IP67 | - |
|
QH22L28RC22MM L/HALO BLACK BODY TINTED LE |
3,329 |
|
Datasheet | QH | Bag | Active | LED | Red | Red | Clear | DC | 12V ~ 26.4V | 4.2 ~ 20mA | Round | 0.866" (22.00mm) | 55.00mm Dia | Ring with Domed Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8R3CZZRYG12ELED PMI RECESSED GR/RD/YLW |
2,745 |
|
Datasheet | Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 12V Green, 12V Red, 12V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd Green, 60mcd Red, 13mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6R7CXXB02ELED PM INDICATOR RECESSED BLUE |
2,377 |
|
Datasheet | Q6 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.8V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 1200mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12P1BXXB24EINDICATOR 24V 12MM PROMINENT BLU |
2,203 |
|
Datasheet | Q12 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 800mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
CNX718N20012TLED 18MM RED 12V TAB PNL MNT |
2,507 |
|
Datasheet | CNX718 | Bulk | Active | LED | Red | Clear | Fresnel | DC | 12V | - | Round | 0.69" (17.53mm) | 18.50mm Dia | Round with Domed Top | 2800mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
DX1093/TRLED PANEL IND AMB/GRN/RED 2.4V |
2,942 |
|
Datasheet | DX1093 | Bulk | Active | LED | Amber, Green, Red | - | - | Vf (Typ), If (Max) | 2.4V Amber, 2.4V Green, 2.4V Red | 30mA Amber, 30mA Green, 30mA Red | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 2.5mcd Amber, 2.5mcd Green, 2.5mcd Red | - | - | PC Pin | IP66 | - |
|
101843009203LED BASE SUBMINI PANEL INDICATOR |
2,987 |
|
Datasheet | 101 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Q8P1CXXHG24E8MM PRMNT CHRM HYPR GRN 24VDC |
1,844 |
|
Datasheet | Q8 | Tray | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.32" (8.13mm) | - | Round with Domed Top | 1900mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
84-8001.5620INDICATOR PANEL LED GRN 24V |
3,563 |
|
Datasheet | 84 | Bulk | Active | LED | Green | Green | - | DC | 24V | 10mA | - | - | - | - | - | - | - | Plug In | - | - |
|
Q14P1CXXHW02E14MM PRMNT CHRM HYPR WHT 2VDC |
1,303 |
|
Datasheet | Q14 | Tray | Active | LED | White | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.55" (13.97mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F3BXXB12ELED PM INDICATOR FLUSHED BLUE |
2,878 |
|
Datasheet | Q14 | Bag | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
