Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01069CABLE 7COND 26AWG BLACK SHLD 5M |
4,862 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 7 | 26 AWG | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Foil, Braid | 16.40' (5.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00019CBL COIL SHLD 3C 18AWG 2230MM |
4,402 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 3 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00407CABLE 2COND 26AWG BLACK 30M |
2,907 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.106" (2.69mm) | - | 98.43' (30.00m) | Black | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

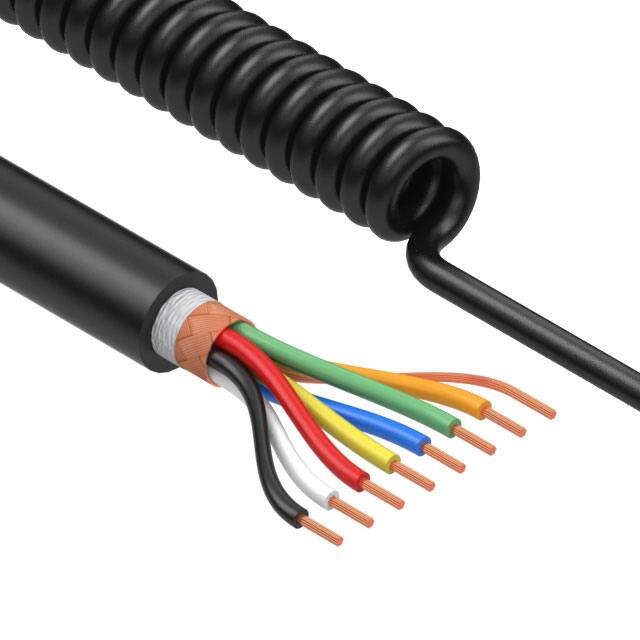

31-00097CBL COIL SHLD 7C 22AWG 2230MM |
2,364 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 7 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01207CABLE 10COND 32AWG BLK SHLD 5M |
4,667 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 10 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | 16.40' (5.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01017CABLE 3COND 22AWG BLACK SHLD 5M |
4,148 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | 16.40' (5.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01570CABLE 3COND 22AWG BLACK SHLD 5M |
1,518 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | Foil, Braid | 16.40' (5.00m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00108CBL COIL SHLD 8C 18AWG 1115MM |
2,321 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 8 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.323" (8.20mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
.jpg)
|
30-00531CABLE 10COND 24AWG BLACK 5M |
4,782 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 10 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00154CBL COIL SHLD 10C 24AWG 2230MM |
3,914 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 10 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.264" (6.71mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
