Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01142CABLE 6COND 28AWG WHITE SHLD |
4,173 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

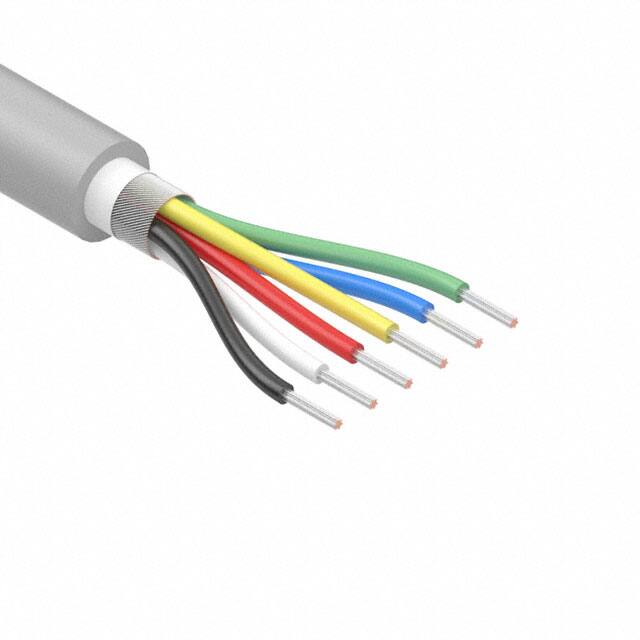

30-01143CABLE 6COND 28AWG GRAY SHLD |
2,312 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01700CABLE 9COND 26AWG BLACK |
2,040 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 26/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.252" (6.40mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-03241CABLE 10COND 30AWG BLACK SHLD |
2,265 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 30 AWG | 10/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02371CBL 6CON 26AWG BLK TPU |
4,204 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.185" (4.70mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|

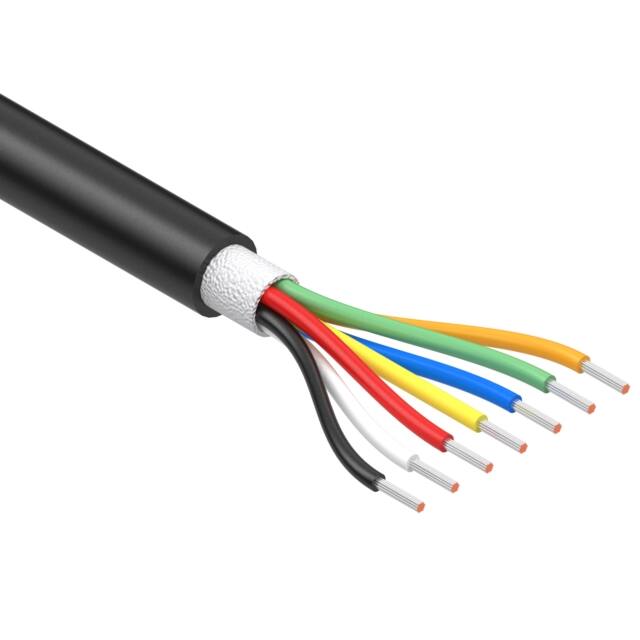

30-02021CABLE 7COND 32AWG BLACK |
2,264 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 32 AWG | 7/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.150" (3.81mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0094" (0.240mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-00393CABLE 4COND 26AWG WHITE 1M |
3,577 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | - | 3.28' (1.00m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00392CABLE 4COND 26AWG BLACK 1M |
3,913 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01630CABLE 10COND 30AWG BLACK SHLD |
2,306 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 30 AWG | 7/0.0039" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-03255CABLE 14COND 30AWG BLACK SHLD |
4,817 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 14 | 30 AWG | 10/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0327" (0.831mm) | Poly-Vinyl Chloride (PVC) | - |
